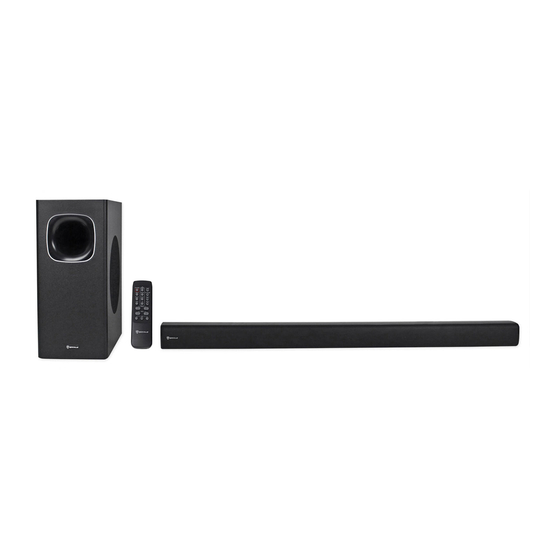

40'' 400w soundbar w/wireless subwoofer, bluetooth, hdmi, and optical

Advertisement

OWNER'S MANUAL
ROCKBAR
40˝ 400W SOUNDBAR w/WIRELESS SUBWOOFER,
BLUETOOTH, HDMI, and OPTICAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROCKBAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockville ROCKBAR

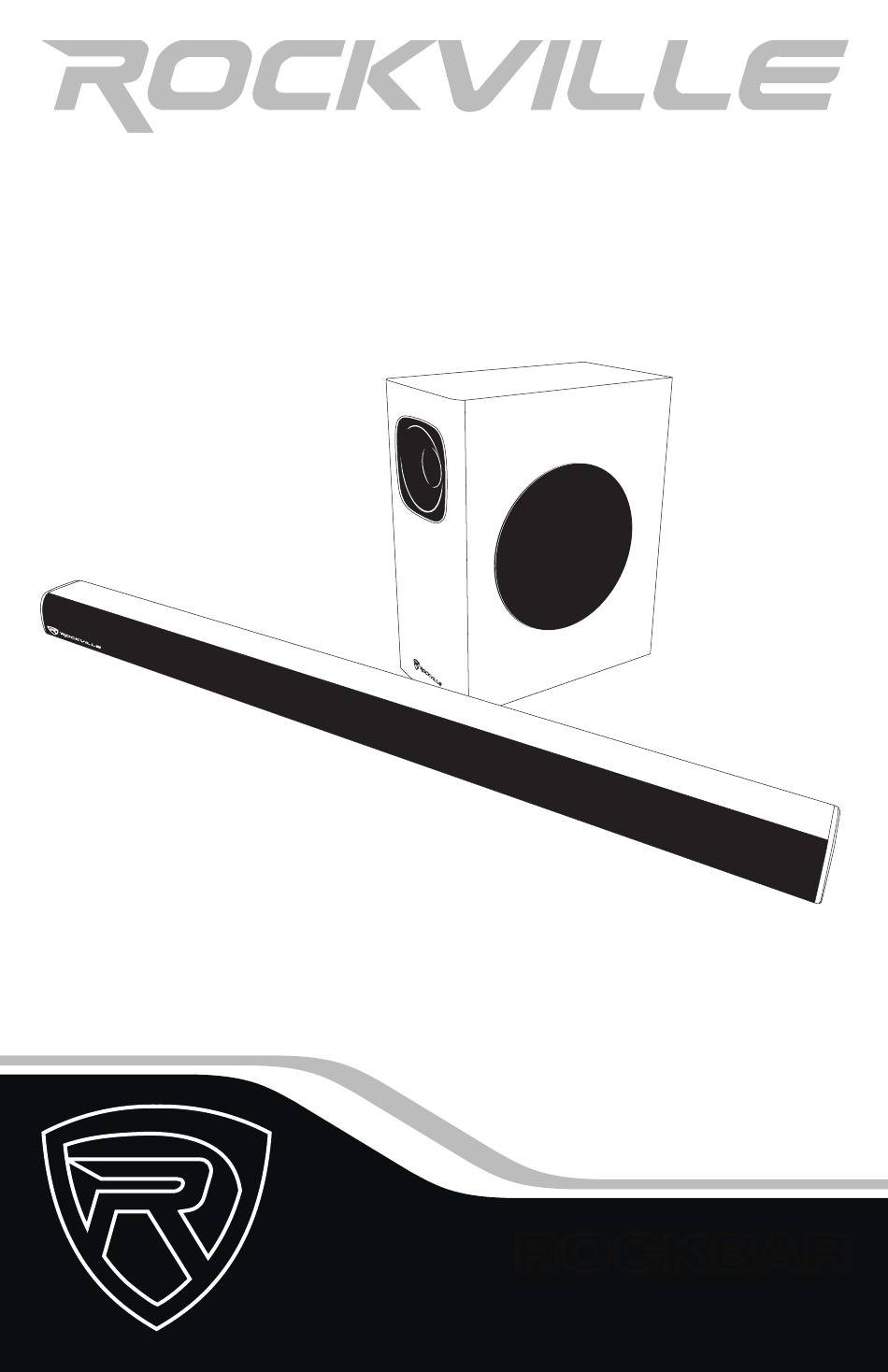

  • Page 1 OWNER’S MANUAL ROCKBAR 40˝ 400W SOUNDBAR w/WIRELESS SUBWOOFER, BLUETOOTH, HDMI, and OPTICAL...
  • Page 3: Important Safety Instructions

    ROCKBAR Thank you for purchasing this Rockville product. Please read this installation guide care- fully for proper use of your Rockville ROCKBAR 40" Soundbar. Should you need technical assistance please call our technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
  • Page 4 FUNCTIONS Sound bar Subwoofer 1. Display 2. Mounting brackets 3. AUX input 4. Optical input 5. HDMI (ARC) 6. AC Power input: 110/230v~60/50Hz 7. Power/Standby button 8. Volume up 9. Volume down 10. USB input 11. LED pairing indicator 12. WPS auto pair button 13.
  • Page 5 ROCKBAR Remote Control 1. Preset EQ: Music, Movie, News, 3D 2. Press for power-on or stand-by mode 3. Press to stop playback in USB mode 4. Select input source: AUX, Optical, HDMI (ARC), BT, and USB 5. Play/pause in USB/BT modes 6.
  • Page 6: Operation

    1. Power-on the ROCKBAR by connecting it to an AC power source. Press the Power/ Standby button on the side of the ROCKBAR or on the remote control. The LCD display will read "bt" and the letters will flash steadily.
  • Page 7 4. To exit USB mode you can remove your USB flash drive or press the Power/Standby button on the side of the ROCKBAR to select another mode. To return to USB mode plug in a USB flash drive or press the Power/Stand-by button until the LCD display shows the letters "US".
  • Page 8: Mounting Instructions

    MOUNTING INSTRUCTIONS Measure the distance between the center holes on the wall brackets (fig A). Once you've selected your mounting location, drill two holes at the same distance as the holes on the wall brackets. We recommend using wall anchors (fig B) or drilling into a stud. If you are using an- chors, make sure the holes are deep enough to accommodate them.
  • Page 9 ROCKBAR FEATURES • 40" 400w Soundbar w/Wireless Subwoofer/Bluetooth/HDMI/Optical • 400 Watts peak power/160 Watts RMS power (continuous) • Seamlessly pairs with included wireless subwoofer • Built-in Bluetooth wireless audio streaming with long range and distortion free playback • USB input plays back music stored on a thumb drive (up to 32 Gb) •...
  • Page 10: Troubleshooting

    Subwoofer pairing fails 1. Check that both units are plugged in and turned-on. 2. Ensure the Rockbar is not in stand-by mode. 3. Make sure that the Rockbar and sub- woofer are within 33 ft (10 m) of each other.
  • Page 11: Federal Communications Commission Compliance Information

    Address: 600 Bayview Ave, Entrance A, Inwood, NY 11096 Hereby declares that the product Rockville ROCKBAR complies with FCC rules as men- tioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 12 RockvilleAudio.com © 2017 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
