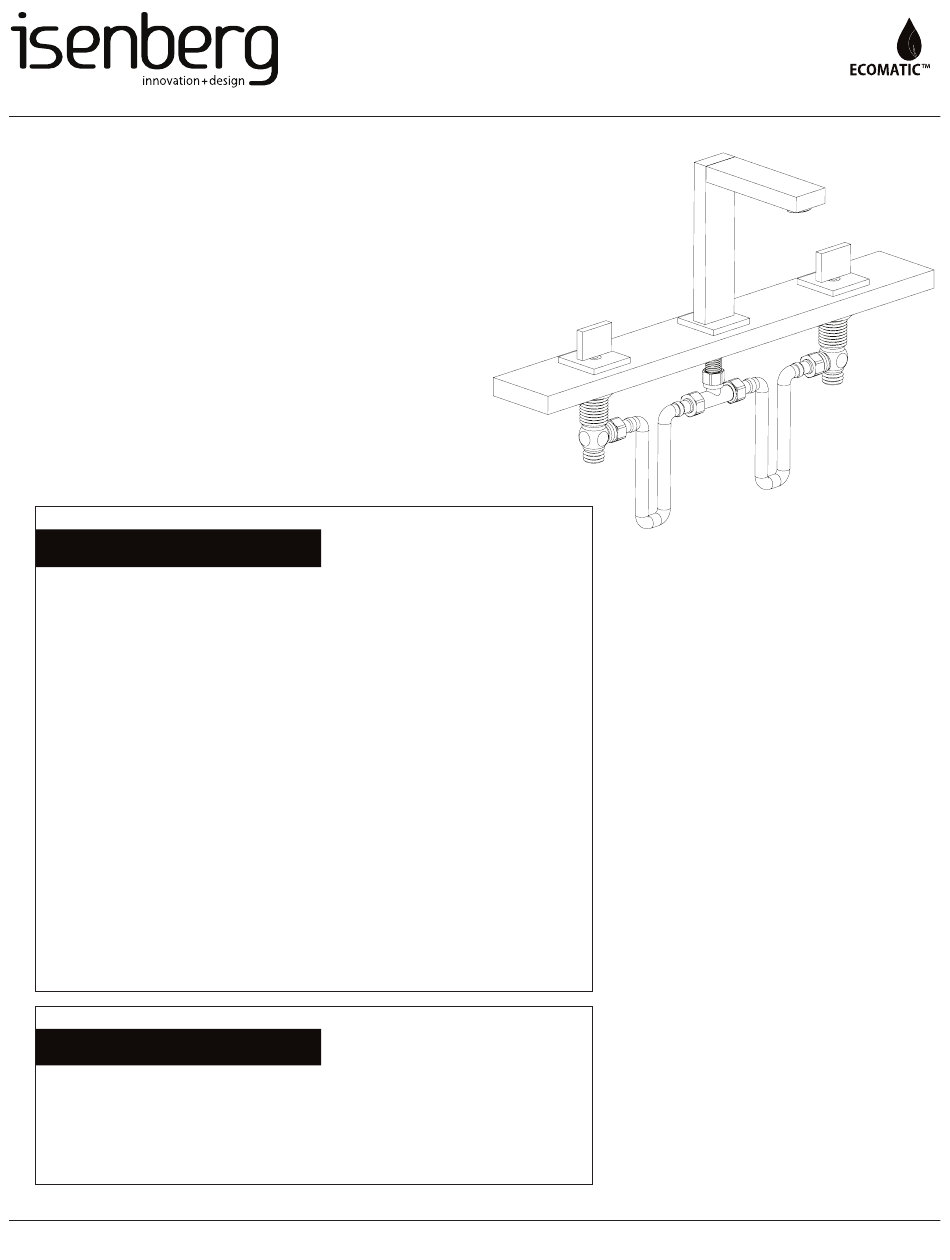

Installation Manual For 160.2000
8" Widespread Lavatory Faucet
NOTICE TO HOMEOWNER
• We recommend that this product is installed by a qualified
professional plumber.
• Please check this product immediately to ensure that it has
not been damaged and is complete. Before installation, please
make sure this product is the correct model and you have all
the parts required for installation and use.
• Please flush the water system to ensure that no metal swarf,
solder, and other imputities can enter the product.
• Turn off water supply before commencing work.
• Please read these instructions carefully and retain for future
reference.
BEFORE YOU BEGIN
• You must observe all local plumbing laws and codes.
• Do not instal valve if it does not meet local plumbing codes.
• Shut off the main water supply.
Ver. 2.53
www.isenbergfaucets.com
Made For Responsible Luxury
Advertisement
Table of Contents
Related Manuals for Isenberg ECOMATIC 160.2000
Summary of Contents for Isenberg ECOMATIC 160.2000
- Page 1 Made For Responsible Luxury Installation Manual For 160.2000 8” Widespread Lavatory Faucet NOTICE TO HOMEOWNER • We recommend that this product is installed by a qualified professional plumber. • Please check this product immediately to ensure that it has not been damaged and is complete. Before installation, please make sure this product is the correct model and you have all the parts required for installation and use. • Please flush the water system to ensure that no metal swarf, solder, and other imputities can enter the product. • Turn off water supply before commencing work. • Please read these instructions carefully and retain for future reference. BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not instal valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver.
- Page 2 Made For Responsible Luxury Installation Manual For 160.2000 8” Widespread Lavatory Faucet TABLE OF CONTENTS OPERATING SPECIFICATIONS . . . . . . . . . . . . . . . 3 INSTALLING THE HOT & COLD HANDLES . . . . . . . . . . . . 4 INSTALLING THE TUB SPOUT . . . . . . . . . . . . . . . 6 INSTALLING THE HOSES . . . . . . . . . . . . . . . . 7 Ver.
- Page 3 Made For Responsible Luxury OPERATING SPECIFICATIONS WATER TEMPERATURE WATER PRESSURE This product is to be used with water This product is to be used with a water at a temperature range of 40° F - 120° F pressure range of 15 PSI to 80 PSI ONLY ONLY! If water pressure is greater than 80 PSI, install a pressure reducer valve (PRV)
- Page 4 Made For Responsible Luxury INSTALLING THE HOT & COLD HANDLES Remove handle from valve IInstall nut and washers onto valve Insert valve into 1-3/8” hole from below the deck Install body from top of deck and twist to tighten Ver. 2.53 www.isenbergfaucets.com...
- Page 5 Made For Responsible Luxury INSTALLING THE HOT & COLD HANDLES Tighten nut and screws from bottom of deck Twist to verify smooth operation Ver. 2.53 www.isenbergfaucets.com...
- Page 6 Made For Responsible Luxury INSTALLING THE TUB SPOUT The spout is seen above Remove T-fitting Insert spout into deck hole, then insert washer and tighten retaining nut & T-fitting Ver. 2.53 www.isenbergfaucets.com...
- Page 7 Made For Responsible Luxury INSTALLING THE HOSES Connect Hot-side connection Connect Cold-side connection Ver. 2.53 www.isenbergfaucets.com...
