Bioenno Power SC-122420JUD CC Series User Manual

Bioenno Power SC-122420JUD CC/CV Series User Manual
CC/CV SOLAR CHARGE CONTROLLER FOR LFP
THIS CONTROLLER IS FOR USE WITH LITHIUM IRON PHOSPHATE BATTERIES AND SLA/AGM BATTERIES
ONLY
OVERVIEW
Thank you for choosing the Bioenno Power SC-122420JUD Series CC/CV Solar Charge Controller. Your
product comes in 20A Maximum Load Current and is designed to be used with Lithium Iron Phosphate
(also commonly known as LiFePO4 or LFP) batteries only. The controller uses our proprietary CC/CV
Constant Current/ Constant Voltage circuitry to ensure maximum compatibility and performance with the

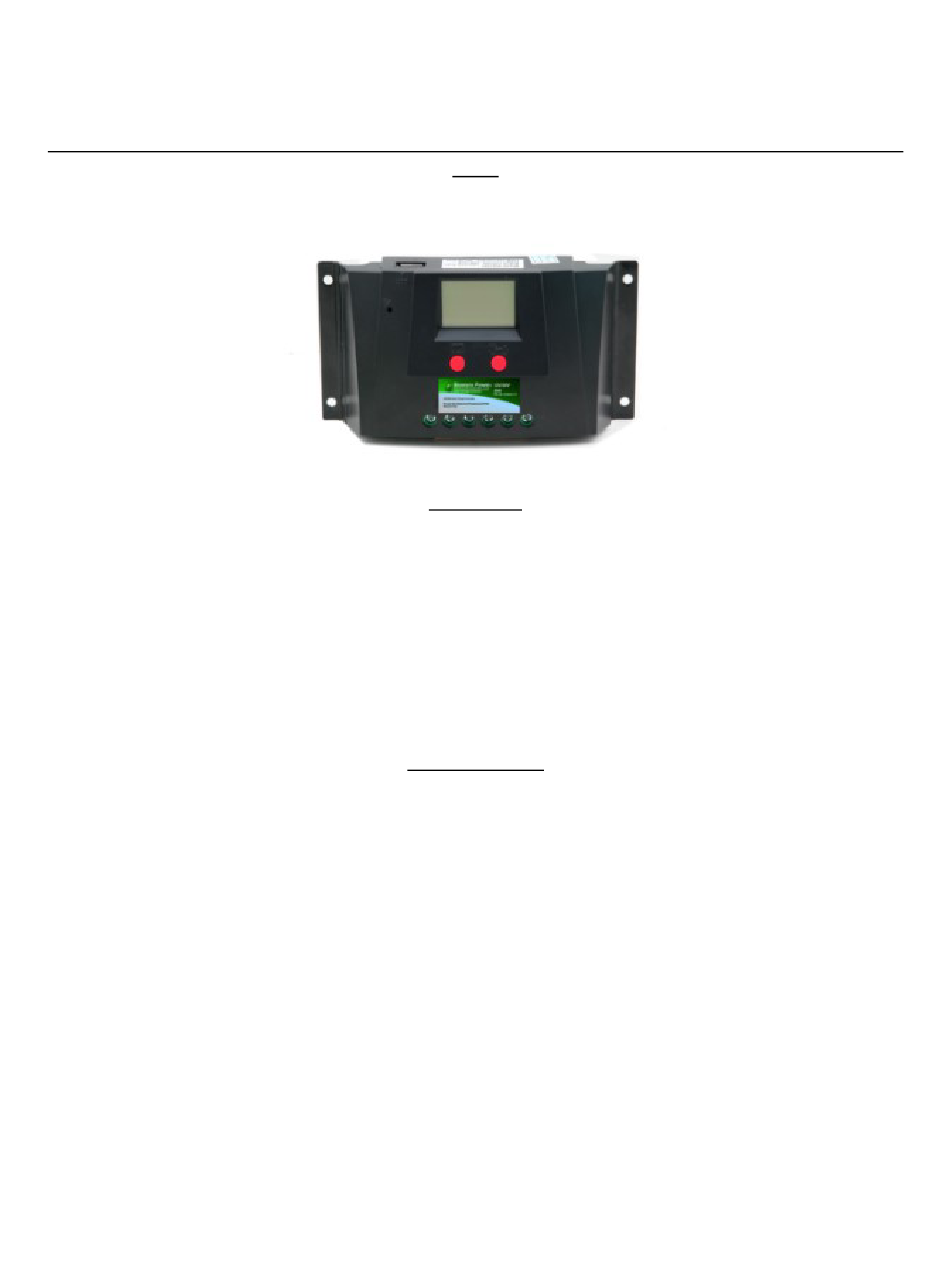

Bioenno Power battery. Your Solar Charge Controller comes equipped with an LCD display with a visual
presentation of usage status for your solar system and additionally features our smart technology chipset
which allows your Solar Charge Controller to automatically function at the correct mode of operation as
well as the ability to manually adjust between different modes of operation and load power delivery.
SPECIFICATIONS
Rated Voltage: 12V/24V
Maximum Load Current: 20A
Input Voltage Range: <50V*
Float/Absorption: 14.4V~27.6V
Load Disconnect: 10.7V/21.4V
Efficiency: 95%~97% (In optimum conditions)
Operation Temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Dimensions: 6.5 in. x 3.46 in. x 1.5 in. (166 mm x 88 mm x 38 mm)
Weight: 0.59 lbs. (0.27 kg)
*Note: This solar charge controller can accept any voltage under 50V but it will not boost the voltage if the panel voltage is less
than the battery voltage. Make sure your panel voltage is higher than your battery voltage for optimum performance.
