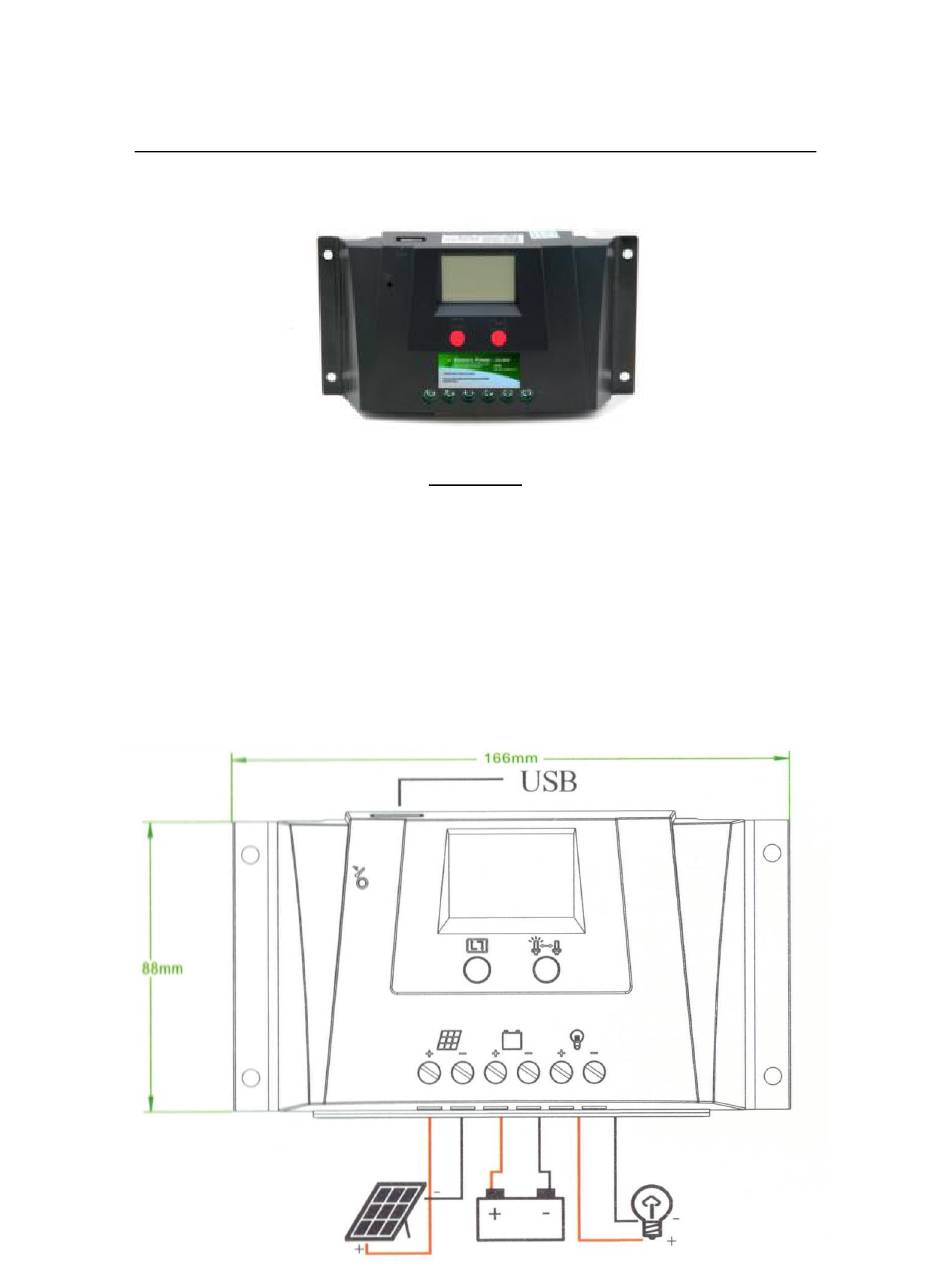

Bioenno Power SC-122420JUD CC/CV Series User Manual
CC/CV SOLAR CHARGE CONTROLLER FOR LFP
THIS CONTROLLER IS FOR USE WITH LITHIUM IRON PHOSPHATE BATTERIES ONLY

OVERVIEW

Thank you for choosing the Bioenno Power SC-122420JUD Series CC/CV Solar Charge Controller. Your
product comes in 20A Maximum Load Current and is designed to be used with Lithium Iron Phosphate
(also commonly known as LiFePO4 or LFP) batteries only. The controller uses our proprietary CC/CV
Constant Current/ Constant Voltage circuitry to ensure maximum compatibility and performance with
the Bioenno Power battery. Your Solar Charge Controller comes equipped with an LCD display with a
visual presentation of usage status for your solar system and additionally features our smart technology
chipset which allows your Solar Charge Controller to automatically function at the correct mode of
operation as well as the ability to manually adjust between different modes of operation and load
power delivery.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-122420JUD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Bioenno Power SC-122420JUD Series

  • Page 1 Constant Current/ Constant Voltage circuitry to ensure maximum compatibility and performance with the Bioenno Power battery. Your Solar Charge Controller comes equipped with an LCD display with a visual presentation of usage status for your solar system and additionally features our smart technology...
  • Page 2 These are the icons you should expect to see and engage with under While you can safely attach your load Bioenno Power recommended usage to the load port, we do not conditions. These icons reflect the recommend using the load port to state of function of your Solar Panel support your device(s).
  • Page 3 SPECIFICATIONS Rated Voltage: 12V/24V Maximum Load Current: 20A Input Voltage Range: <50V* Float/Absorption: 14.4V~27.6V Load Disconnect: 10.7V/21.4V Efficiency: 95%~97% (In optimum conditions) Operation Temperature: -4°F ~ 122°F (-20°C ~ 50°C) Dimensions: 6.5 in. x 3.46 in. x 1.5 in. (166 mm x 88 mm x 38 mm) Weight: 0.59 lbs.
  • Page 4 10-20 minutes, the internal fuse will automatically reset during this period. Before resuming operation, confirm your load does not exceed the 20A Maximum Load Current of your Solar Charge Controller. Contact Us Mail: Bioenno Power E-mail: sale@bioennopower.com 3657 W. McFadden Ave. Phone: +1 888 336-7864...
  • Page 5 SC-122420JUD CONTROLLER ADDENDUM This is an addendum to the user manual. By default the SC-122420JUD is set to charge LiFePO4 batteries. To charge other battery chemistries, do the following: 1) Press the Menu (left red) button until “b00” shows on the display 2) Hold down the Menu (left red button) for 5 seconds, until the “b00”...
