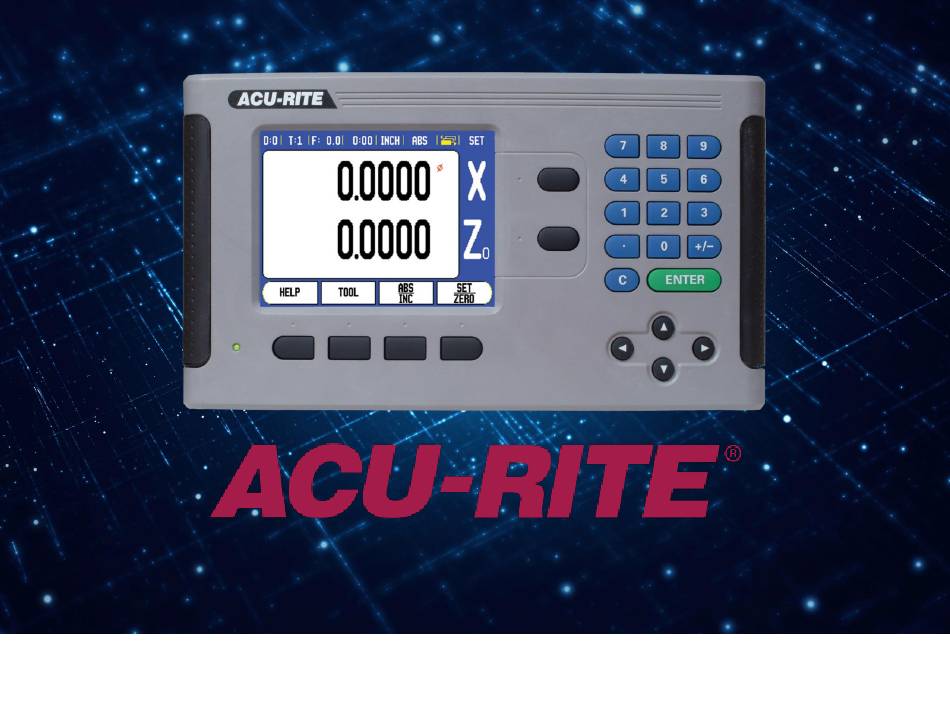

300S
Step-by-Step Instructions for Changing the Count Direction

Advertisement

loading
Need help?

Need help?

Do you have a question about the 300S and is the answer not in the manual?

Questions and answers

Related Manuals for ACU-RITE 300S

Summary of Contents for ACU-RITE 300S

  • Page 1 300S Step-by-Step Instructions for Changing the Count Direction...
  • Page 2 300S: Changing Count Direction Start with the unit off. Or turn it off and wait 10 seconds before you turn it back on.
  • Page 3 300S: Changing Count Direction From the home screen, press the key.
  • Page 4 300S: Changing Count Direction To change the count direction you don’t need to reference the scale, so press the “NO REF” soft key.
  • Page 5 300S: Changing Count Direction When the axis is moved in the positive direction, the DRO shows a negative number. Here’s how to change it.
  • Page 6 300S: Changing Count Direction Soft Menu Press the soft key until the first soft key menu space reads “SETUP.”...
  • Page 7 300S: Changing Count Direction Press the “SETUP” soft key.
  • Page 8 300S: Changing Count Direction Press the “INSTALL SETUP” soft key.
  • Page 9 300S: Changing Count Direction The DRO asks you for a “PASSCODE.” Use the number soft keys and press:...
  • Page 10 300S: Changing Count Direction Press...
  • Page 11 300S: Changing Count Direction “ENCODER SETUP” should be highlighted. If it isn’t, use the down “ENTER.” arrow soft keys to highlight it, and then press...
  • Page 12 300S: Changing Count Direction Use the u p orown arrow soft keys to highlight the input axis “ENTER.” you want to change. Then press...
  • Page 13 300S: Changing Count Direction This icon shows you how many pages there are in this function and which page you are on. arrow soft keys to highlight the “COUNT DIRECTION” Use the u p orown box (shown on the next page).
  • Page 14 300S: Changing Count Direction Press the “POSITIVE / NEGATIVE” soft key once to change the “ENTE R” count direction, and then press to save your change.
  • Page 15 300S: Changing Count Direction “ C” Press the soft key as many times as needed to return to the home screen.
  • Page 16 300S: Changing Count Direction Your DRO should now display the correct count direction for your scale.
