Clinton Electronics IDX Series Install Manual

IDX Series [IR] Install Guide
For IR LED Equipped Cameras: IDX18(B) • IDX30(B) • IDX50(B)

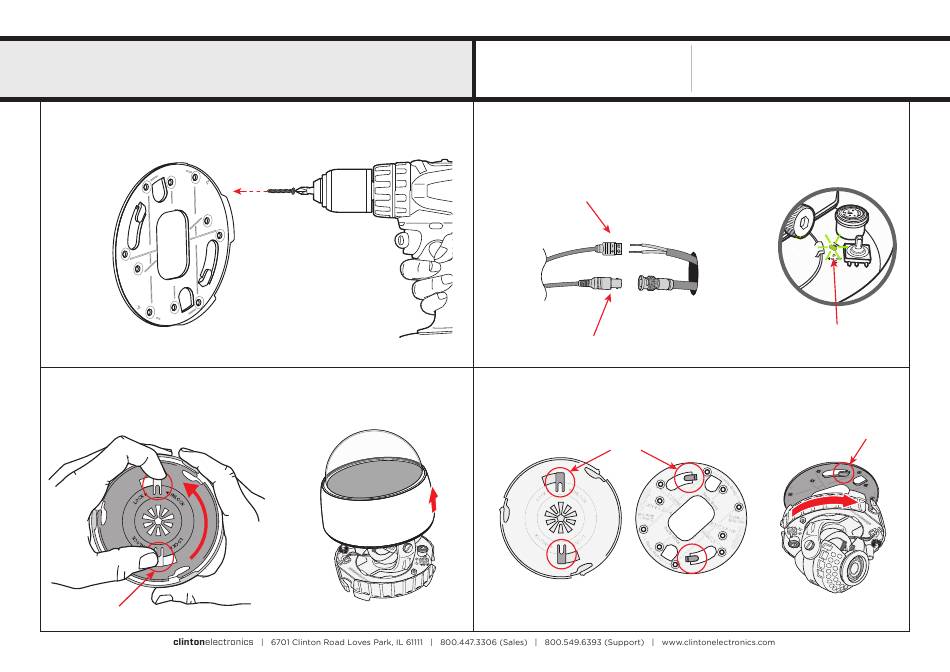

1. INSTALL MOUNTING PLATE
Secure the Mounting Plate to a compatible conduit box (Single Gang, Double Gang, 3-1/4" & 3-1/2", or 4"
Oct/Rd) using the screws that came with the conduit box, or mount to a solid surface using the 4 screws
included with this camera.
NOTE: It is recommend to use drywall anchors if mounting to drywall. Drywall anchors not included.
2. REMOVE DOME COVER
Hold the dome cover with one hand while gripping the finger grip tabs on the bottom of the camera base.
Turn the finger grip tabs (camera base) counter-clockwise to separate it from the dome cover.
FINGER GRIPS
*Information in this document
is subject to change without notice
Included Items:
• IDX Series Camera x 1 • Instructions x 1
• Mounting Plate x 1 • Test Monitor BNC Lead x 1
• 4x20mm Screws x 4
3. CONNECT CABLES
Make connections to the BNC cable and the power connection. Feed any cable slack into the mounting
surface. A green LED (near the OSD Joystick and DIN Connection Port) will light up on the circuit board
when the camera is receiving power. To ensure quality operation, verify proper BNC and power termina-
tion, along with proper voltage at camera.
POWER
CONNECTION
TO CAMERA
VIDEO
CONNECTION
4. ATTACH CAMERA TO MOUNTING PLATE
Attach the camera to the mounting plate by aligning the hooks on the mounting plate to the tabs on the
camera base. Twist the camera base clockwise to lock it in place.
ALIGN
CAMERA BASE MOUNTING PLATE
Required Items:
• Phillips Head Screwdriver or Drill with Phillips Head Bit
Optional Items:
• CE-REMOTE (OSD Remote Control)
TO DVR
OR
MONITOR
GREEN LED
POWER INDICATOR
HOOK
