3.2 Main Screen Icons

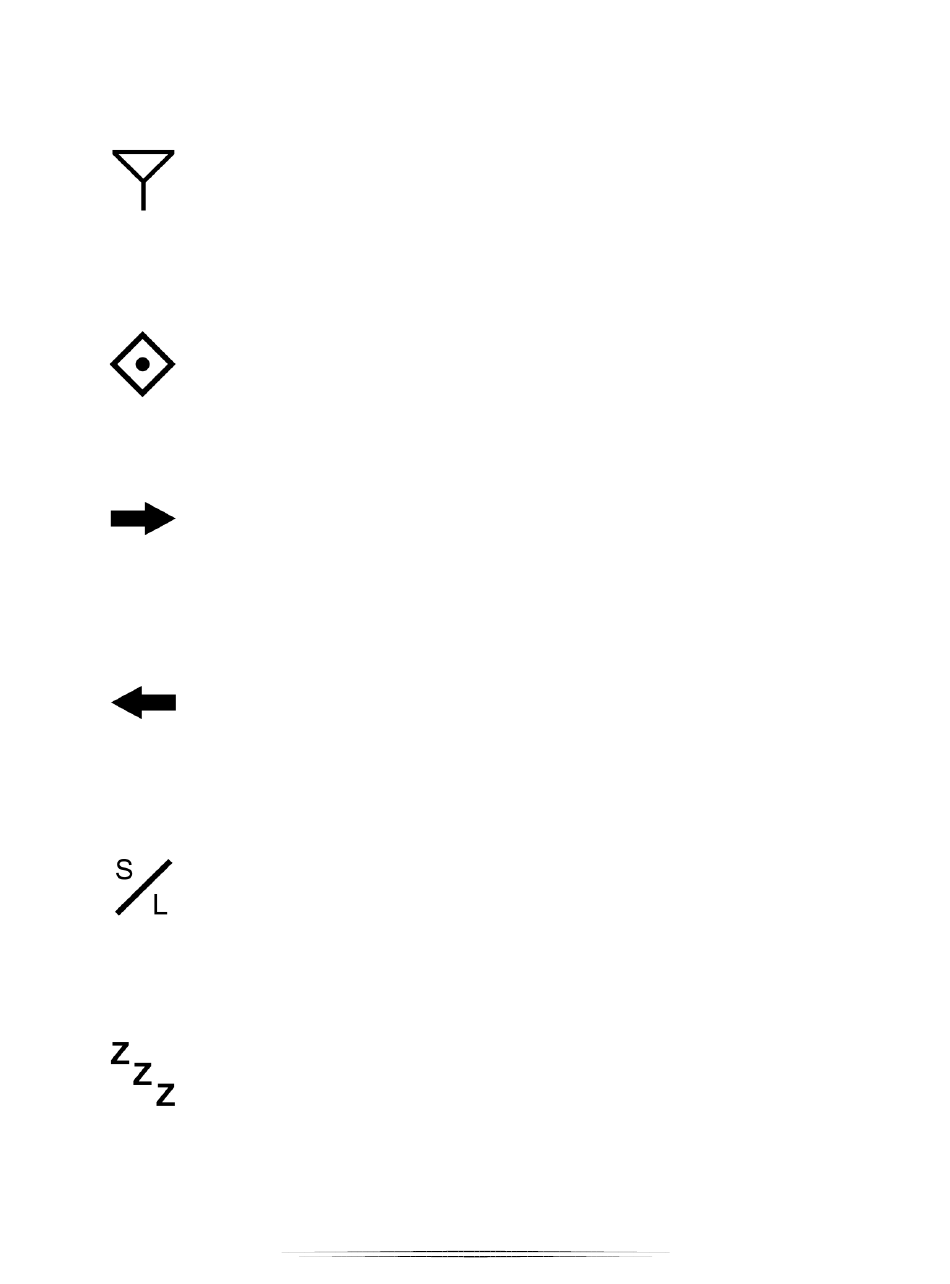

The Scout Receiver will display different icons depending on what features you have turned on.
Wireless is turned on. If using hard-wired flashes you should turn wireless off. See section
"4.2.5.1 - Wireless Settings" for details.
LED Alignment is turned on. The red LED on the front of the receiver will flash when it receives
infrared from a transmitter. See section "4.2.1 - LED Alignment".
Directional triggering is turned on. The current direction is for the subject moving from left to
right. See section "4.2.4 - Trigger Settings".
Directional triggering is turned on. The current direction is for the subject moving from right to
left. See section "4.2.4 - Trigger Settings".
The "shot limiter" is active and is preventing the receiver from firing the camera. See section
"4.2.5.7 - Shot Limit" for details. You can tap the power button to reset the shot limit.
The receiver will not fire the camera because the current time is outside either of the two time
windows. See section "4.2.5.3 - Time Settings".
