Summary of Contents for Musicom Lab Parallelizer

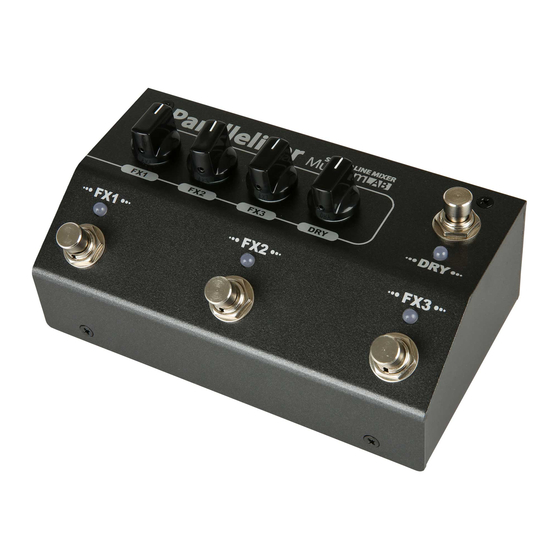

- Page 1 Parallelizer Stereo Line Mixer OWNER'S MANUAL Version 1.0x...
- Page 2 Parallelizer is a parallel effect loop system that has 3 Mono SENDs and can mix 3 Stereo RETURNs and dry signal. You can preserve your dry signal by using the Parallelizer, which can result in loss of dry signal when using the digital effect pedals or when connecting the effect pedals in series.
-
Page 3: Operation Mode
MIDI IN connector receives MIDI messages from an external MIDI device. DC9V Power Connector This is the main power input for the Parallelizer. The Parallelizer requires a DC9V supply. The current draw is approximately 130mA at DC9V (Center Negative). Note : Do not supply power higher or lower than DC9V. Internal electronic components may be damaged. -
Page 4: Set Operation Mode
2.3 MIDI Control Change mode The Parallelizer can be controlled via MIDI Control Changes. Each MIDI Control Change includes a controller number which specifies the Parallelizer which to turn on or off. The Parallelizer can select from four different groups of Control Change numbers. -
Page 5: Factory Reset
7. Power Check Function The Parallelizer must be supplied with a 9VDC power source. For this reason, the Parallelizer has a function to show whether the supplied power is a 9VDC, higher voltage power or lower voltage power. The FX3 LED will flash if the power is over 10V. - Page 6 Musicom Lab warrants this product against any defects that are due to defective parts or faulty workmanship for a period of one year from the date of original retail purchase. During this one year period, Musicom Lab will repair it without charge for parts or labor.
