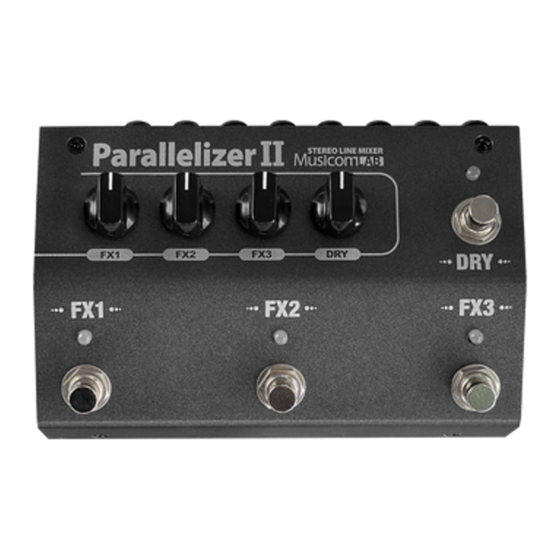

- Page 1 Parallelizer II Full Stereo Line Mixer OWNER'S MANUAL Version 1.0x...
- Page 2 Thank you for purchasing the Musicom Lab Parallelizer II. Parallelizer II is a parallel effect loop system that has 3 Stereo SENDs and can mix 3 Stereo RETURNs and dry signal. You can preserve your dry signal by using the Parallelizer II, which can result in loss of dry signal when using the digital effect pedals or when connecting the effect pedals in series.
-
Page 3: Operation Mode
Note : MIDI IN/THRU Connectors have the TYPE A(Standard) Polarity. DC9V Power Connector This is the main power input for the Parallelizer II. The Parallelizer II requires a DC9V supply. The current draw is approximately 150mA at DC9V (Center Negative). -
Page 4: Set Operation Mode
2.3 MIDI Control Change mode The Parallelizer II can be controlled via MIDI Control Changes. Each MIDI Control Change includes a controller number which specifies the Parallelizer II which to turn on or off. The Parallelizer II can select from four different groups of Control Change numbers. -
Page 5: Factory Reset
DRY LED will be on. At this moment, the three switches can be released. 2. Press the DRY switch to execute Factory Reset. 3. When the Factory Reset is successful, the LEDs will turn on sequentially and the Parallelizer II will restart automatically. - Page 6 Musicom Lab warrants this product against any defects that are due to defective parts or faulty workmanship for a period of one year from the date of original retail purchase. During this one year period, Musicom Lab will repair it without charge for parts or labor.
