UVL150
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVL150 and is the answer not in the manual?

Questions and answers

Summary of Contents for GOLDENSEA UV UVL150

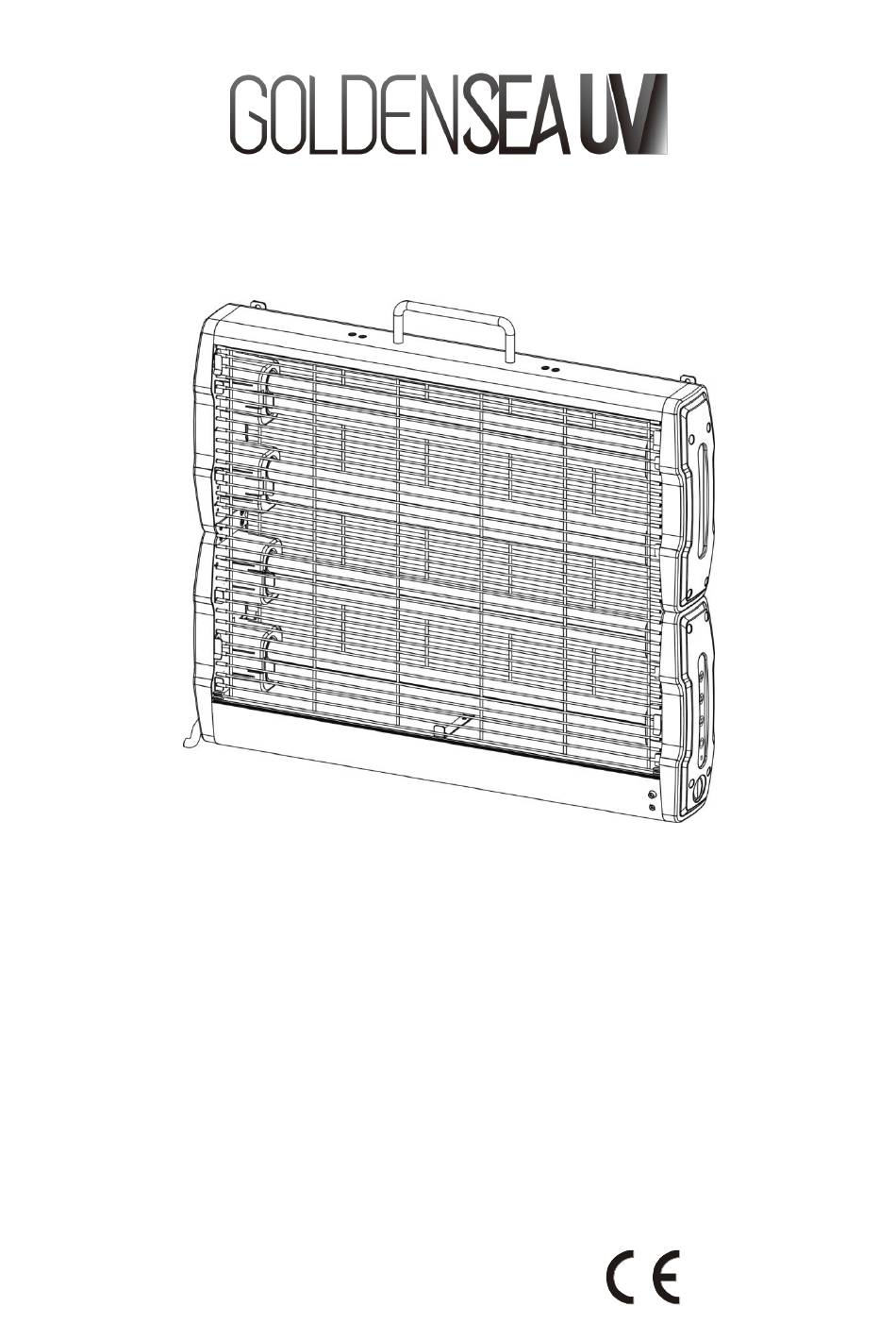

  • Page 1 UVL150 USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
  • Page 2: Table Of Contents

    Thank you for purchasing a GOLDENSEA UV product. You have acquired a powerful and versatile device. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device.
  • Page 3: Safety Instructions

    10. Insufficient disinfection time or insufficient radiation will influence the effect of disinfection. 11. If possible, the external power supply for GOLDENSEA UV products should be installed with a qualified inline leakage protection device. 12. Ensure the surface of the lamp tube is clean before use. If dust is found on the lamp tube, please wipe it with a clean cloth.
  • Page 4 18. Dispose of used or broken lamps by following your local hazardous waste management guidelines. Do not dispose of lamps with household waste. 19. If there is a technical problem with any GOLDENSEA UV product, please contact GOLDENSEA or an official GOLDENSEA UV local distributor; Never disassemble a product without the instruction of qualified service personnel.
  • Page 5 www.goldenseauv.com UV-C RISK GROUP 3 WARNING UV-C emitted from this product. Avoid eye and skin exposure to unshielded product. Follow installation instructions and user manual. Important: Damage caused by disregarding this user manual is not subject to warranty. The dealer and manufacturer will not accept liability for any resulting defects or problems.
  • Page 6: Features

    www.goldenseauv.com For safety reasons, please be aware that modifications to the device are prohibited and may lead to short-circuits or fire. GOLDENSEA will not be liable for any consequence caused by modifications to the product. 2. Features Power Supply • AC 100-240V~, 50/60Hz •...
  • Page 7 www.goldenseauv.com Parts List: UV Tube Included Remote Control Included (battery type: CR2025) UV Glasses Included (protective eyewear) Reflector Included Floor Bracket Included Warning Sign Included Safety Cable Optional Tripod Bracket Optional Rotating Bracket Optional UV Strips Optional UV Irradiance Meter Optional...
  • Page 8: Product Overview

    www.goldenseauv.com 3. Product Overview 8) Power Switch 1) Handle 9) Power Cable 2) Hanging Hook 10) Lamp Tube Safety Catch 3) 120 mins - touch key 11) Protective Grid 4) 60 mins - touch key 12) UV Tube 5) 30 mins - touch key 13)...
  • Page 9: Dimensional Drawings

    www.goldenseauv.com 4. Dimensional Drawings...
  • Page 10: Installation Instructions

    www.goldenseauv.com 5. Installation Instructions 5.1. Installation of Floor Bracket Steps: 1. Take the device and the floor brackets out of the package. 2. Align the screw holes of the floor brackets with the screw holes at the bottom of the device.
  • Page 11 www.goldenseauv.com 5.3. Installation of Reflector Steps: 1. Pull up the 4 locking tabs (as shown) on the back of the device. Install the reflector onto the back of the device. Make sure the reflective (shiny) surface of the reflector is facing the lamp tubes. The rough side of the reflector should be facing away from the lamp tubes.
  • Page 12: Operation Guide

    www.goldenseauv.com 5.5. Installation of Rotating Bracket (optional) Steps: 1. Align the screw holes of the rotating bracket with the screw holes of both top and bottom of the device as shown. 2. Fix the rotating bracket to the device with 4 screws (M4x10mm). 6.
  • Page 13 www.goldenseauv.com 6.2. Control Panel Operation 1. Connect the power cable of the device to the power socket, press the power switch < I/O > to <I>, the green power indicator light turns on. 2. Press the <30 Min>, <60 Min> or <120 Min> button to select your desired disinfection time, the corresponding indicator light under the button turns on.
  • Page 14 www.goldenseauv.com 6.4 Motion Detection 1. If the device detects any movement within 3m, the device will be deactivated immediately. Note: 3m is the measured value in an open area without the reflector; the reflector will affect the motion detection distance. Results may differ depending on different applications.
  • Page 15: Replacing The Uv Tube

    www.goldenseauv.com 7. Replacing The UV Tube To maintain the sterilizing efficacy, the UV tube needs to be replaced after 9,000 hours of use. Steps: 1. Wait for UV tube to cool down (to avoid scalding) after switching off the device. 2.
  • Page 16: Troubleshooting Tips

    www.goldenseauv.com 8. Troubleshooting Tips 8.1. What to do if the device doesn’t work? 1. Ensure the device is plugged into a working wall socket. 2. Ensure the plug is wired correctly and terminal well-connected. 3. If you still have issues with the device, please contact your local dealer or our customer service for assistance.
  • Page 17: Cleaning And Maintenance

    www.goldenseauv.com 9. Cleaning and Maintenance 1. To ensure the device remains in good condition and does not fail prematurely, regular maintenance, cleaning and checks are required. 2. For cleaning of the device, please use a lint-free cloth. 3. To avoid damage to the device, never use detergent or solvents. 4.
