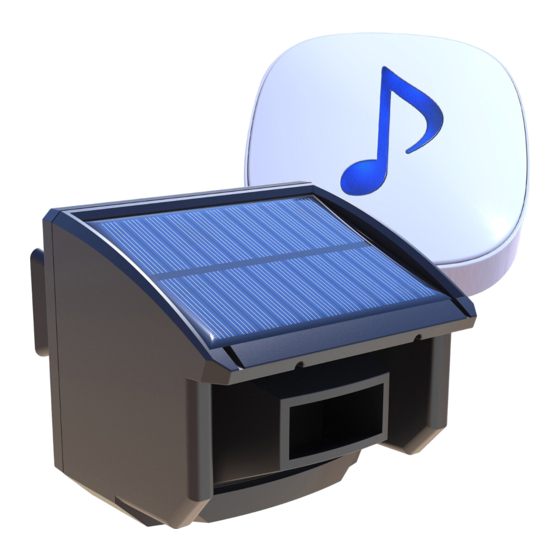

Wireless Alarm System
Note:
1.The alarm system has been programmed already,please
operate the system according to the part 2 of the manual;
2.If you want to add additional HTZSAFE sensors to the
system,please operate the system according to the part 3 of
the manual or contact us directly.
After-sale Service:
E-mail:
contact@saferhomee.com)
1. System Components And Usage
Power Plug
Volume
Melody
Power Plug:plug the receiver into a socket
Volume: 4 volume levels adjustable
Melody: 35 classic melodies optional
Indicator Light: flash for several seconds when the sensor
be activated
1
User Manual
Plug-in Alarm Receiver
Indicator Light
Advertisement
Table of Contents
Related Manuals for Htzsafe 805A
Summary of Contents for Htzsafe 805A
- Page 1 1.The alarm system has been programmed already,please operate the system according to the part 2 of the manual; 2.If you want to add additional HTZSAFE sensors to the system,please operate the system according to the part 3 of the manual or contact us directly.
- Page 2 Speaker Speaker:sound for several seconds when the sensor be activated Solar Wireless Motion Sensor Solar Panel Sensor Eye Drain Hole Sensor Eye: detect the objects Solar Panel:charge the built-in battery of the sensor Drain Hole:used to drain out the rainwater(please note the drain hole must be at the bottom when you install the sensor)
- Page 3 Charge Jack ON/OFF Charge Jack:used to connect the additional solar panel or DC 5V power adapter ON/OFF:turn on/off the sensor ATTENTION PLEASE The KIT inclues a charge cable which is used to charge the solar wireless motion sensor before use or if long- term continuously rainy days caused low battery.Please charge the sensor for 4 hours as below: Charge Jack...
- Page 4 2. Operation Instructions Step 1 Plug the receiver into a outlet The indicator light of the receiver will flash for 15 seconds means working properly Step 2 Turn on the Wireless Motion Sensor: Press the ON/OFF button 4 times ON/OFF press 4 times (bleep prompt means work normally)
- Page 5 Step 3 Activate The Wireless Motion Sensor (wait about 30 seconds after you turned on the sensor) 1st method:press the ON/OFF button twice ON/OFF press twice) (the light of the ON/OFF button will flash once means the motion sensor was activated and sent the alarm signal) 2nd method: Ensure the sensor is turned away from you.
- Page 6 Step 4 Press “Melody” once to choose the melody for this sensor, total 35 melodies optional. Melody Step 5 Same steps for the other sensors Step 6 Installations Wireless Motion Sensor long screws short screws...
- Page 7 Installation Notes: 1. Please fix the motion sensor tightly to ensure the position and the direction will not be moved easily by wind. 2.Please point the sensor towards a open field(not towards the trees or bushes) 3.please adjust the sensor a little down(not upward)
- Page 8 3. Other Settings (1)How to add additional sensors to the receiver (up to 32 sensors can be added to 1 receiver) Step 1 Plug the receiver into a outlet Step 2 Press and hold the “Volume” button for 5 seconds and release the button when you heard a beep prompt and the indicator light flashing;...
- Page 9 Step 3 Activate the sensor. Note:please make the sensor close to the alarm receiver flashing quickly ON/OFF press twice) (the indicator light flashing (a ring tone prompt and the indicator 3 times means the sensor light flashing quickly means the sensor was activated properly) has been added to the wireless alarm receiver successfully)
- Page 10 (3)How to adjust the alarm volume Step 1 Plug the receiver into a outlet Step 2 Press the “Volume” once to adjust the volume of the receiver. (total 4 volume levels adjustable) Volume (4)How to change the melody for the sensors (total 35 melodies optional,match different melody with different sensor) Step 1...
- Page 11 Step 2 If select Low sensitivity---turn on the sensor by pressing the ON/OFF button 3 times If select Middle sensitivity---turn on the sensor by pressing the ON/OFF button 4 times If select High sensitivity---turn on the sensor by pressing the ON/OFF button 5 times 4.
- Page 12 Wireless Motion Sensor 92mm 45mm 90mm 103mm Technical parameters Technical Parameters Item Detection Range 50 feet(15m) Detection Angle 1/4 Mile(400m) Wireless Transmission Range Wireless Frequency 433MHz FSK+FHSS 3.3V Working Voltage Battery Type Chargeable LiFePO4 Battery Battery Capacity 500mAh Working Current Static: 1mA;...
