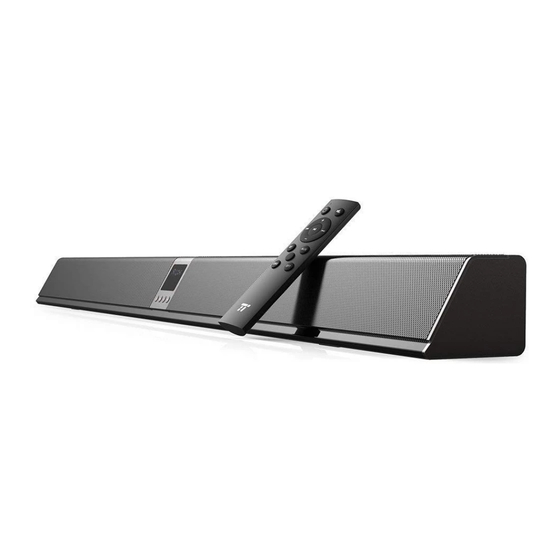

TaoTronics TT-SK019 Connection Instructions

Soundbar Connection
Instructions
Overview of the Ports
L
OPTICAL COAXIAL DC 18V 2.2A
Optical Input Coaxial Input DC Input
Option 1: Optical (Preferred)
A: Cable Connection
Note: Make sure to remove the protective covers on the ends of
the cable.
Incorrect insertion will damage the port and / or the connector.
Connect to your TV Set:
OPTICAL IN
OPTICAL
R
B. Sound Bar
AUX
Press the OPT button on the remote or press the Power Button on the sound bar
to select Optical Mode, the "OPT" indicator will light up on the display.
RCA AUX Input
1
OPTICAL
OUT
OPTACAL OUT
BT
AUX
OPT
C O A X OPT
Option 2: AUX (RCA)
A. Cable Connection
R
(RED)
AUX
L
(WHITE)
AUDIO OUT
B. Sound Bar
Match the R / L (RED/WHITE) ports for correct connection. Press the AUX button
on the remote or the Power Button on the sound bar to turn on AUX mode, the
AUX Indicator will light up.
AUX
BT
AUX
2 C O A X OPT 3
