Thermon Terminator ZP-PTD100-WP Installation Procedures Manual

Temperature sensor connection kit for use with ptd-100 temperature sensors

Advertisement

Quick Links

Terminator
ZP-PTD100-WP
TM
Temperature Sensor Connection Kit
INSTALLATION PROCEDURES
For Use with PTD-100 Temperature Sensors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terminator ZP-PTD100-WP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thermon Terminator ZP-PTD100-WP

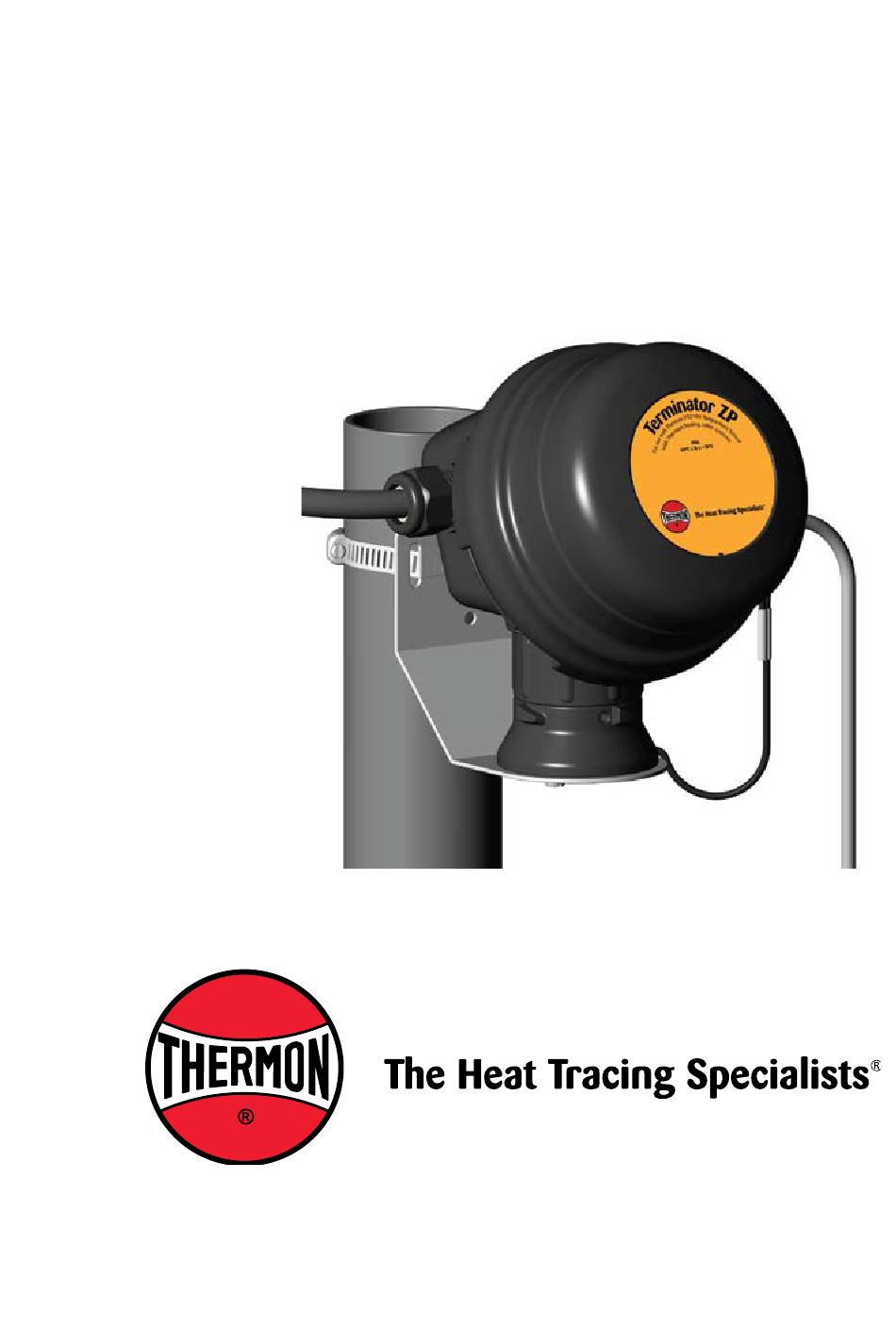

  • Page 1 Terminator ZP-PTD100-WP Temperature Sensor Connection Kit INSTALLATION PROCEDURES For Use with PTD-100 Temperature Sensors...
  • Page 2 M5 Screws nance, a ground-fault protection device is required. Lock Washers • Installation must comply with Thermon requirements and be Terminal Block with DIN Rail installed in accordance with the regulations as per the norm Junction Box Lid Cord EN IEC 60079-14 for hazardous areas (where applicable), or any other applicable national and local codes.
  • Page 3 Terminator ZP-PTD100-WP INSTALLATION PROCEDURES Mounting Method 2: Secure wall mount Mounting Method 3: Secure XP-1 mounting Mounting Method 1: Secure wall mount brack- bracket to mounting surface using screws, bracket to pipe using pipe bands. Secure wall et to mounting surface using pipe band. washers, and nuts (user supplied) mount bracket to XP-1 using screws, washers, and nuts (user supplied)
  • Page 4 Terminator ZP-PTD100-WP INSTALLATION PROCEDURES Install control wiring (user supplied, 6 mm2 Install quick mount terminal blocks and tighten Complete system wiring. Terminal set screws max). 3 wire cable (for 1 sensor) or 6 wire screws (if necessary). shall be tightened to a torque value of 1.4 Nm cable (for 2 sensors) with braided earth shield (12.4 lb-in).
  • Page 5 Terminator ZP-PTD100-WP INSTALLATION PROCEDURES Wiring Details Control Wire Connection (1 Sensor) Control Wire Connection (2 Sensors) A = White, B = Red, C = Green / Yellow A = White, B = Red, C = Green / Yellow In order to avoid EMI issues with a temperature control- ler, the shield of the control wire shall be connected to the instrumentation earth only.
  • Page 6 Die Installation muss gemäß der THERMON Montageanleitung sowie den internationalen Richtlinien aus EN IEC • L’installation doit être conforme aux recommandations données par Thermon, et être faite dans le respect des 60079-14 für explosionsgefährdete Bereiche (wo zutreffend) oder anderer nationaler/regionaler Anforderungen normes électriques EN IEC 60079-14 applicables aux zones classées, ainsi que tout autre code local ou national...
  • Page 7 THERMON . . . The Heat Tracing Specialists ® www.thermon.com European Headquarters Corporate Headquarters • • For the Thermon office nearest you Boezemweg 25 PO Box 205 100 Thermon Dr. PO Box 609 • • visit us at . . .
