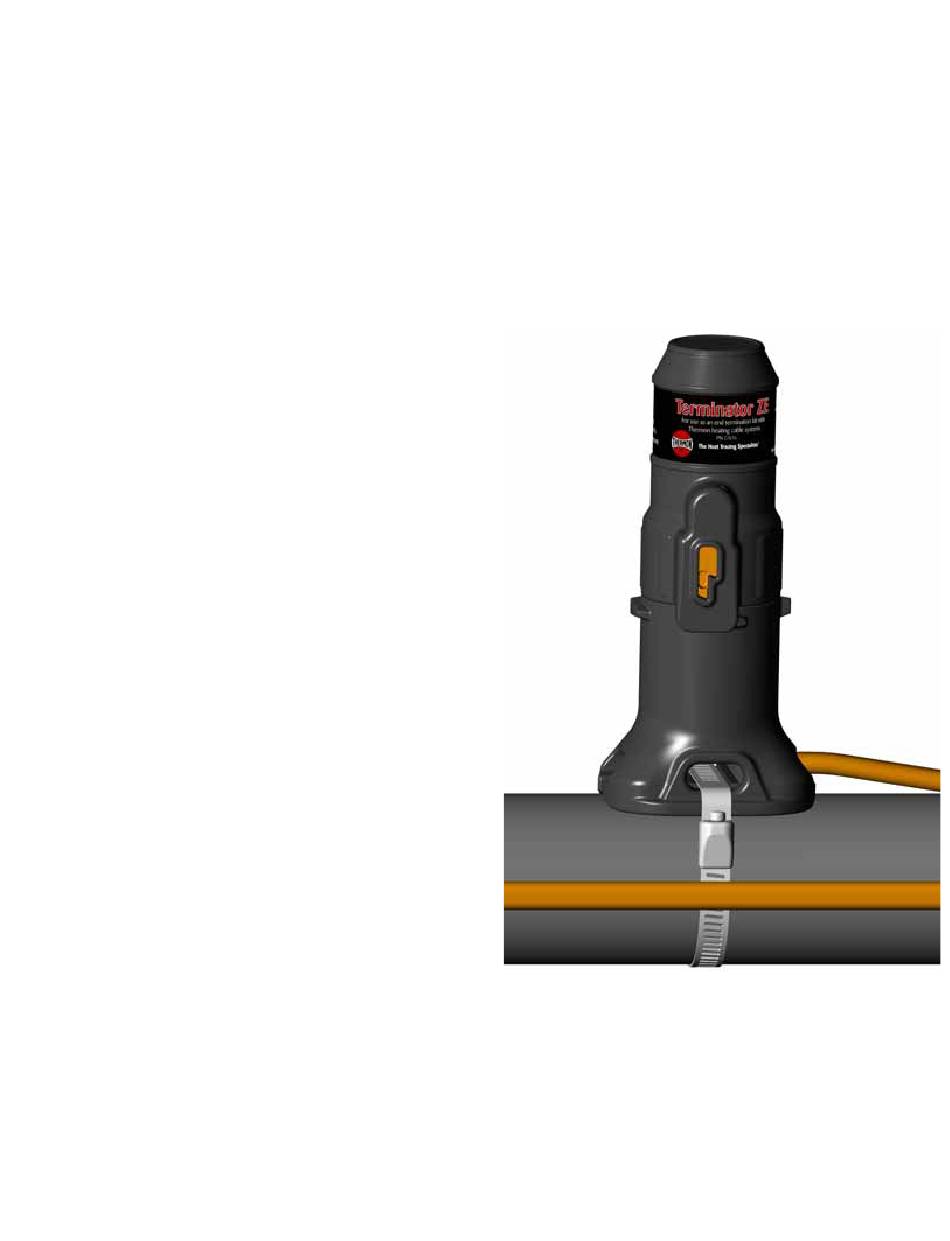

- Page 1 End Termination Kit Installation Instructions Terminator ZE-S for use with HPT power-limiting and FP constant watt heating cables For End Termination Applications 1-2 Cables - Standard 3 Cables - w/ Optional End Cap...
- Page 2 De-energize all power sources before opening enclosure. Installation must comply with Thermon requirements and be installed in accordance with the NEC, CEC, or any other applicable national Keep ends of heating cable and kit components dry before and during and local codes.
- Page 3 Installation Instructions Locate bus connection and cable as shown. Cut end Insert banding guide into expediter and snap into place. of cable at angle to aid in piercing grommet. Leave additional cable for expansion loop. See pages 9-10 for multiple cable installation tips. Insert cable into expediter.
- Page 4 Installation Instructions Cut and remove overjacket. Cut and remove fiberglass braid. Omit this step for FP cable. Trim away exposed braid from cable. Cut and remove heating element and fiberglass overlay (FP cable only). Push any remaining heating element wire under the primary insulation jacket. Cut and remove primary insulation jacket.
- Page 5 Installation Instructions Stagger cut one of the bus wires. Push excess cable back through expediter. Tighten cap securely. Tape cable expansion loop to pipe. Tape bus wires individually and then together. Continue Completed end termination kit. Make sure latch taping to cover overjacket. mechanism is in the locked position.
- Page 6 Two Cable Layout Tips Three Cable Layout Tips Locate bus connection and cable as shown. Cut end Locate bus connection and cable as shown. Cut end of cable at angle to aid in piercing grommet. Leave of cable at angle to aid in piercing grommet. Leave additional cable for expansion loop.
- Page 7 Thermon Manufacturing Company 100 Thermon Drive P.O. Box 609 San Marcos, Texas 78667-0609 • • Phone: (512) 396-5801 Fax: (512) 396-3627 1-800-820-HEAT • • www.thermon.com...
