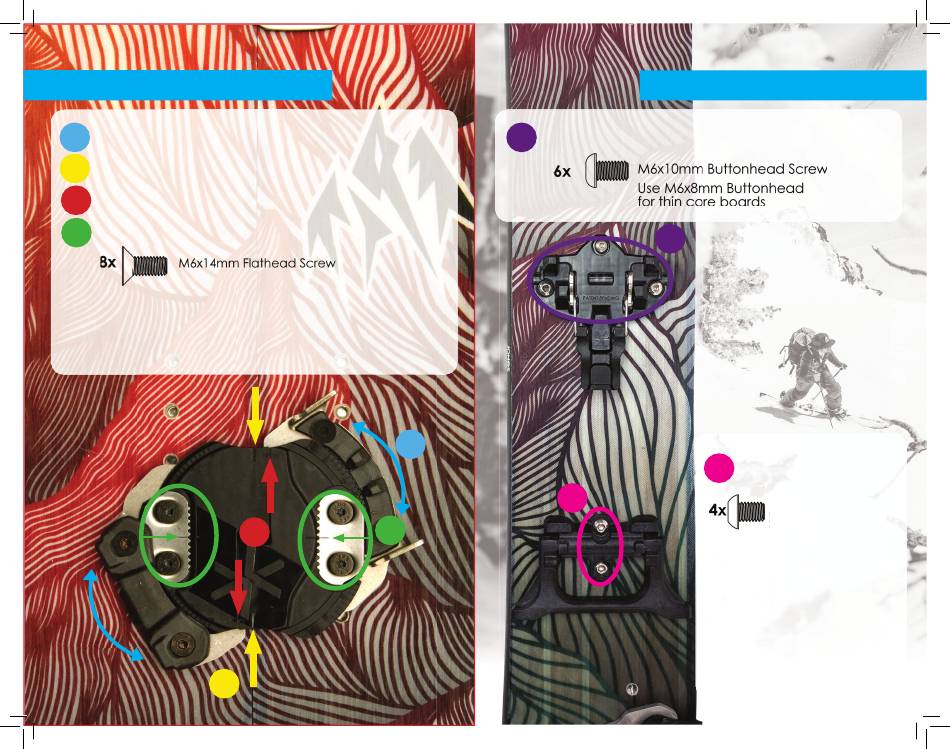

Karakoram CONNECT SPLIT CONVERSION KIT Assembly And Use Instructions page 2

RIDE MODE 2.0 INSTALLATION
1
Set stance angles
2
Align dashes with seam of splitboard
3
Match alignment arrows
4
Match dashes and tighten mounting screws
(4 Left Foot, 4 Right Foot)
Fit binding to Ride Mode 2.0. Binding should drop-on
smoothly. For more information visit:
www.splitboardbindings.com/manuals-and-instructional-videos
2
1
4
3
TOUR MODE INSTALLATION
5
Mount Tour Mode
5
6
6
Mount DualSpeed Risers
M6x8mm
Buttonhead Screw
Positioning:
Nomad and X slide
toward tip of ski.
Connect slide toward
tail of ski.
