Karakoram Prime Connect Assembly And Use Instructions

Advertisement

Quick Links

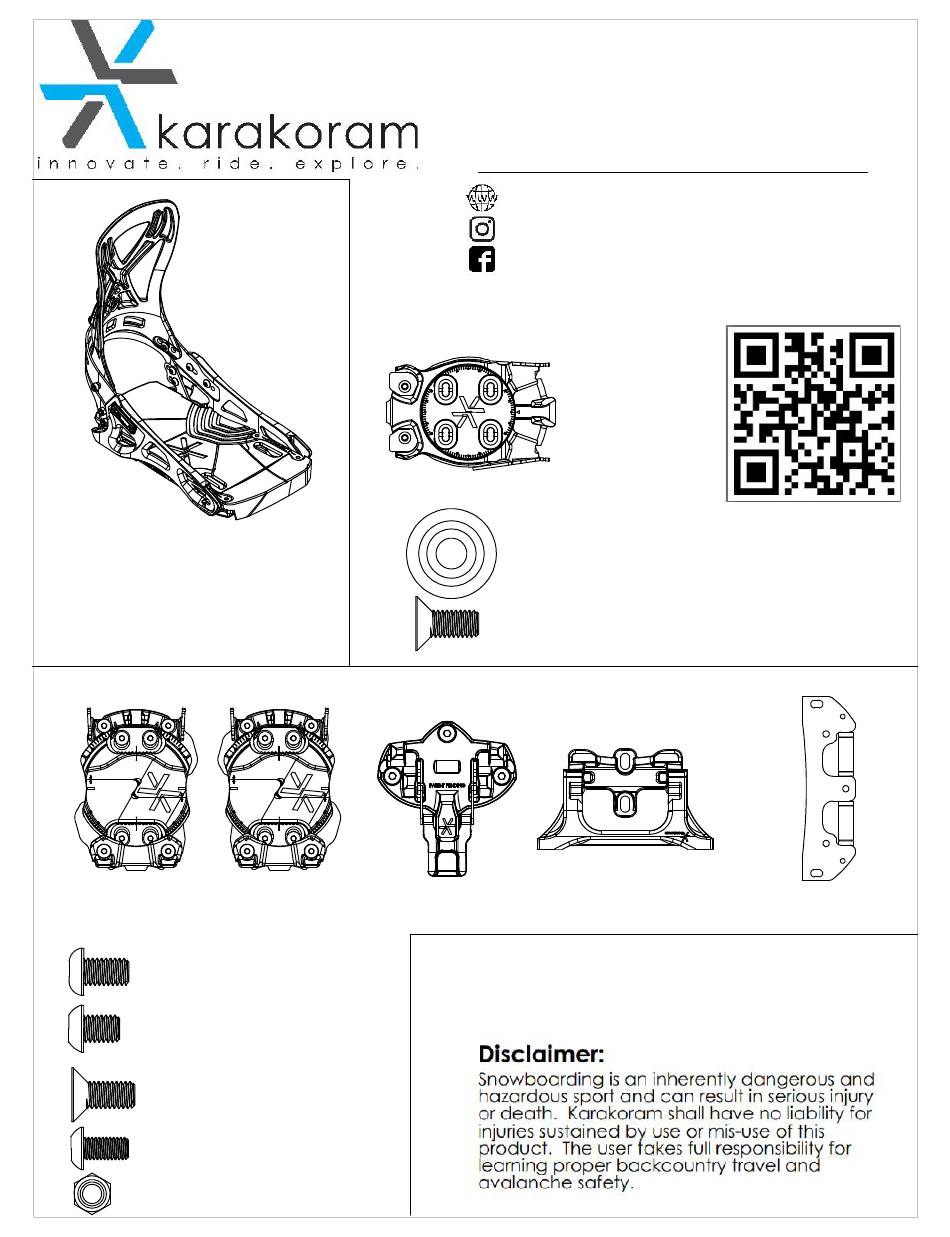

2x Bindings (L and R)
SPLIT KIT
(Sold Separately in some countries)
1x Ride Mode 2.0 - Left and Right
SPLIT KIT Hardware:
6x
M6x10mm Buttonhead Screw
Tour Mode
10x
M6x8mm Buttonhead Screw
4x for Flip-Speed Riser
6x extra for Tour Mode with thin core boards
8x
M6x14mm Flathead Screw
Ride Mode 2.0
M5x 10 mm Buttonhead Screw
4x
Tour Mode Adapter
4x
M5 Nylock Nut
Tour Mode Adapter
Prime Connect Instructions_A02
Prime Connect
Assembly and Use Instructions
Patented US8469372B2, US8733783B2, US9138628B2, 9937407B2 and Patents Pending
www.karakoram.com
instagram.com/karakorambc
facebook.com/karakorambc
Quiver-Connector
2x
Quiver-Connector Hardware
8x
M6 washer
8x
M6 x 14mm Flathead Screw
2x Single Flip-Speed Riser
2x Tour Modes
Tools:
-M4 Allen Wrench
-M3 Allen Wrench
-Cresent Wrench or 8 mm socket
Size Chart:
Small: 6-8
Medium: 8.5-11
Large:11.5-13
Women's: W6-W8
Sold separately in
some countries
Quiver-Connector
Scan QR Code for
video instructions or visit
www.karakoram.com
***Hardware shown to scale
(Binding Hardware, Interfaces)
(Highback Fwd Lean, Heel Lever Size Adjustment)
(Heel Lever Size Adjustment)
2x Tour Mode
Adapters
PAGE 1 OF 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prime Connect and is the answer not in the manual?

Questions and answers

Summary of Contents for Karakoram Prime Connect

  • Page 1 4x for Flip-Speed Riser 6x extra for Tour Mode with thin core boards M6x14mm Flathead Screw Ride Mode 2.0 M5x 10 mm Buttonhead Screw Tour Mode Adapter M5 Nylock Nut Tour Mode Adapter Prime Connect Instructions_A02 PAGE 1 OF 7...
  • Page 2 Stance Width Heel/Toe Position Quiver-Connector Use Open Power-Link Lever to install binding onto Quiver- Connector Close Power-Link Lever to attach binding to Quiver- Connector Power-Link Lever Lock-Block 3. Close Lock-block over Power-Link Lever Prime Connect Instructions_A02 PAGE 2 OF 7...
  • Page 3 Split Kit Installation Cut Toe Ramp of with Box Cutter along score line. Remove Toe Ramp and spacers 2x Tour Mode Adapters M5x 10 mm Buttonhead Screw M5 Nylock Nut Tour Mode Adapter Prime Connect Instructions_A02 PAGE 3 OF 7...
  • Page 4 Front Foot: 30° max, -10° min Back Foot: 10° max, -30° min Left Right For greater than 10° on Back Foot A. Remove Hardware B. Flip Angle Plates C. Reinstall Hardware Angle Plate Angles in 3° increments Prime Connect Instructions_A02 PAGE 4 OF 7...
  • Page 5 Ride Mode 2.0 Align heelside angle to match toeside angle Alignment Arrows Heelside Angle Seam Mark Match alignment arrows and align seam marks with seam of splitboard Tighten screws Test fit bindings Prime Connect Instructions_A02 PAGE 5 OF 7...
  • Page 6 2. Adjust position of binding is loose toestay on ride mode Tighter Looser 3. Tighten Screws 1/4 turn past hand tight. Forward Lean Adjustment: Bindings come set at 12° fwd lean 10° 22° 0° Prime Connect Instructions_A02 PAGE 6 OF 7...
  • Page 7 Prime Splitboard System Use Instructions Ride Mode: Open Heelcup Lever Attach binding to Ride Mode, aligning Toe Pins and Ride Mode Toe Attachment Toe Pins Close Heel Lever and Safety Prime Connect Instructions_A02 PAGE 7 OF 7...
