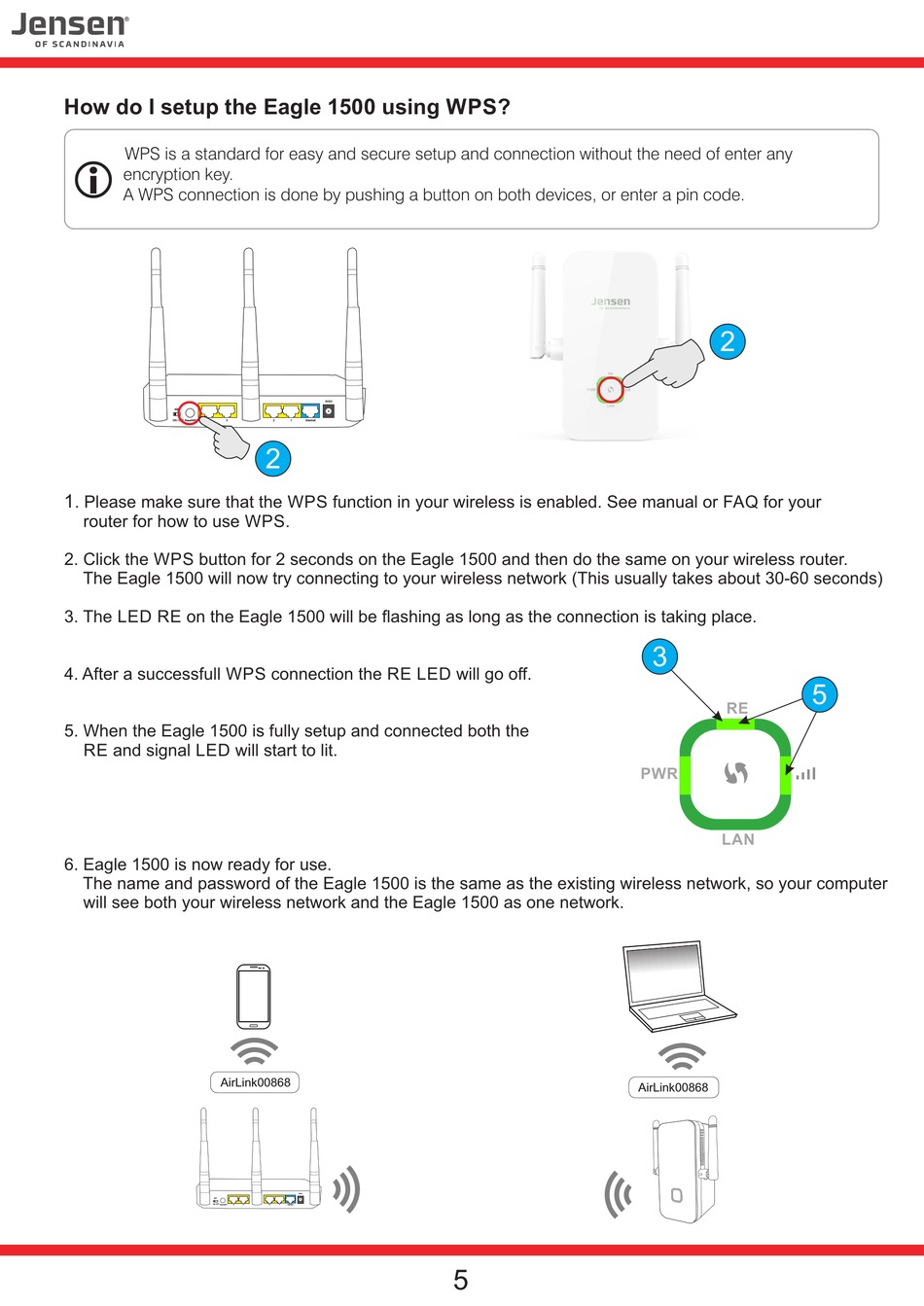

How do I setup the Eagle 1500 using WPS?

WPS is a standard for easy and secure setup and connection without the need of enter any
i
encryption key.
A WPS connection is done by pushing a button on both devices, or enter a pin code.
WiFi
ON / OFF Reset/WPS 4 3
1
. Please make sure that the WPS function in your wireless is enabled. See manual or FAQ for your
router for how to use WPS.
2. Click the WPS button for 2 seconds on the Eagle 1500 and then do the same on your wireless router.
The Eagle 1500 will now try connecting to your wireless network (This usually takes about 30-60 seconds)
3. The LED RE on the Eagle 1500 will be flashing as long as the connection is taking place.
4. After a successfull WPS connection the RE LED will go off.
5. When the Eagle 1500 is fully setup and connected both the
RE and signal LED will start to lit.
6. Eagle 1500 is now ready for use.
The name and password of the Eagle 1500 is the same as the existing wireless network, so your computer
will see both your wireless network and the Eagle 1500 as one network.
