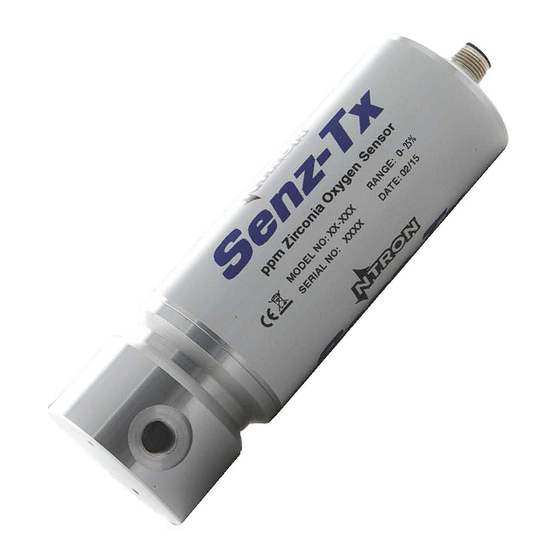

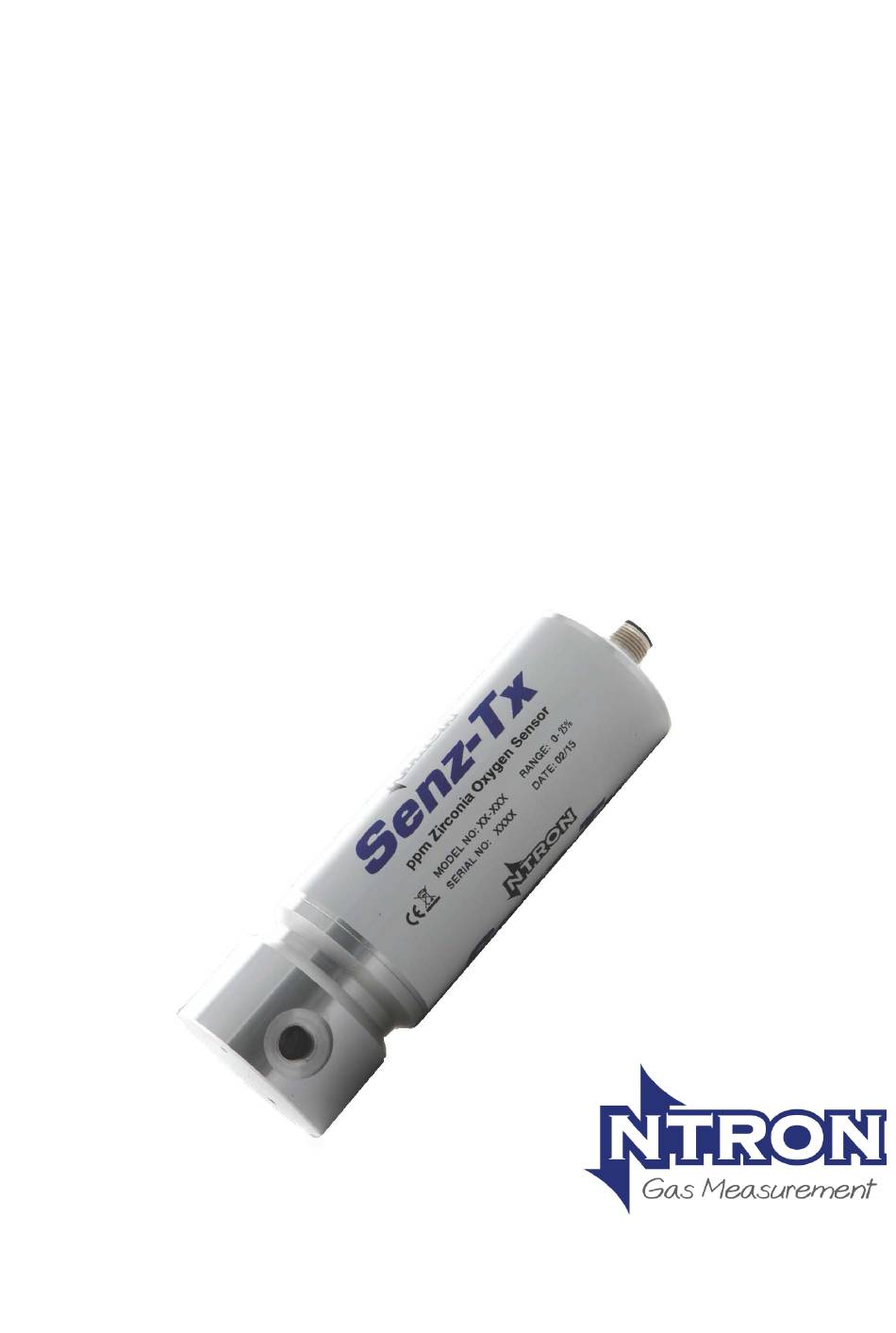

- Page 1 SenzTx Zirconia Oxygen Analyzer WITH 0-10V ANALOGUE OUTPUT Short Form user Manual...
-
Page 2: Table Of Contents
General Information ........................3 1.1.2 Intended Use of the SenzTx ....................3 1.1.3 The Measuring Cell/Sensor Element ................ 3 1.1.4 Unintended Use of the SenzTx Analyzer ................4 1.1.5 Construction ..........................4 1.1.6 Calibration of the Measuring Instruments ................4 1.2. -
Page 3: General Information
1.1. General Information 1.1.2 Intended Use of the SenzTx The Analyzer are designed to monitor a sample containing an oxygen content to be measured within the specified ppm or % ranges. The Analyzer can be used in combination with the control system (PLC) or as a standalone oxygen- measuring-system. -
Page 4: Unintended Use Of The Senztx Analyzer
The Analyzer can also be used in other applications outside of those described in this manual. However, the user should check with the manufacture beforehand. CAUTION Risk of damage! The SenzTx Analyzer should only be operated in the way set out in this manual. 1.1.5 Construction The SenzTx Zirconia Oxygen Analyzer consists of a measuring cell and associated electronics, separated by a gastight clamp flange. -
Page 5: Technical Description
1.2. Technical Description 1.2.1 Connection The Oxygen measurement equipment is connected by a M12x1mm threaded-connecting plug (8pin). Pin Assignment: Pin-No. Contact Cable colour Black 0-10V Output (+) Not used Green 0-10V output Ground Yellow Serial RS485 (B) Grey Serial RS485 (A) White Power Ground OVDC Blue... - Page 6 Cell Life 3-5 Years Cross sensitivities none for normal applications (no aggressive gases) 1) In absence of reactive gases. 2) Sensor life is typical but dependent on many factors. (See also chapter 1.1. Intended Use). 26/09/2017. Rev.1 Page 6/10...
-
Page 7: Installation
CAUTION Risk of damage! The SenzTx Zirconia Oxygen Analyzer should not be subjected to moisture in the sample gas stream when cold (not powered). It is advised than any moisture and other contaminants are removed from the sample gas stream prior to entering the SenzTx measurement stream. - Page 8 M12 connector 26/09/2017. Rev.1 Page 8/10...
-
Page 9: Maintenance And Calibration Of Measuring Cells
1.3. Maintenance and Calibration of Measuring Cells All SenzTx Oxygen Analyzers undergo a certified calibration before shipping. User calibration is not within the scope of this manual 26/09/2017. Rev.1 Page 9/10... - Page 10 26/09/2017. Rev.1 Page 0/10...
