The
SenzTx
Electrochemical Oxygen Analyzer
WITH 4-20mA ANALOGUE OUTPUT
Short Form User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SenzTx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ntron SenzTx

Summary of Contents for Ntron SenzTx

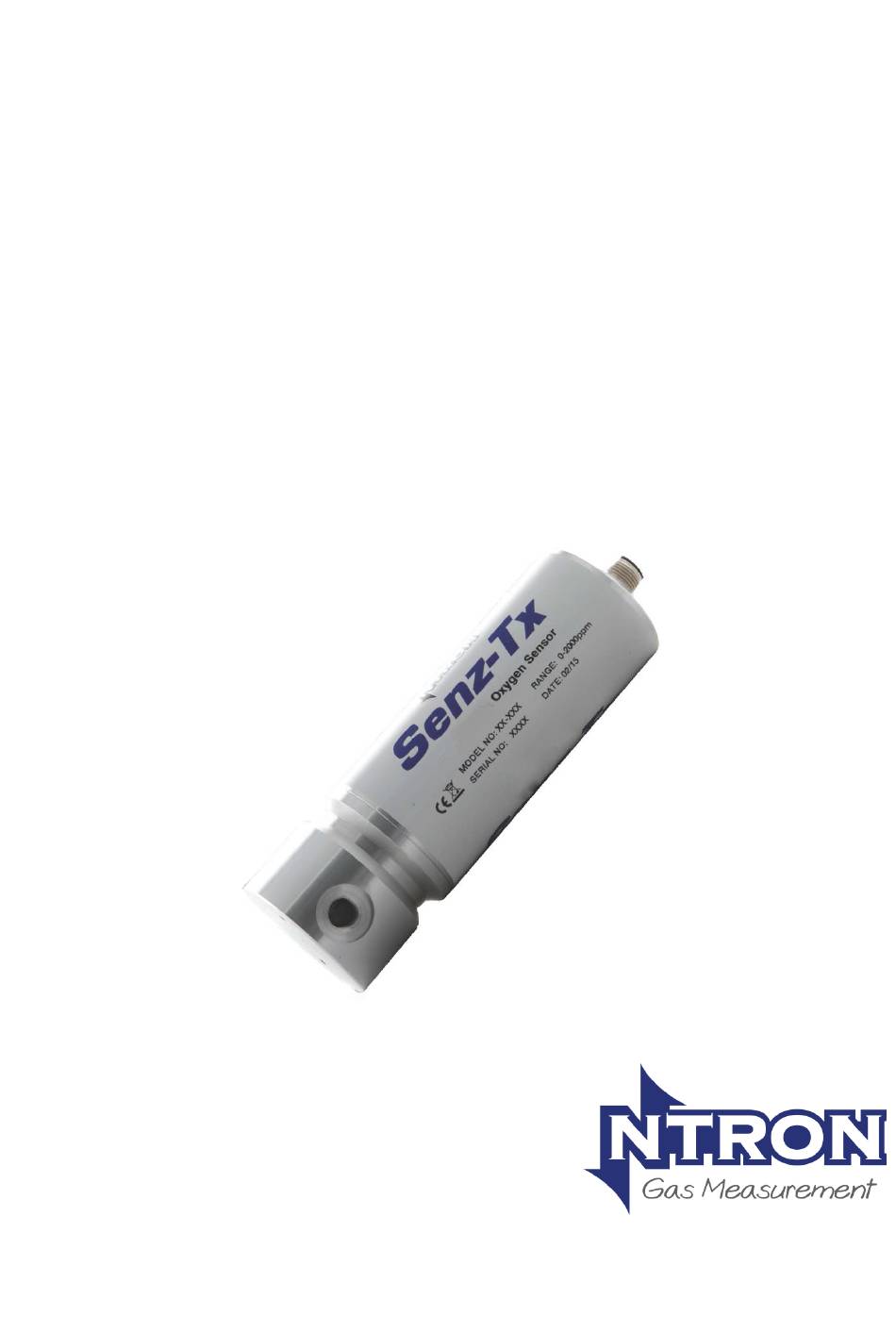

  • Page 1 SenzTx Electrochemical Oxygen Analyzer WITH 4-20mA ANALOGUE OUTPUT Short Form User Manual...

  • Page 2: Table Of Contents

    General Information ........................3 1.1.2 Intended Use of the SenzTx ....................3 1.1.3 The Measuring Cell/Sensor Element ................ 3 1.1.4 Unintended Use of the SenzTx Analyzer ................4 1.1.5 Construction ..........................4 1.1.6 Calibration of the Measuring Instruments ................4 1.2.

  • Page 3: General Information

    CAUTION Risk of damage! The SenzTx should not be stored in a way that environmental air may reach the Sensor. This will considerably shorten the lifetime of the cell and should be avoided. The package should not be unwrapped until the SenzTx is ready to be put into service.

  • Page 4: Unintended Use Of The Senztx Analyzer

    The Analyzer can also be used in other applications outside of those described in this manual. However, the user should check with the manufacture beforehand. CAUTION Risk of damage! The SenzTx Analyzer should only be operated in the way set out in this manual. 1.1.5 Construction The SenzTx Electrochemical Oxygen Analyzer consists of a measuring cell and associated electronics, separated by a gastight clamp flange.

  • Page 5: Technical Description

    Grey Serial RS485 (A) White Power Ground OVDC Blue Supply +24 VDC 4-20mA Output Industry standard 4-20mA interface required. Active 4-20mA output from the SenzTx 1.2.2 Technical Data Mechanical Data Dimensions: Ø47mm x 143mm(L)(Depends on model) Process Connection Typically, G 1/8” (Flow Through base) Weight: 0.260 kg...

  • Page 6: Installation

    The SenzTx should be mounted vertically if possible, into the process to ensure the maximising of operational life. It should never be mounted upside down. Before connecting voltage, the SenzTx Oxygen Analyzer should be exposed to inert gas for at least 1 minute. CAUTION...
  • Page 7 Connector position on the top of the SenzTx housing. A connecting cable is supplied with the SenzTx. M12 connector 30/07/2018 Rev.1.2 Page 7/10...

  • Page 8: Maintenance And Calibration Of Measuring Cells

    1.3. Maintenance and Calibration of Measuring Cells All SenzTx Oxygen Analyzers undergo a certified calibration before shipping. User calibration is not within the scope of this manual The Sensor connection orifice should never be cleaned with compressed Air. Cleaning is to limited to general surface/housing cleaning.
  • Page 10 Ntron Ltd. Mullaghboy Industrial Park, Navan, Co. Meath, Ireland C15 XD61 Tel:00353469071333; Fax:00353469071331; email:info@ntron.com; web: www.ntron.com 30/07/2018 Rev.1.2 Page 8/10...
