DETACHABLE WIRED CONTROL GIMBAL
USER MANUAL
3 -Axi s H andheld Gimbal fo r Sports Cameras
Contact us for further questions!
LA3D2
www.lanparte.com
LA3D2 manual
HONGKONG LANPARTE TECHNOLOGY LIMITED
Email:info@lanparte.com
Tel:+86-0769-81889368
Fax:+86-0769-85841828
ADD:NO.39, 2nd Xin'an road
Changan Town, Dongguan, Guangdong, China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA3D2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LANPARTE LA3D2

  • Page 1 DETACHABLE WIRED CONTROL GIMBAL USER MANUAL 3 -Axi s H andheld Gimbal fo r Sports Cameras Contact us for further questions! LA3D2 www.lanparte.com LA3D2 manual HONGKONG LANPARTE TECHNOLOGY LIMITED Email:info@lanparte.com Tel:+86-0769-81889368 Fax:+86-0769-85841828 ADD:NO.39, 2nd Xin’an road Changan Town, Dongguan, Guangdong, China...

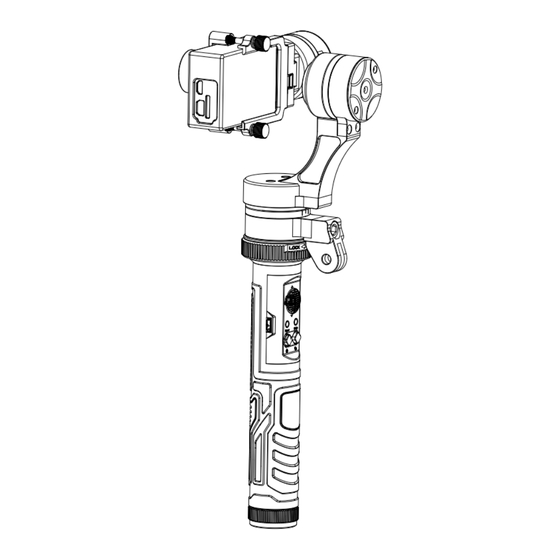

  • Page 2 Appearance and Design Attention ! Make sure to install the camera before turning on the power M3 locking screw Camera Camera holder power charging port GoPro standard mount (1/4 thread hole inside)
  • Page 3 Item list Serial No. Item Name 3-Axis handheld gimbal head Gimbal handle 18350 Li-ion battery Handle extender Wired control cable(1.5m) Micro USB cable (For camera powering) Joystick Micro USB cable (For battery charger) Power indicator Battery charger Mode indicator Power button Mode button USB port for setting and firmware upgrade...
  • Page 4 Gimbal Installation Battery Instructions Battery installation: Gimbal Installation Unscrew the battery compartment cap and install two 18350 batteries; or add the handle extender and install two 18650 batteries (install the positive end first) *Please note that the nominal voltage of the gimbal is 7.4V Each 18350 &...
  • Page 5 Operation Portrait vertical mode: Powering on/mode switch Double-tap the POWER button to enter portrait mode. Repeat the double-tap to switch back to landscape mode. A. Before turning on the power, make sure the white line aligns with the middle line. Zero point Gimbal head turns in 180°...
  • Page 6 Mode Switching Operating mode and Axis status Axis Control Mode How to activate Pitch(Tilt) Roll Yaw(Pan) Modes Direction Control Mode Button Indicator (in Operation mode) Mode1 Locked Following Following Mode Push the joystick left and right to Mode1 Single-tap Green button adjust the Roll.
  • Page 7 Standby Mode Size of Gimbal 93mm Press the power button for 3 second to enter into standby mode. Then 117mm power indicator blinks green while mode indicator blinks blue. Parameter Control Activating By Name Button Under standby mode, press UP on the joystick for 5 seconds. Parameter The mode indicator will blink red for uploading.
  • Page 8 Wired control cable Wired control Standard 1/4 thread underneath *1/4 thread hole on the bottom for use with common accessories.
