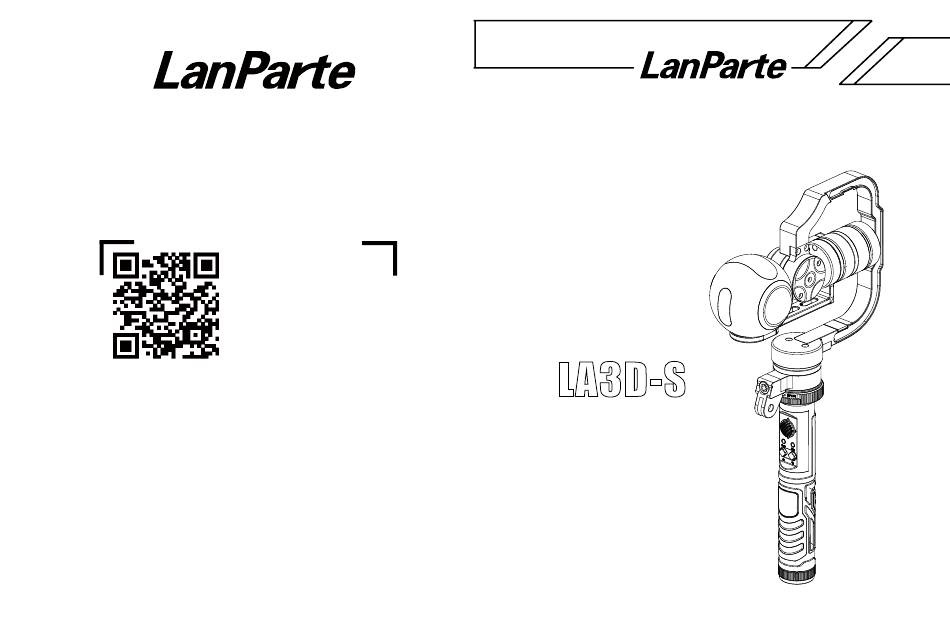

DETACHABLE WIRED CONTROL GIMBAL
USER MANUAL
°
3-Axis Handheld Gimbal for 360 VR Camera
Contact us for further questions!
LA3D-S
www.lanparte.com
LA3D-S manual
HONGKONG LANPARTE TECHNOLOGY LIMITED
Email:info@lanparte.com
Tel:+86-0769-81889368
Fax:+86-0769-85841828
ADD:NO.39, 2nd Xin'an road
Changan Town, Dongguan, Guangdong, China
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LANPARTE LA3D-S
Summary of Contents for LANPARTE LA3D-S
- Page 1 DETACHABLE WIRED CONTROL GIMBAL USER MANUAL ° 3-Axis Handheld Gimbal for 360 VR Camera Contact us for further questions! LA3D-S www.lanparte.com LA3D-S manual HONGKONG LANPARTE TECHNOLOGY LIMITED Email:info@lanparte.com Tel:+86-0769-81889368 Fax:+86-0769-85841828 ADD:NO.39, 2nd Xin’an road Changan Town, Dongguan, Guangdong, China...
- Page 2 Appearance and Design Attention! Make sure to attach camera before turning on power. counterweight Joystick Power indicator Mode indicator Power button Mode button 1/4-20 screw GoPro mount USB port for setting and firmware upgrade (detachable, with 1/4 -20 thread hole) 2 pcs 18350 Li-ion batteries 1/4-20 thread hole...
- Page 3 Item list Gimbal Installation Serial No. Item Name Gimbal Installation 3-Axis handheld gimbal head Gimbal handle 18350 Li-ion battery Handle extender Wired control cable(1.5m) Battery charger Micro USB cable (For battery charger) Align the contacts on the Turn counter handle and gimbal head and align clockwise to open white dots and turn clockwise.
-
Page 4: Battery Instructions
Operation Battery Instructions Battery installation: Balance adjustment Unscrew the battery compartment cap and install two 18350 batteries; or add the handle extender and install two 18650 batteries (install the positive end first) Attached the camera with 1/4-20 screw of the gimbal. For camera of lighter weight, the counterweight on pitch axis can be unscrewed. - Page 5 B. To power on the gimbal, hold the power button for 2 seconds until the power indicator Mode Switching turns on. The gimbal is now in STANDBY mode. Operation modes- Hold the MODE button for 4 seconds. The gimbal will stabilize the Control Mode How to activate...
- Page 6 Standby Mode Operating mode and Axis status Axis Pitch(Tilt) Roll Yaw(Pan) Mode To enter Standby mode while the gimbal is off, press the Power button for 4 seconds. The mode indicator light will turn on and a blue light will flash Mode1 Locked Following...
- Page 7 Size of Gimbal Wired control ６６ｍｍ １６７ｍｍ Wired control Standard 1/4 -20 thread hole on bottom Weight:465.5g (w/o battery and camera) Parameter Item Parameter *1/4 thread hole on the bottom for use with common accessories. Operating voltage 6.5V - 12.6V Wireless control kit (optional accessories) Operating current Standard 120mA...
