DETACHABLE WIRED CONTROL GIMBAL
USER MANUAL

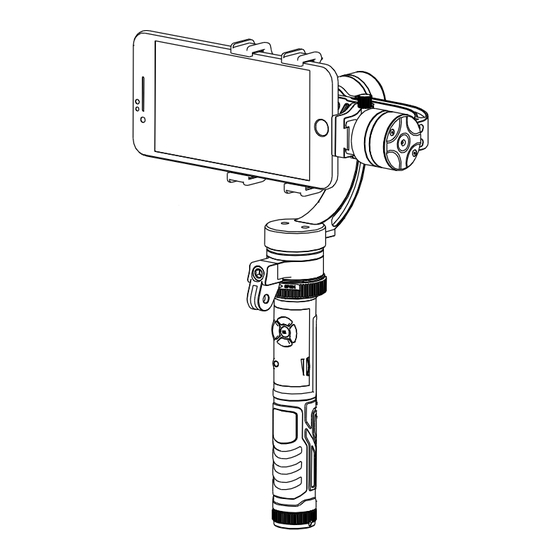

3-Axis Handheld Gimbal for Smartphone
Contact us for further questions
LA3D-S
LA3D-S
www.lanparte.com
LA3D-S manual
HONGKONG LANPARTE TECHNOLOGY LIMITED
Email:info@lanparte.com
Tel:+86-0769-81889368
Fax:+86-0769-85841828
ADD:NO.39 2nd Xin an road
Changan Town Dongguan Guangdong China
Advertisement
Table of Contents
Related Manuals for LANPARTE LA3D-S
Summary of Contents for LANPARTE LA3D-S
- Page 1 DETACHABLE WIRED CONTROL GIMBAL USER MANUAL 3-Axis Handheld Gimbal for Smartphone Contact us for further questions LA3D-S LA3D-S www.lanparte.com LA3D-S manual HONGKONG LANPARTE TECHNOLOGY LIMITED Email:info@lanparte.com Tel:+86-0769-81889368 Fax:+86-0769-85841828 ADD:NO.39 2nd Xin an road Changan Town Dongguan Guangdong China...
- Page 2 Appearance and Design Attention ! Be sure to install smartphone before turning on power Smartphone clamp (fits smartphones up to 3.1”wide) 1/4 -20 thread Pitch axis adjustment screw hole inside Counterweight...
- Page 3 Inverted Mode indicator Package Content Product Name Serial No. 3-Axis handheld gimbal platform Gimbal handle Mode indicator 18350 Li-ion battery Handle extender Wired control cable(1.5m) Mode Battery charger LEFT RIGHT Micro USB cable (For battery charger) Power DOWN Smartphone clamp indicator Speed Counter weight...
- Page 4 Operation Gimbal Basic Parameters 1. Standby mode : Press the power button to enter standby Rotation Angles mode. When in standby mode the signal light willturn blue and blink . 2.Operating Mode: To activate operating mode press the M button for 5 seconds. To go back to standby mode press the M button again for 5 seconds.
- Page 5 Platform Installation Mode Switching Operating Activating Mode Locked Control Mode Indicator axis Buttons Press M LEFT and RIGHT Green Roll Follow mode button once adjust roll axis Press M button UP and DOWN Semi-follow twice in less Pitch & Roll adjust pitch axis mode than 1 sec...
- Page 6 Battery Instructions Optional Accessories Please note that the nominal voltage of the LA3D gimbal is 7.4V. Each 18350 & 18650 battery is 3.7V. Therefore, the gimbal MUST operate on a maximum of TWO batteries. Batteries must be combined as per below scenarios: Scenario 1: Scenario 2: 3.7V + 3.7V = 7.4V...
- Page 7 Ｑuick Start Guide Battery and Charger Step 1: Connect the grip to the gimbal platform (align the white dots before turning the knob) Rechargeable battery Charging Indicator (Green light will appear once Step 2: Install smartphone into the clamp and adjust until it is balanced Model : 18350 Li-ion battery the battery is fully charged) horizontally and vertically...
- Page 8 For iPhone 6 plus, 6s plus and similar size smartphones a. Remove the counterweiter b and c same as above (except the counterweight) b. Now set the gimbal down.Make sure the counterweight is on the far left. Slide the phone left to right until it is horizontally balanced. the vertical axis adjustment screw c.
