AMERLUX
LIGHTING SOLUTIONS

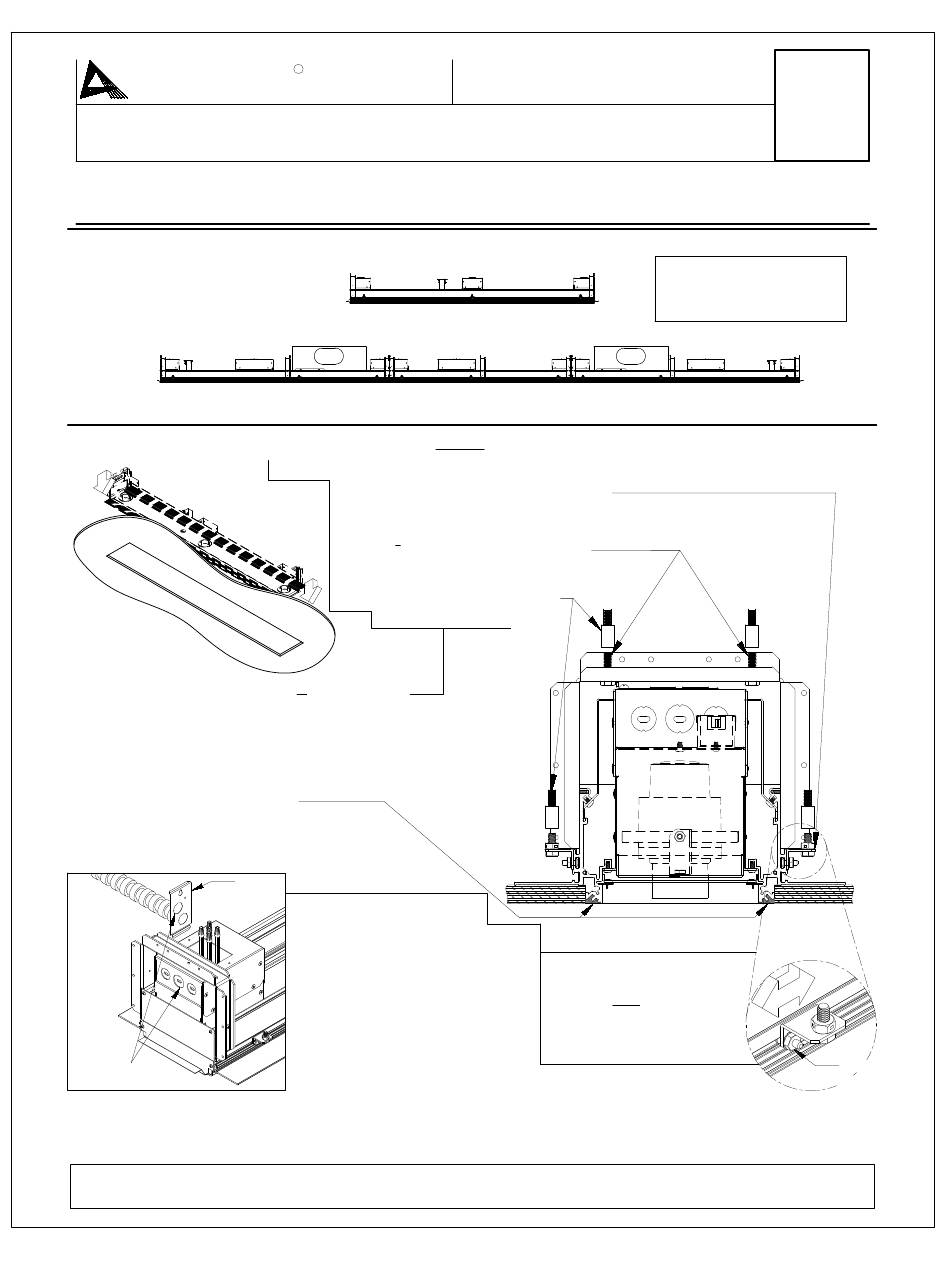

MESA
Gyp Board Ceiling
WARNING - RISK OF FIRE AND ELECTRICAL SHOCK. FIXTURE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN
ONLY. FIXTURE IS INTENDED FOR INSTALLATION IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE, LOCAL
AND FEDERAL SPEFCIFICATIONS. DISCONNECT POWER AT ELECTRICAL PANEL BEFORE SERVICING .

Suspension Points

Example of continuous row:
(Beginning of Row)
Individual Installalation -
1.
Hang the Fixture via threaded
rods. (Optional)
2.
Once the fixture is
secure, feed power source
(See Below.)
3.
Install Ceiling (By Others)
4.
Spackle in fixture (By Others)
Access
Plate
Choose
Feed Location
Amerlux, LLC. - 178 Bauer Drive, Oakland NJ 07436 - T: 973-882-5010 - F: 973-882-2605
R
ADAPT. ABILITY.
RETAIN THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE.
Example of IND (individual) fixture:
BoR
(Middle of Row)
Fixture MUST be mounted before ceiling is installed.

Hanging the Fixture Via Threaded Rods.* (Optional)

1.
Arrange adjustable suspension points to
desired location (Optional: See
below)
1
2.
Insert
-20 (M6x1 for International)
4
bolts and secure with nut.
(supplied by others)
3.
Secure to structure via coupling
(supplied by others)
SUPPORT METHOD
(SUPPLIED BY OTHERS)

Feeding Power

1: Remove Access Plate and
choose Feed Location
2: Remove Wire Nuts (If Applicable)
3: Splice in Feed to Fixture
(according to code)
4: Reattach Access Plate
Wires: Black - C1 Hot
White - C1 Neutral
Green: Ground
(2-Circuit Option)
Red - C2 Hot
White/Red - C2 Neutral
(0-10v Dim Option)
Red - Dim+ (Purple)
White/Red - Dim- (Gray)
(Power can be fed into ANY light module in run)
www.amerlux.com
INSTALLATION INSTRUCTIONS
TM
SHEET #:
689-0353
MoR
Adjusting Suspension Points
1: Loosen Keps Nuts
(Do NOT remove)
2: Slide Mount to desired
Location
3: Tighten Keps Nuts
SPEC. SHEET
REFERENCE:
MESA
Sheet 1 of 5
See submittal layout for
IND & row component
fixture lengths.
EoR
(End of Row)
(Optional)
Keps
Nuts
