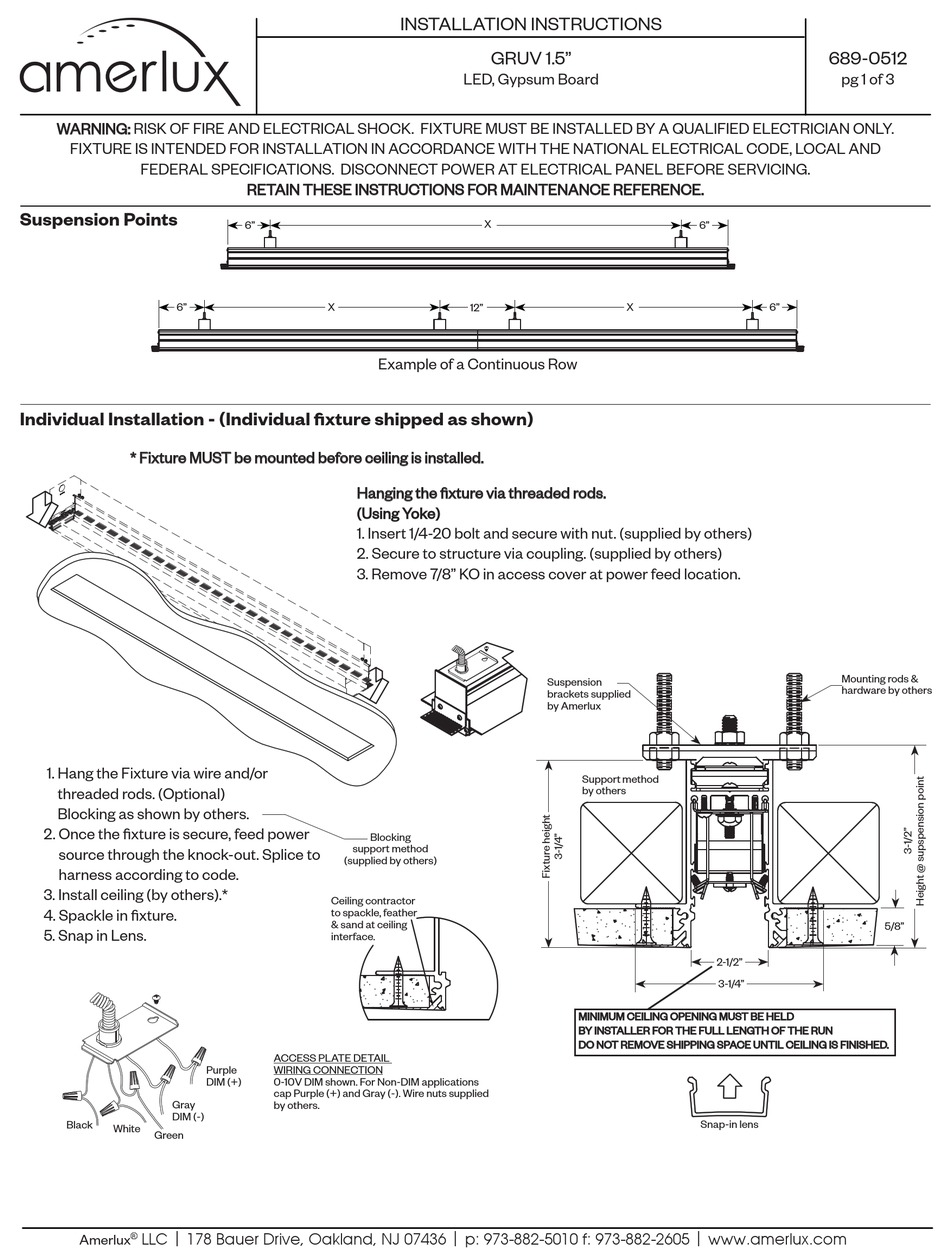

Amerlux GRUV 1.5” Installation Instructions

WARNING: RISK OF FIRE AND ELECTRICAL SHOCK. FIXTURE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN ONLY. WARNING:
FIXTURE IS INTENDED FOR INSTALLATION IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE, LOCAL AND
FEDERAL SPECIFICATIONS. DISCONNECT POWER AT ELECTRICAL PANEL BEFORE SERVICING.

Suspension Points

6"
Individual Installation - (Individual fi xture shipped as shown)
* Fixture MUST be mounted before ceiling is installed. * Fixture MUST be mounted before ceiling is installed.
1. Hang the Fixture via wire and/or
threaded rods. (Optional)
Blocking as shown by others.
2. Once the fi xture is secure, feed power
source through the knock-out. Splice to
harness according to code.
3. Install ceiling (by others).*
4. Spackle in fi xture.
5. Snap in Lens.
Gray
DIM (-)
Black
White
Green
LLC | 178 Bauer Drive, Oakland, NJ 07436 | p: 973-882-5010 f: 973-882-2605 | www.amerlux.com
®
Amerlux
RETAIN THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE. RETAIN THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE.
6"
X
Example of a Continuous Row
Hanging the fi xture via threaded rods. Hanging the fi xture via threaded rods.
(Using Yoke) (Using Yoke)
1. Insert 1/4-20 bolt and secure with nut. (supplied by others)
2. Secure to structure via coupling. (supplied by others)
3. Remove 7/8" KO in access cover at power feed location.
Blocking
support method
(supplied by others)
Ceiling contractor
to spackle, feather
& sand at ceiling
interface.
ACCESS PLATE DETAIL
Purple WIRING CONNECTION
DIM (+) 0-10V DIM shown. For Non-DIM applications
cap Purple (+) and Gray (-). Wire nuts supplied
by others.

INSTALLATION INSTRUCTIONS

GRUV 1.5"
LED, Gypsum Board
X
12"
Suspension
brackets supplied
by Amerlux
MINIMUM CEILING OPENING MUST BE HELD MINIMUM CEILING OPENING MUST BE HELD
BY INSTALLER FOR THE FULL LENGTH OF THE RUN BY INSTALLER FOR THE FULL LENGTH OF THE RUN
DO NOT REMOVE SHIPPING SPACE UNTIL CEILING IS FINISHED. DO NOT REMOVE SHIPPING SPACE UNTIL CEILING IS FINISHED.
6"
X
Support method
by others
2-1/2"
3-1/4"
Snap-in lens
689-0512
pg 1 of 3
6"
Mounting rods &
hardware by others
5/8"
