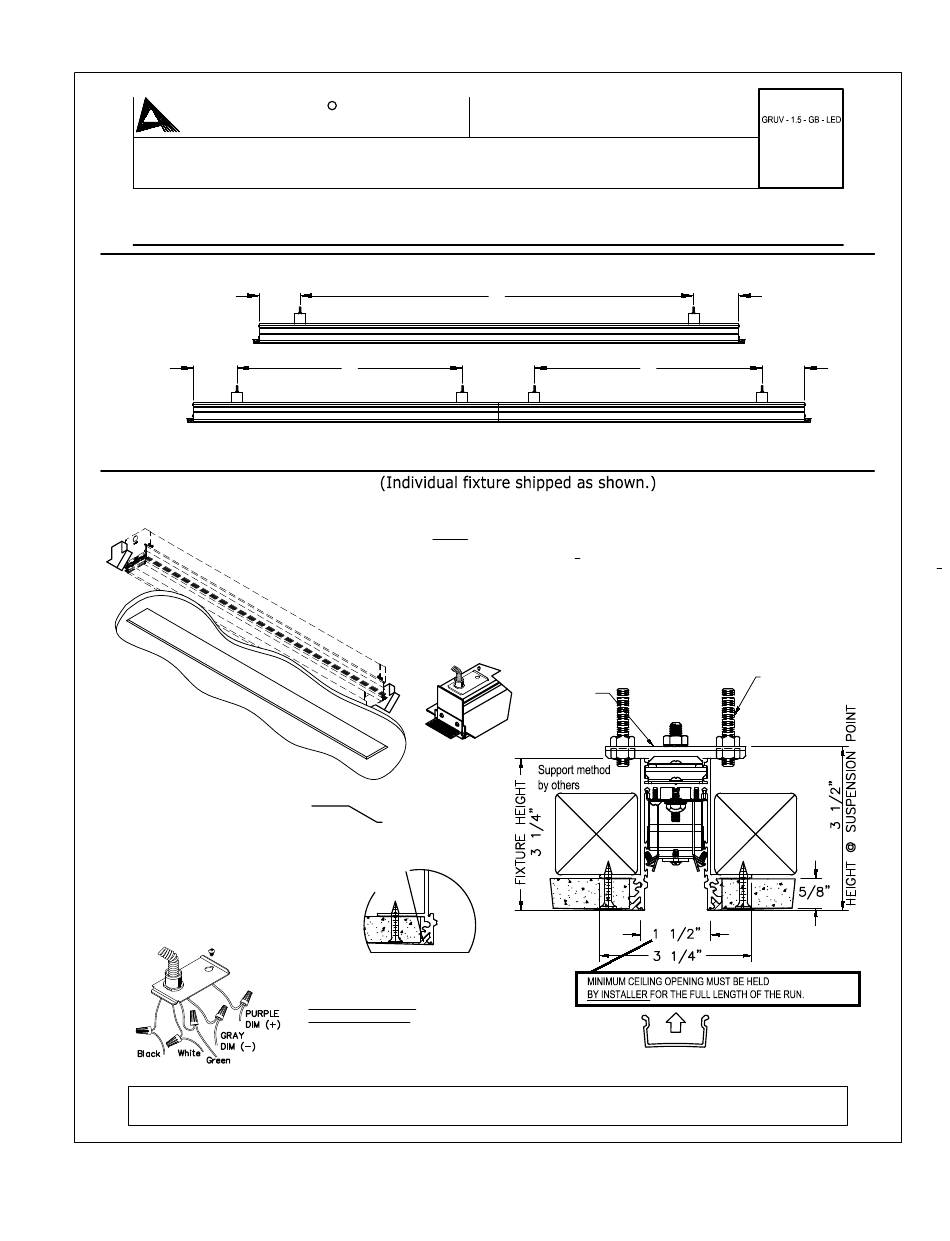

GRUV - 1.5 - GB-LED
Gyp Board Ceiling
WARNING - RISK OF FIRE AND ELECTRICAL SHOCK. FIXTURE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN
ONLY. FIXTURE IS INTENDED FOR INSTALLATION IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE, LOCAL
AND FEDERAL SPECIFICATIONS. DISCONNECT POWER AT ELECTRICAL PANEL BEFORE SERVICING .
Suspension Points
6.00"
6.00"
Individual Installation -
1. Hang the Fixture via wire
and/or threaded rods. (Optional)
BLOCKING as shown by others.
2. Once the fixture is secure, feed
power source through the knock-out.
Splice to harness according to code.
3. * Install ceiling (By Others)
4. Spackle in fixture.
5. Snap-in LENS.
Amerlux, LLC. - 178 Bauer Drive, Oakland NJ 07436 - T: 973-882-5010 - F: 973-882-2605
R
ADAPT. ABILITY. TM
RETAIN THESE INSTRUCTIONS FOR MAINTENANCE REFERENCE.
X
Example of a continuous row
Hanging the Fixture Via Threaded Rods. (Using Yoke)
*: Fixture MUST be mounted before ceiling is installed.
BLOCKING
SUPPORT METHOD
(SUPPLIED BY OTHERS)
Ceiling contractor
to spackle, feather
and sand at ceiling
interface.
ACCESS PLATE DETAIL
WIRING CONNECTION
0-10V DIM shown. For non-DIM applications
cap Purple (+) and Gray (-). Wire nuts
.
supplied by others
www.amerlux.com
INSTALLATION INSTRUCTIONS
SHEET #: 689-0512 (1 of 5)
X
12.00" X
1
1. Insert -20 Bolt and secure with nut.
4
(supplied by others)
2. Secure to structure via coupling
(supplied by others)
3. Remove 7/8" KO in access cover at
power feed location.
Suspension
brackets
supplied
by Amerlux
SNAP IN LENS
SPEC. SHEET
REFERENCE:
6.00"
6.00"
Mounting rods and
hardware by others
