ADC 10 User Manual page 5

RJ45
CONNECTOR
OPTICAL
RECEIVE
OPTICAL
TRANSMIT
SIGNAL COLOR
TP Link YELLOW Auto negotiation complete, link status 10 Mb/s is OK.
GREEN
OFF
Link YELLOW Auto negotiation complete, link status 10 Mb/s is OK.
GREEN
OFF
PWR GREEN
OFF
CONTROL DESCRIPTION
Reset If module supply voltage drops below a predetermined value the module shuts down,
pressing the reset button restarts the module.
Any blinking of a Link LED indicates auto-negotiation in process. If a Link LED continues to
blink for more than 30 seconds then the operation of the far end device (i.e., duplex and speed)
needs to be verified or changed.

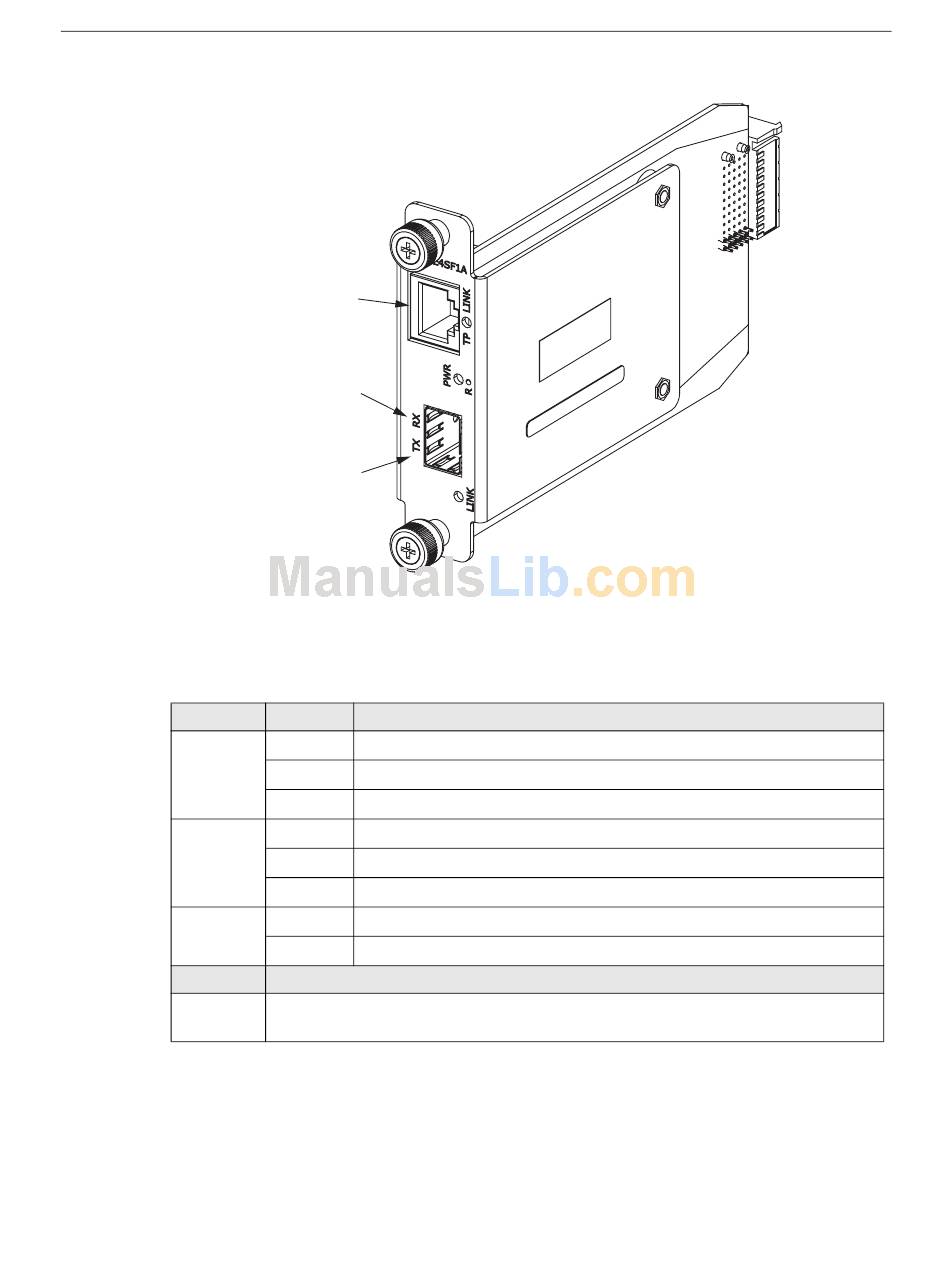

Figure 2. OptEnet Media Converter Converter
Table 2. Module LED Indicators
STATUS
Auto negotiation complete, link status 100 Mb/s or 1000 Mb/s is OK.
Link status failed or no Ethernet detected.
Auto negotiation complete, link status 100 Mb/s or 1000 Mb/s is OK.
Signal detect de-asserted, link status FAIL.
Module Power OK
Module Power OFF
ADCP-92-063 • Issue 1 • May 2005
20460-A
© 2005, ADC Telecommunications, Inc.
Page 5
