Description
Thank you for purchasing our digital product DecaLED
controller with DMX 512/PWM output. Its compact and portable design is convenient to mount and easy to
operate for users.
Package contents
1 x DecaLED
Touch Panel DMX 4
®
1 x Manual
Carefully unpack the carton. Check the contents to ensure that all parts are present and have been received
in good condition. If any parts appear damaged or missing, notify the shipper immediately and retain packing
material for inspection. In the event that the fixture must be returned to the factory, it is important that the
fixture is returned in the original factory box and packaging.
Safety Instruction
•
Unplug mains before installing or wiring the fixture
•
Never look directly into the light source
User must be qualified to be involved with installation and maintenance of this product.
User must follow the safety instructions and warning notes written in this manual.
Features
•
Touch interface
•
DMX 512/PWM output
DecaLED
Touch Panel DMX 4 uses RGB three channels, 2A per channel, 6A in total.
®
Red is controlled by channel 1, 4, 7...
Green is controlled by channel 2, 5, 8...
Blue is controlled by channel 3, 6, 9...
•
LED indicator to display the current output
•
Four function menus
•
Assign 4 color settings to shortcuts
•
Assign 4 selections of adjustable (speed and brightness) color loops
•
Set fadetime for Power on/off and color exchange in the range of 0 to 4s
•
Assign key tone ON/OFF
www.decaled.com
•
Select input voltage in DC12-24V according to the output loading voltage
•
Function memory and power failure protect

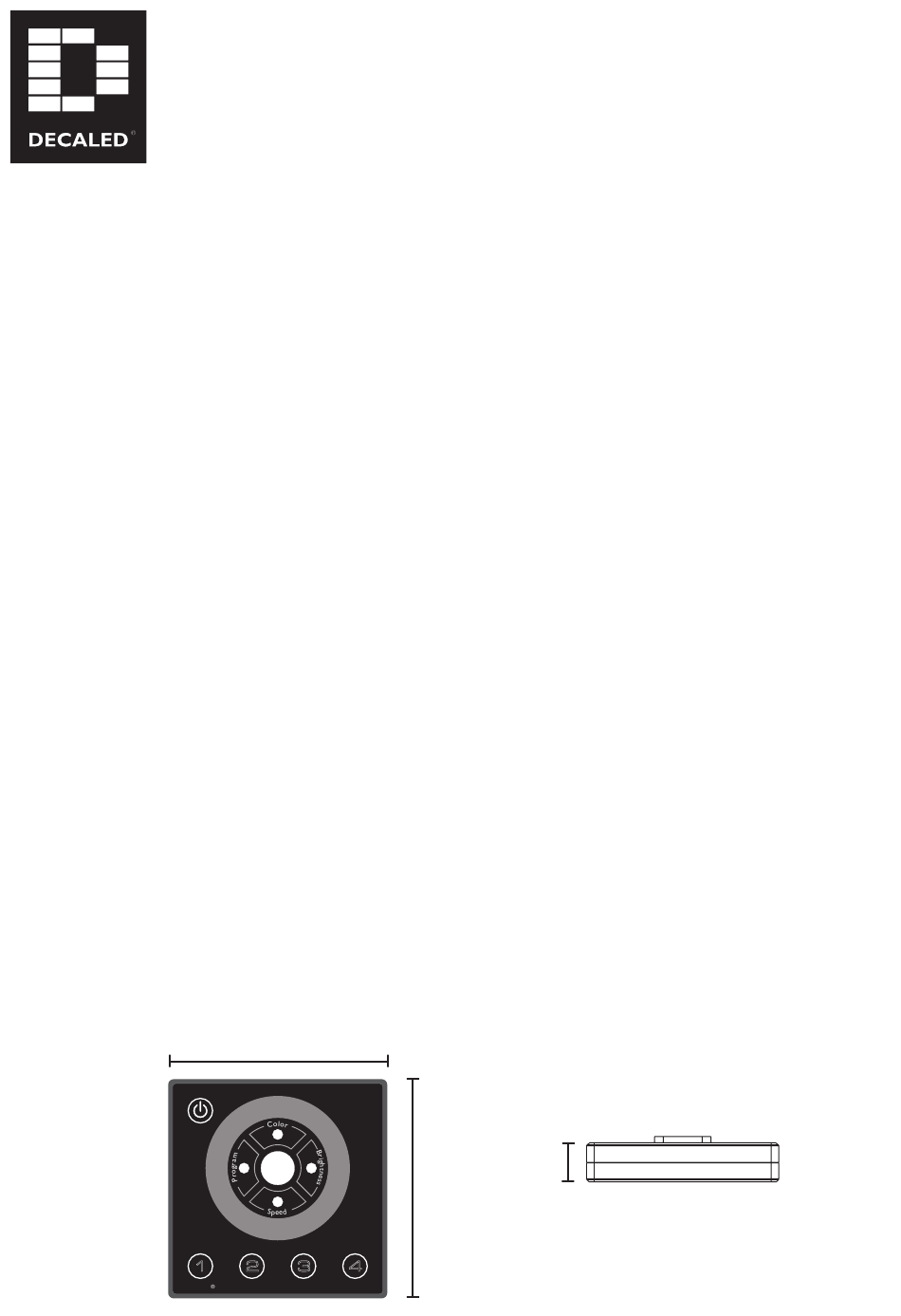

Physical dimensions
Touch Panel DMX 4
DecaLED
86
86mm
1
2
3
4
DecaLED Touch Panel DMX 4
- Product code: 95760822
Product Code:95760822
Touch Panel DMX 4
®
Touch Panel DMX 4. You now hold a premiere LED
®
15.5mm
86mm
95760822
Manual
Advertisement
Table of Contents
Related Manuals for DecaLED Touch Panel DMX 4
Summary of Contents for DecaLED Touch Panel DMX 4
- Page 1 Touch interface • DMX 512/PWM output DecaLED Touch Panel DMX 4 uses RGB three channels, 2A per channel, 6A in total. ® Red is controlled by channel 1, 4, 7... Green is controlled by channel 2, 5, 8... Blue is controlled by channel 3, 6, 9...
- Page 2 Touch Panel DMX 4 User Instruction The DecaLED Touch Panel DMX 4 features one group DMX OUT with 4-pin terminal connector and one group ® POWER IN & PWM OUT with 6-pin terminal connector. Also a LINK IN and LINK OUT is available.
- Page 3 1. ON/OFF DecaLED Touch Panel DMX 4 can be connected to a DC power at any voltage from 12V to 24V. When the ® indicator of POWER button lights up, the unit powers on and resumes the output setting of last time.
- Page 4 NOTE: In the process of adjusting brightness and speed, the toggle produces clicks. However, the click disappears when the toggle reaches the maximum/minimum value. 5. Color To enable Color Menu, hold on pressing the “Color” key for about 1s, the key clicks and the indicator lights up. Then rotate the touch toggle to adjust the RGB value until you get the desired color.
- Page 5 To lock scene record, touch “Speed” key and “Program” key simultaneously and hold on for about 10 seconds. At this time, the “Speed” key is not valid. Besides, the figure keys1~4 can play back saved scenes only, but can not record scenes. To unlock scene record, touch “Program”...
