Description

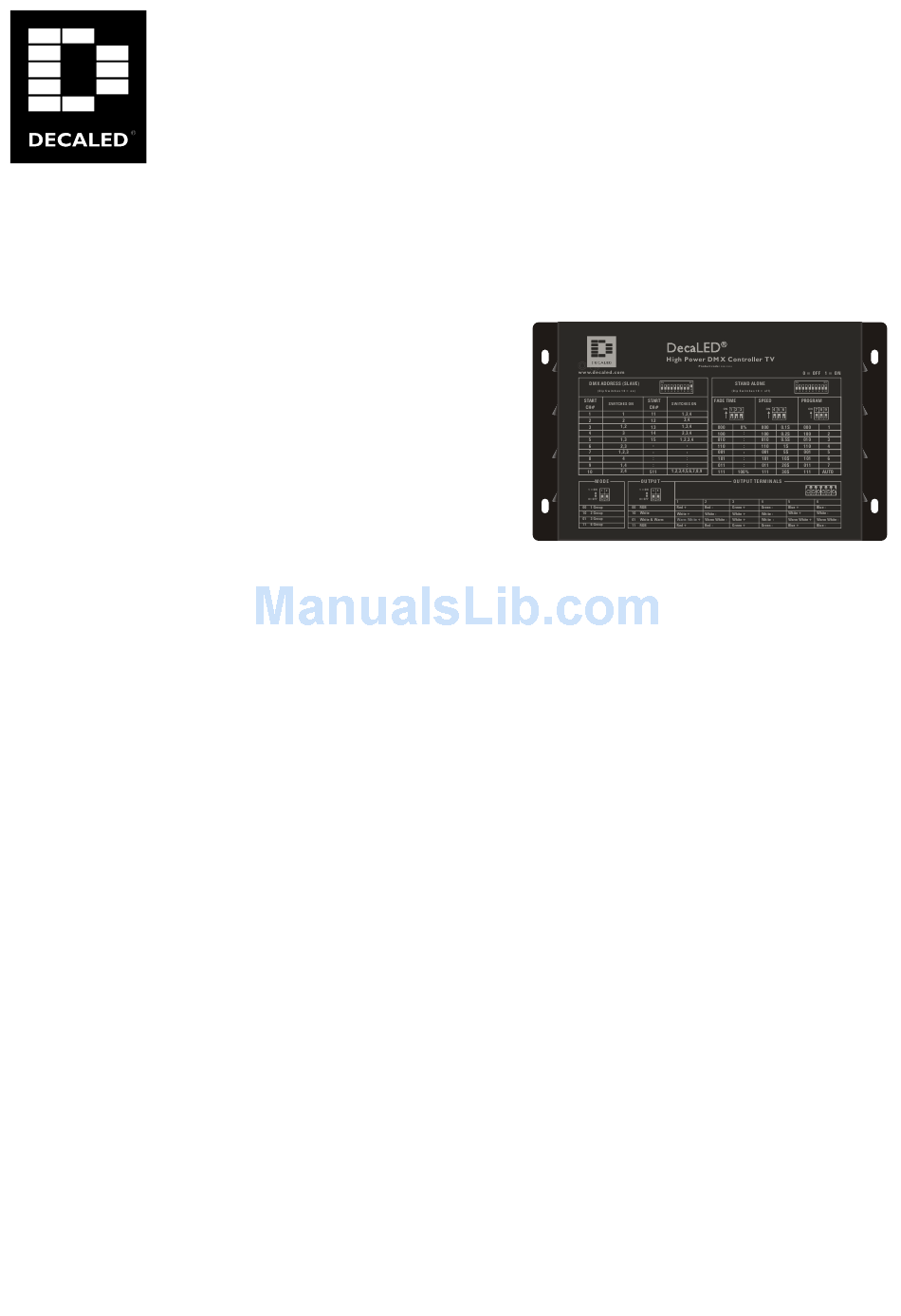

The DecaLED
High Power DMX Controller TV offers a solution for controlling all dimmable 1 Watt Power LED
®
products. The DecaLED
interference to cameras.
Package contents
1 x DecaLED High Power DMX Controller TV
1 x Manual
Carefully unpack the carton. Check the contents to ensure
that all parts are present and have been received in good
condition. If any parts appear damaged or missing, notify
the shipper immediately and retain packing material for
inspection. In the event that the fixture must be returned to
the factory, it is important that the fixture is returned in the
original factory box and packaging.
Safety Instruction
•
The ground connection should be essential for this unit.
•
Do not make any inflammable liquids, water or metal objects enter the unit.
•
To prevent or reduce the risk of electric shock, do not open the top cover.
•
This unit must be operated by adults, to not allow children to play with it.
•
There are no user serviceable parts inside this unit. Do not attempt any repairs yourself.
•
Should you experience any problem during use, please contact your local dealer immediately.
•
Do not discard the shipping carton in the trash. Please recycle when ever possible.
•
Always consult authorized personell for any repairs and maintenance.
Features
•
USITT Standard DMX-512 (1990) multiplexed digital control, via 3-pin XLR connector and terminals.
•
DMX Control Mode and Stand Alone Mode available.
•
1~7 patterns plus a sequence of 7 patterns, chase speed and fade time adjustable.
•
Different Ouput Group modes for user assignable.
•
Output loading modes available in RGB mode, WHITE mode and COOL WHITE & WARM WHITE mode.
•
Manual Dim mode allows to control overall output intensity.
•
Full range voltage of AC 110-120V / AC 220-240V power input option by voltage selector.
•
Providing built-in DC24V 6.5A / 48V 3.2A PSU.
•
Power Failure Memory.
Installation
Connecting the power supply
Before plugging your unit in, be sure the voltage in your area matches the required voltage for you The
DecaLED
High Power DMX Controller TV power supply. The DecaLED
®
available in a 120V and 230V version. Due to variations in line voltage from venue to venue, be sure to plug
your power supply into a wall outlet with matching power before attempting to operate.
Data cable (DMX cable) requirements
Connect the DecaLED
DecaLED
High Power DMX Controller TV uses the DMX-512 protocol to operate your fixtures.
®
DecaLED
High Power DMX Controller TV is also ideally suited to use in TV studios, as it causes no
®
High Power DMX Controller TV and you fixtures using standard 3-pin DMX cables. The
®
High Power DMX
®
Controller TV
High Power DMX Controller TV is
®
95312351
Manual
Advertisement
Related Manuals for DecaLED 95312351
Summary of Contents for DecaLED 95312351
- Page 1 Installation Connecting the power supply Before plugging your unit in, be sure the voltage in your area matches the required voltage for you The DecaLED High Power DMX Controller TV power supply. The DecaLED High Power DMX Controller TV is ® ® available in a 120V and 230V version. Due to variations in line voltage from venue to venue, be sure to plug your power supply into a wall outlet with matching power before attempting to operate.
- Page 2 If you want to construct your own data cables, be sture to use standard two conductor shielded cable (this cable may be purchased at almost all professional sound and lighting stores). Your cables should be made with a 3-pin male and female XLR connector on either end of the cable. Also remember that DMX lines must be daisy chained and can not be split.
- Page 3 Front panel layout Dip-switches (10-way and 6-way) Flip 10-way and 6-way dip-switches to set some functions and modes for user’s desired effects. DMX input 3-pin XLR male connector or terminal. Connect a universal DMX controller into this input for receiving DMX values or DMX signals. DMX output 3-pin XLR female connector or terminal.
- Page 4 2.Full DMX Control Mode In this mode, the Dip Switch 11(2 -digit function Dip Switch 2.Full DMX Control Mode is flipped to the " " position, the Dip Switch 10( 10-digit Operation guide addressing Dip Switch ) is to the " "...
- Page 5 1.2.3 Selecting built-in programs Enable Stand Alone Mode. Flip dip-switches 7, 8 and 9 (10-way function dip-switch) to select the desired program. 1.2.4 Output Group Mode Setting In this function, the dip-switches 1 and 2 (6-way mode dip-switch) are used to set your desired Output Group mode. 1.) 1 Group Output Mode is engaged by flipping the dip-switches 1 and 2 to the “OFF”...
- Page 6 1.2.6 Manual Dim Mode The Manual Dim Mode allows to manually control the overall output intensity. Flip dip-switch 6 of the 6-way Mode Dip-switch to the “ON” position to engage the Manual Dim Mode. In this function, the dip-switched 1~8 of the 10-way Function Dip-switch are used to set the overall output intensity. Each dip-switch represents a binary value.
