Installation
Wireless Modem
What's included

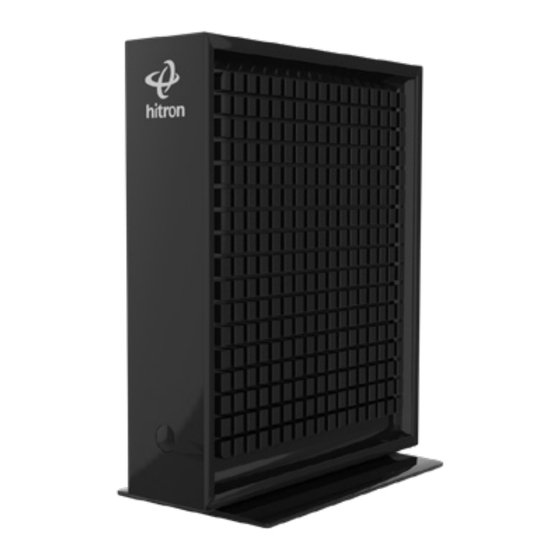

Hitron Wi-Fi modem
Step 1:
Set up and plug in your modem.
A.
Attach the ends of the coax cable to your modem and an active coax outlet.
B.
Attach the power cord to the modem, then to an active electrical outlet.
C.
Your modem indicator lights will begin to turn on. Once the 2 blue lights are solid
and the @ symbol on the front of the modem appear, the Internet is ready to be connected.
Tip: Try to place your modem in a central location in your home. Avoid placing your modem in basements, in cabinets, or behind
other objects. Try to keep your modem away from household appliances, metal or stainless steel objects, and electrical equipment.
Guide
Power cord
Coax cable
Ethernet cable
Coax splitter
(Optional)
(Optional)
Advertisement
Related Manuals for Access Hitron
Summary of Contents for Access Hitron
- Page 1 Installation Guide Wireless Modem What’s included Hitron Wi-Fi modem Power cord Coax cable Ethernet cable Coax splitter (Optional) (Optional) Step 1: Set up and plug in your modem. Attach the ends of the coax cable to your modem and an active coax outlet.
- Page 2 Power Light Will flash for a moment at the start of the boot process, then remain solid. Upstream Light Will flash green for a few minutes, and then go Downstream Light solid blue. Will flash green for a few minutes, then go Lock Light solid blue.
- Page 3 Installation Tips: If you want to use one coax outlet for both your modem and another device (such as a TV set-top box), use a coax splitter. Make sure the coax wall outlet is connected to the IN port of the splitter. The 2 OUT ports are to be connected to the modem and other device.
