VOSS.farming impuls duo DV RF
VOSS.farming impuls duo DV
VOSS.farming impuls duo
DV 40 DV 80 DV 120 DV 160
DV 40 RF DV 120 RF DV 160 RF *
Elektrozaungerät
Energiser
Electrifi cateur de clôture
Elettrifi catore
Schrikdraadapparat
Elstängselaggregat
Pastor eléctrico
* RF models including
antenna & remote control
Advertisement
Related Manuals for VOSS.farming Impuls duo DV 40
Summary of Contents for VOSS.farming Impuls duo DV 40
- Page 1 VOSS.farming impuls duo DV RF VOSS.farming impuls duo DV VOSS.farming impuls duo DV 40 DV 80 DV 120 DV 160 DV 40 RF DV 120 RF DV 160 RF * Elektrozaungerät Energiser Electrifi cateur de clôture Elettrifi catore Schrikdraadapparat Elstängselaggregat Pastor eléctrico * RF models including antenna & remote control...
- Page 2 Manufacturer: VNT electronics s.r.o., Dvorská 605, 56301 Lanškroun, Czech Republic Authorised dealer : VOSS GmbH & Co. KG, Ohrstedt-Bhf. Nord 5, 25885 Wester-Ohrstedt, Germany Service: VOSS GmbH & Co. KG, Logistics Centre, Ole Bahndamm 2, D- 25884 Viöl...
- Page 3 Bedienungsanleitung Elektrozaungerät Operating Instructions Electric Fence Energiser Mode d‘emploi Électrificateur de clôture Istruzioni per l‘uso dell‘Elettrificatore Gebruiksaanwijzing Schrikdraadapparat Bruksanvisning Elstängselaggregat Bruksanvisning Elstängselaggregat VOSS.farming impuls duo 41310 / 41420 DV 40 / DV 40 RF 41320 DV 80 41330 / 41450 DV 120 / DV 120 RF 41340 / 41460 DV 160 / DV 160 RF...
- Page 4 1. YOUR NEW VOSS.farming impuls duo 2. HOW DOES AN ELECTRIC FENCE WORK? 3. INSTALLATION AND CONNECTION 4. GROUNDING 5. THE IDEAL FENCE 6. RADIO REMOTE CONTROL (RF models only) 7. INITIAL SETUP 8. MAINTENANCE AND CLEANING 9. SAFETY TIPS 10.

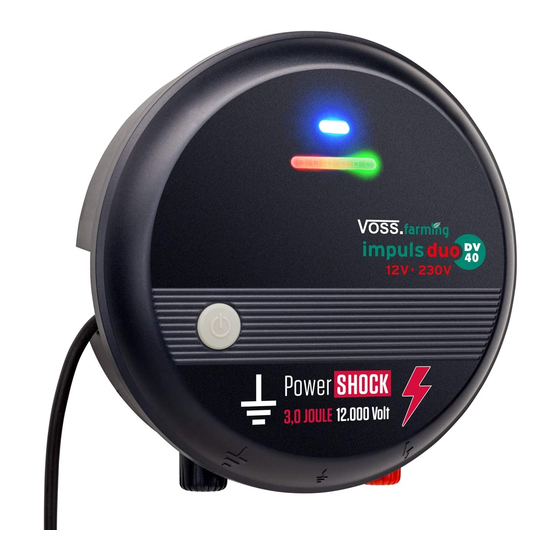

- Page 5 VOSS.farming impuls duo. This manual contains important safety instructions, tips and information. The VOSS.farming impuls duo can be operated via a 12V battery or via a 230V mains ad- apter. The energiser constantly checks the voltage on the fence and adjusts the output automatically.
- Page 6 Energisers with shock strength of more than 5 joules The VOSS.farming impuls DUO DV 160 / DV 160 RF is capable of an output of over 5 joules. A delay in the increase of performance guarantees your safety (EN 60335-2-76 A12:2010).
- Page 7 2. HOW DOES AN ELECTRIC FENCE WORK? The VOSS.farming impuls duo is the heart of your fence. It generates electrical pulses at regular intervals. The unit is connected to the ground (“grounding”) and the conduct- ing material of your fence.
-
Page 8: Installation And Connection
Avoid ground contact with battery cable to prevent damage to the unit. TIP: Before you connect the VOSS.farming impuls duo to your fence, you can test the energiser. Unscrew the two terminal nuts (6 and 7) and connect the device to a power source. - Page 9 of the other terminal. Just before the tip of the screwdriver touches the second terminal, you should see a small, harmless spark. If the control LED (3) or the LED bar (4) do not light up and/or there is no spark, then check the power supply fi rst: connection to mains or battery voltage.
- Page 10 We recommend using the cable with item no. 33615 for connecting the grounding posts. With optimal grounding, the VOSS.farming impuls duo can operate at its maxi- mum capacity and ensure your fence provides the best possible security. TIP: Where soil conditions are poor with low conductivity, we recommend using an ad- ditional 2 or 3 grounding posts spaced about 2–3 m apart.
- Page 11 6. Radio remote control (RF models only) Our Impulse DUO RF energisers come with a remote and an antenna to control, mana- ge and operate your device remotely. The effective range is up to 10 km depending on topographical conditions. 1 sound 2 remote battery indicator 3 signal strength...
-
Page 12: General Operation
GENERAL OPERATION The Impuls DUO RF models work similarly to the Impuls DUO, but additional functions have been added for communication between the energiser and the remote control. If the energiser is completely switched off and no lights are seen, hardly any energy is consumed. - Page 13 If the calibration fails, please try again. If you want to unassign an identification number in the remote control, start the calibration process, but without the energiser. If the remote control does not find the energiser, it deletes this position. To exit the calibration mode, briefly press the power button on the remote control (15).
- Page 14 Letter „A“ - you can switch the alarm signal of your remote control on or off. Under the letter „U“, select the interval for updating the data of your energiser. An empty round arrow is an interval of 1 minute. A round arrow with an „i“ in the middle is an in- terval of 1 hour (this consumes less energy and keeps your battery longer).
- Page 15 7. INITIAL SETUP: NOTE: The following steps will help you activate the energiser. Your fence will then be live. Make sure that there are no people or animals near the fence. When the energiser is connected to the fence it constantly checks for faults. If the LED bar (4) is red, there is a fault on the fence.
-
Page 16: Maintenance And Cleaning
8. MAINTENANCE AND CLEANING Always turn off the VOSS.farming impuls duo and unplug it from the mains when performing maintenance and cleaning work. The unit does not require regular mainte- nance, but you should inspect it visually on a regular basis. Check all cables and lines for damage. - Page 17 metallic objects (such as water pipes and troughs), especially in areas where people may be present. • If there is a danger of flooding around the electric fence, stop using the energiser. • If the pulse interval is less than 1 second, shut down the energiser immediately and have it repaired if necessary.
-
Page 18: Practical Tips
fewer materials are required, alterations are easily made, it is suitable for a very wide range of animals and offers a great deal of protection against injury. OPERATING PRINCIPLE OF THE ELECTRIC FENCE ENERGISER The electric fence energiser emits an electrical pulse through the fence about once every second. - Page 19 Where there are two separate electric fences, each supplied by a separate energiser, the distance between the wires of the two fences must be at least 2.5 m. If this gap between the fences must be closed off, then this must be done using non-conducting materials or an insulated metal barrier.
- Page 20 influences (such as animal hooves, tractor wheels, etc.) that sink into the soil. Connecting lines may not be installed in the same protective pipes as mains and supply cables, communication or data lines. Connecting cables and wires belonging to electric fences may not be laid above high- voltage or communications cables.
- Page 21 Cardiac arrest and atrial fibrillation There is little chance that a person in contact with an electric fence may experience cardiac arrest or fibrillation. – Interesting fact: the synchronisation of the electric fence energiser impulse with the pulse can prevent cardiac arrest and atrial fibrillation. Loss of muscle control Incorrectly installed high power electric fences may cause an electric shock resulting in loss of muscle control.
- Page 24 Manufacturer: VNT electronics s.r.o., Dvorská 605, 56301 Lanškroun, Czech Republic Authorised dealer : VOSS GmbH & Co. KG, Ohrstedt-Bhf. Nord 5, 25885 Wester-Ohrstedt, Germany Service: VOSS GmbH & Co. KG, Logistics Centre, Ole Bahndamm 2, D- 25884 Viöl...
- Page 25 Version 2019 - 07 Manufacturer: VNT electronics s.r.o., Dvorská 605, 56301 Lanškroun, Czech Republic Authorised dealer : VOSS GmbH & Co. KG, Ohrstedt-Bhf. Nord 5, 25885 Wester-Ohrstedt, Germany Service: VOSS GmbH & Co. KG, Logistics Centre, Ole Bahndamm 2, D- 25884 Viöl...
