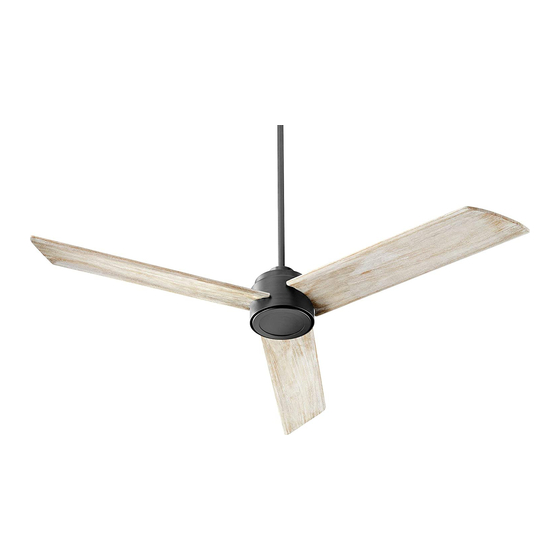

THE TRIO CEILING FAN
INSTALLATION INSTRUCTIONS
Please read and save these instructions
These instructions are to be used in
the installation of the following
QUORUM INTERNATIONAL fans...
The Trio
© 2019 Quorum International. All Rights Reserved.
IO280-08/19
P.O.Box 961008 Fort Worth, TX 76161 (817) 626-5483
FAX (817) 626-5540
Advertisement
Table of Contents
Related Manuals for QUORUM INTERNATIONAL The Trio
Summary of Contents for QUORUM INTERNATIONAL The Trio
- Page 1 Please read and save these instructions These instructions are to be used in the installation of the following QUORUM INTERNATIONAL fans... The Trio © 2019 Quorum International. All Rights Reserved. IO280-08/19 P.O.Box 961008 Fort Worth, TX 76161 (817) 626-5483 FAX (817) 626-5540...
-
Page 2: Warranty & Service
QUORUM'S UNIQUE LIMITED LIFETIME WARRANTY This warranty gives you specific legal technical skill, competence, or experience superior product if the defective unit is of the user. rights, and you may also have other rights returned prepaid to us. which vary from state to state. 8. -
Page 3: Safety Rules
1. SAFETY RULES Model #35603-xx: 14.17 lbs 10. Do not attempt to control the 1. To avoid possible electric shock, turn 5. The outlet box and ceiling support operation of the fan (or an optional light off the electricity at the main fuse box or joist used must be securely mounted, and kit) from any wall control that is not circuit panel before you begin the fan... -
Page 4: Mounting Options
3. MOUNTING OPTIONS 1. Disconnect the power by removing fuses WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY, or turning off circuit breakers. MOUNT THE FAN ONLY TO AN OUTLET MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. -
Page 5: Hanging Your Fan
4. HANGING YOUR FAN WARNING -Turn off the power! Fig. 5 Fig. 7 1. If not already affixed to the hanger bracket, place the rectangular rubber isolators between the hanger bracket and outlet box. Secure the hanger bracket to the outlet box Cross pin Supply wires using the 2 long steel screws supplied with... -
Page 6: Electrical Connections
5. ELECTRICAL CONNECTIONS REMEMBER -Turn off the power! NOTE - Control must be installed within 30 feet of fan. REMEMBER -Turn off the power! Use the wire nuts supplied with your fan If your junction box has a ground wire Use ONLY wall controls approved by when making connections. - Page 7 6. COMPLETING INSTALLATION 1. Make sure the wiring is safely inside the Fig. 10 Fig. 13 outlet box as instructed in Step 5 - Electrical Connections. To install the Outlet box canopy, slide the canopy up to hanger bracket and place the key hole on the Hanger canopy over the screw on the hanger bracket...
- Page 8 7. INSTALLING THE WALL CONTROL REMEMBER -Turn off the power! NOTE - Control must be installed within 30 feet of fan. Fig. 15 1. Remove the existing wall plate and 3. (Fig. 15) Carefully tuck the wire switch from the wall junction box. connections inside the junction box.
- Page 9 OPERATING TRANSMITTER YOUR (continued) NOTE: If multiple fans are installed on The receiver provides the following If a room has two fans installed, each fan protective function: will need it’s own wall control. A single the same circuit, each fan must have it’s control CAN NOT control more than one own switch leg.
-
Page 10: Troubleshooting
10. TROUBLESHOOTING FAN WILL NOT START 3. Use of a standard light rheostat or an EXCESSIVE WOBBLE 1. Check that the electricity has been Note: A small amount of wobble is unapproved fan wall control to control the turned on at the circuit breaker which had fan speed will always cause an annoying considered acceptable and should not be probably been turned off during...
