INTRODUCTION

Congratulations on selecting the Vector® Model VEC016 Compact Jump Starter and DC Power
System. It can jumpstart most vehicles or boats with a standard 12 volt DC electrical system:
boat, small truck, car, airplane, RV, personal watercraft, snowmobile, tractor, etc. Note that this
jump starter is extra safe compared to others because it has a Safety Power Switch and a self-
contained Audible Polarity alarm that sounds when the cable clamps are connected to incorrect
polarity.
This advanced design is perfect for work during emergencies and it can also enhance your fun
by powering DC appliances to 15 amperes on the road, at the beach and at camp. Be sure to
read and understand all WARNINGS and CAUTIONS before using this product. Please read
this guide carefully before use to ensure optimum performance and avoid damage to the sys-
tem or items that you are using it with.
The built-in work/area light is invaluable when it becomes necessary to locate battery terminals
while preparing to jump-start a dead battery in the dark.
It is also ideal for use with Vector(tm) 12 volt DC cordless, portable, rechargeable appliances
with ratings up to 15 amperes. For information about Vector appliances, contact Vector
Manufacturing at 866-584-5504 (toll free) for the location of the nearest retailer.
The unit has an easy-to-read, series of LEDs (Light Emitting Diodes) arranged as a Charge
Status Display that shows the level of charge in the battery (from Low to Full). The Charge Status
Display activates whenever the Charge Status Pushbutton is pressed or automatically during AC
recharge operations. One 12-volt DC cigarette lighter-type (accessory) socket is provided for
use with appliances that can operate from a cigarette lighter type accessory socket. The DC
accessory socket allows for DC recharge from a vehicle or other 12 volt source. Note that the
exposed electrical socket and recharge port has a cover that help keep out dirt, dist and
moisture. All covers must be open for socket or port use and closed after use.

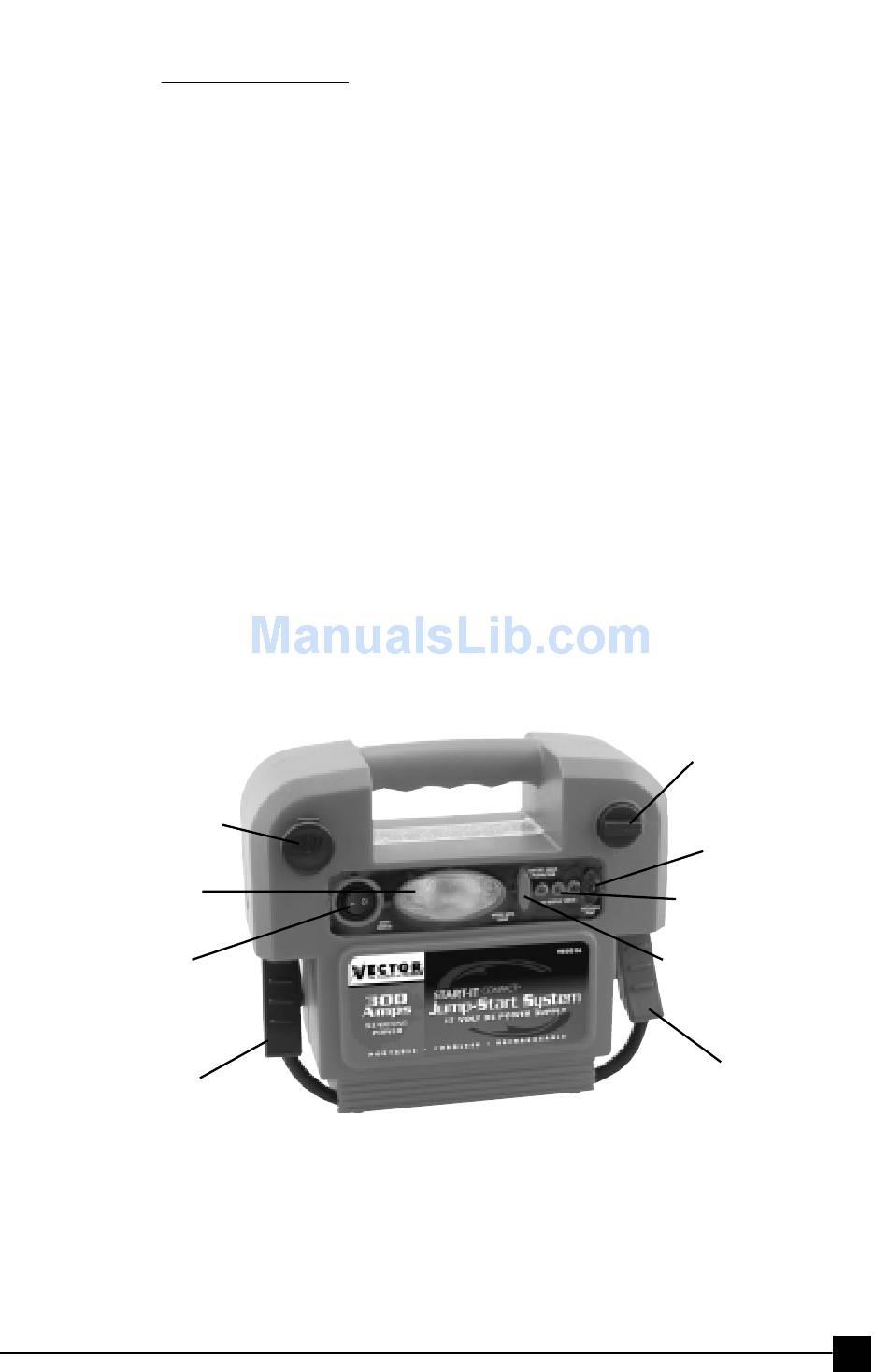

FIGURE 1
