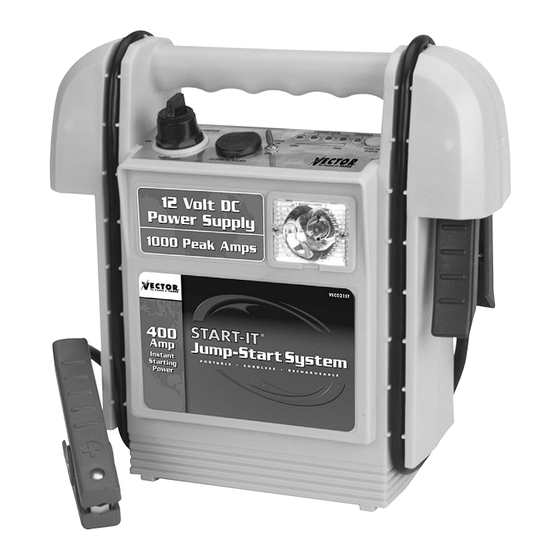

Vector START-IT VEC021ST Owner's Manual

Jumpstart system & power supply portable, cordless, rechargeable 12-volt dc power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

VEC021ST
START-IT
™
JUMPSTART SYSTEM & POWER SUPPLY
PORTABLE, CORDLESS, RECHARGEABLE 12-VOLT DC POWER SUPPLY
COMPLETELY
PORTABLE,
SAFE AND
CONVENIENT
INCLUDES INSTRUCTIONS FOR 110 VOLT AC POWER INVERTER OPTION
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS
PRODUCT. BEFORE USE, READ AND UNDERSTAND ALL CAUTIONS, WARNINGS, INSTRUCTIONS AND PRODUCT LABELS, PLUS YOUR VEHICLE'S
BATTERY MANUFACTURER GUIDELINES. FAILURE TO DO SO COULD RESULT IN POSSIBLE INJURY OR PROPERTY DAMAGE.
OWNER'S MANUAL
4140 S.W. 28th Way, Ft. Lauderdale, FL 33312
Tel: (954) 584-4446 Fax: (954) 584-5556
Toll Free: (866) 584-5504
www.vectormfg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the START-IT VEC021ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vector START-IT VEC021ST

Summary of Contents for Vector START-IT VEC021ST

  • Page 1 VEC021ST START-IT ™ JUMPSTART SYSTEM & POWER SUPPLY PORTABLE, CORDLESS, RECHARGEABLE 12-VOLT DC POWER SUPPLY COMPLETELY PORTABLE, SAFE AND CONVENIENT INCLUDES INSTRUCTIONS FOR 110 VOLT AC POWER INVERTER OPTION THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT.

  • Page 2: Table Of Contents

    WARNINGS ................1 CAUTIONS .
  • Page 3 Vector Manufacturing, Ltd., regarding this product. There is no other warranty, other than those described herein. This Vector Manufacturing, Ltd. product is warranted, to the original purchaser only, to be free of defects in materials and workmanship for two years from the date of purchase without additional charge. The warranty does not extend to subsequent purchasers or users.

  • Page 5: First Aid

    WARNING STATEMENTS IDENTIFY CONDITIONS OR PRACTICES THAT MAY RESULT IN PERSONAL INJURY OR LOSS OF LIFE WHEN WORKING WITH LEAD ACID BATTERIES, ALWAYS MAKE SURE IMMEDIATE ASSISTANCE IS AVAILABLE IN CASE OF ACCIDENT OR EMERGENCY. ALWAYS USE PROTECTIVE EYEWEAR WHEN USING THIS PRODUCT: CONTACT WITH BATTERY ACID MAY CAUSE BLINDNESS AND/OR SEVERE BURNS.

  • Page 6: Battery Replacement

    15. THIS UNIT WILL NOT OPERATE APPLIANCES AND EQUIPMENT THAT PRODUCE HEAT, SUCH AS DRYERS, MICROWAVE OVENS, AND TOASTERS. BATTERY REPLACEMENT: IT IS RECOMMENDED TO RETURN UNIT TO VECTOR CONTACT (954) 584-4446 EXT. 19, OR TOLL-FREE (866) 584-5504 BATTERY DISPOSAL: THIS UNIT CONTAINS A MAINTENANCE-FREE, SEALED, NON-SPILLABLE, LEAD ACID BATTERY WHICH MUST BE DISPOSED OF PROPERLY.

  • Page 7: Emergency/Work Light

    5. Replace with a new bulb (12-volt 0.4 amp Krypton bulb). 6. Snap the lens cover back into place, and replace Phillips screws. 6. BATTERY REPLACEMENT IT IS RECOMMENDED THAT THE UNIT BE RETURNED TO VECTOR REPLACEMENT: CONTACT (954) 584-4446 EXT. 19, OR TOLL-FREE (866) 584-5504 6.1 Battery Disposal Contains a maintenance-free, sealed, non-spillable, lead acid battery, which must be disposed of properly.
  • Page 8 4. OPERATION AS A PORTABLE POWER SUPPLY 4.1 Operation as a 12-volt DC Power Supply NOTE: Make sure that the unit ‘s safety ON/OFF switch is ALWAYS in the OFF position when using the 12-volt DC accessory outlet. 1. Lift up the cover of the unit ‘s 12-volt DC cigarette lighter-type receptacle (See Figure 1, #1). 2.

  • Page 9: Features

    Figure 1 • Heavy duty, professional quality • Easy-to-use: emergency jumpstarter for cars, light trucks, jet skis, snowmobiles, farm equipment, airplanes, boats, small SUVs and RVs (almost any 12-volt battery system) • Provides INSTANT 12-VOLT DC POWER — whenever, and wherever it’s needed •...

  • Page 10: Safety Warnings

    NOTE: The Start-It Jumpstart System is equipped with an audible Reverse Polarity Alarm. This feature is only active when the Safety Switch is turned OFF. After both battery clamp connections are made during jump-start procedures, if you hear a buzzing sound, DO NOT TURN ON THE SAFETY SWITCH.

  • Page 11: Estimated Battery Life

    2. Insert one end of the DC/DC charging cord into the 12-volt DC cigarette lighter receptacle on the vehicle or boat. 3. Insert the plug at the other end of this power cord into the 12-volt DC receptacle on the front panel of the unit.

  • Page 12: Charging/Recharging

    clamps together—this can cause dangerous sparks, power arcing and/or explosion. FIRST AID: • Skin: If battery acid comes in contact with skin, rinse immediately with water, then wash thoroughly with soap and water. If redness, pain, or irritation occurs, SEEK IMMEDIATE MEDICAL ATTENTION. •...
  • Page 13 110/120-volt AC power supply. It can also be used as a safe, portable source of 12-volt DC electric power in remote locations and/or emergency situations. It is ideal for use with Vector DC/AC Power Inverters. Use the START-IT™ to:...
  • Page 14 Check unit periodically for wear and tear. Replace worn or defective parts immediately - contact Vector Customer Service Department at (954) 584-4446 ext. 19 or toll-free (866) 584-5504 or through our internet address: www.vectormfg.com...
  • Page 15 TERMINAL OR MOVING PART. IF AUDIBLE ALARM SOUNDS - DO NOT TURN ON SAFETY SWITCH! REVERSE POLARITY OF CLAMP CONNECTIONS NOTE: In the rare event that the vehicle to be started has a Positive Grounded System (positive battery terminal is connected to chassis): Replace step 3 above with the following steps, and then proceed to steps 4-6 below.
  • Page 16 VECTOR MANUFACTURING, Ltd. 4140 S.W. 28th Way Ft. Lauderdale, FL 33312...
