• Mark two holes that are going to be drilled, the distance between them. should be 54mm, and
they should be horizontally aligned .
• Drill two 6mm hole, apply screw anchors and screws.
• Adjust the screw spacing.
• Push the screws heads through the larger opening hole of the Gateways fixture and then pull
the Gateway down so the screws get locked in position.

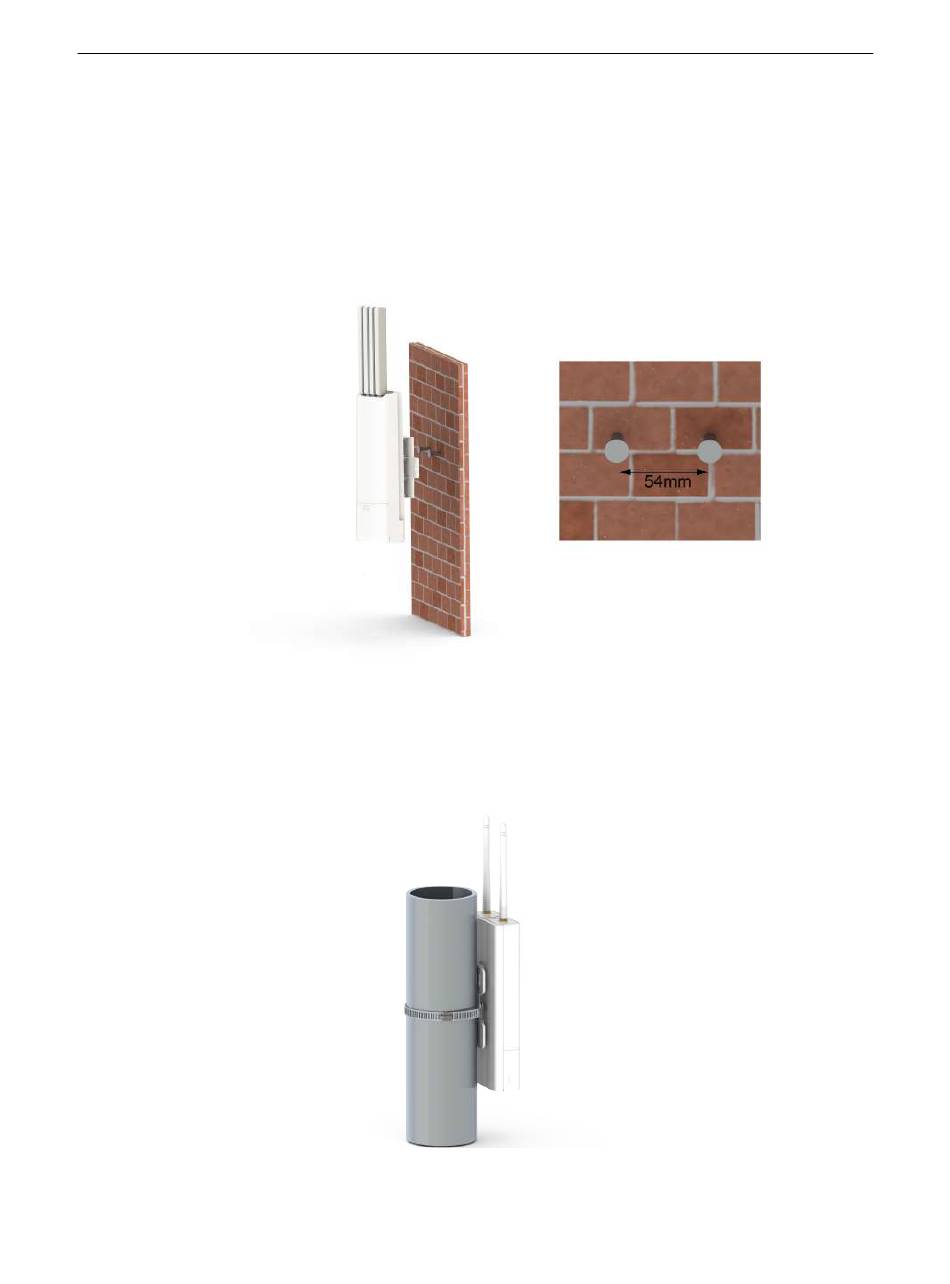

Figure 2.2: Mounting the MX1901/2 Gateway to the wall.
Figure 2.3: Mounting the MX1901/2 Gateway to the pole.
