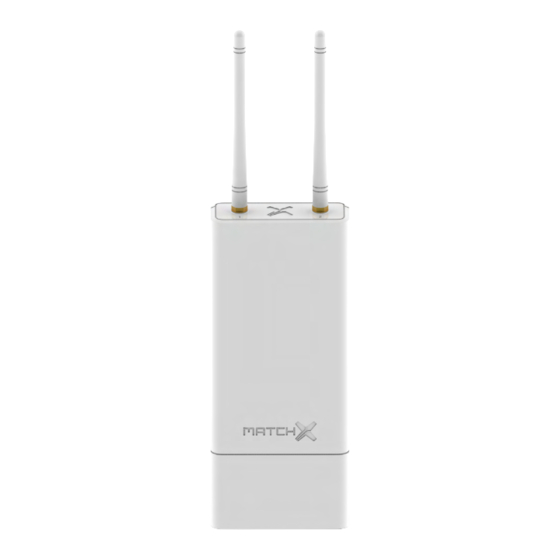

LPWAN gateway
MX1702

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX1702 and is the answer not in the manual?

Questions and answers

Summary of Contents for MatchX MX1702

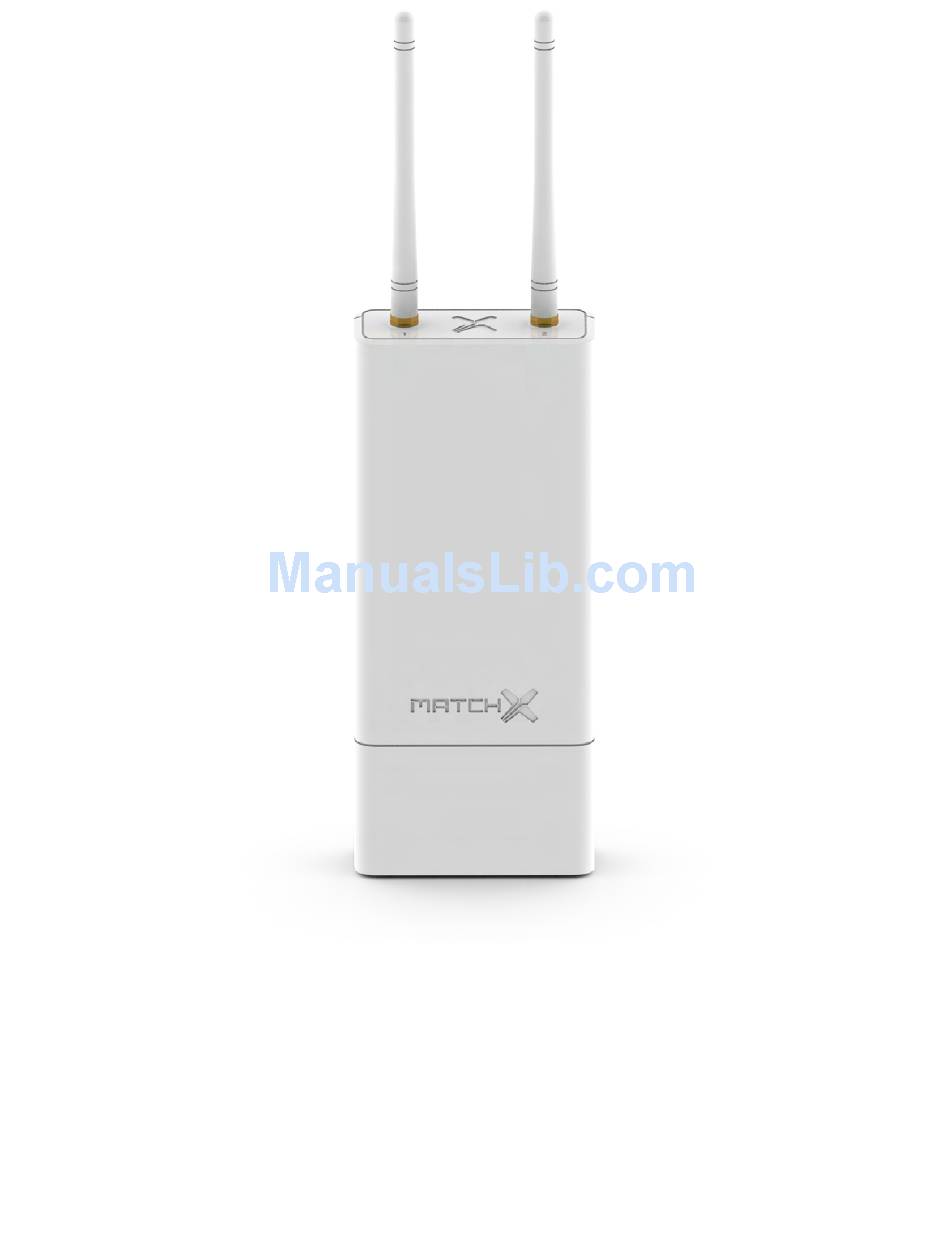

  • Page 1: User Guide

    LPWAN gateway MX1702 User Guide...
  • Page 2 MATCHX No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from MatchX Inc./MatchX GmbH All rights reserved. First release, May 2017...
  • Page 3: Table Of Contents

    Contents Introduction ........... . 5 Product overview 1.1.1 Lora .
  • Page 4 2.6.3 Packet forwarder and gateway library ....... . 13 2.6.4 WiFi backhaul .
  • Page 5: Introduction

    1. Introduction Product overview Thanks for choosing MatchX LPWAN products for your IoT applications. The Box includes a set of high-performance hardware and MatchX LPWAN controller software that allows you to manage your IoT devices through web browser or API.
  • Page 6: Wifi

    Gateway and end device management on-site Currently Class B support in MatchX cloud is still in beta version, but the hardware is fully prepared for Class B specification, it is expected to have a final Class B support in future cloud...
  • Page 7: Interface And Connectors

    1.3 Interface and Connectors Interface and Connectors 1.3.1 Front panel of Box The shell part can be removed to connect cables and check the status of the Box. The panel has USB, USB-C and POE connectors and Link status LED. USB2.0 is used to connect 3G/4G stick or USB disk.
  • Page 8: Connector Of Box

    Chapter 1. Introduction LED Color Activity Flashing Blue Initializing Steady Blue Connected to Internet, no LoraWAN is configured Alternative Blue and Red Device is busy, don’t unplug power Flashing Red No GPS fix Steady Red No Internet or no LoraWAN Flashing Green Configuring Box Steady Green...
  • Page 9: Quick Installation Guide

    2. Quick Installation Guide The Box is pre-configured to connect MatchX network without any need of setup, the installation guide will introduce how to set it up and configure WiFi and Lora parameter. This device must be professionally installed. Software environment To configure the Box, users will need to have the following software environment:...
  • Page 10: Mounting

    Chapter 2. Quick Installation Guide Firstly connect to power cords from your wall sockets or panel sockets to POE, then connect the RJ45 cable from your Internet modem/switch/wall port, or any 3G/4G router to the POE’s port labeled with "LAN". Next, grab a RJ45 cable and connect from the POE’s port labeled with "POE" to Box.
  • Page 11: Pole Mounting

    2.4 Mounting 2.4.2 Pole mounting To mount Box to a pole, users can find the stainless steel clamps in the package. The steps are:...
  • Page 12: Surge Protection And Shielded Ethernet Cable

    Both shielded FTP and S-FTP cable from Cat5e are recommended. Setup The Box will be automatically connected to MatchX cloud after the Internet is connected. This guide will illustrate how to connect to the Box and configure it. 2.6.1...
  • Page 13: Packet Forwarder And Gateway Library

    2.6 Setup In this example we assume that the IP address that obtained by Box is 172.16.1.134, and we connect from the LAN through ssh in Ubuntu: 2.6.3 Packet forwarder and gateway library The Box includes the most updated packet forwarder and gateway library from Semtech’s github. The folder is in /root/lora_lib and /root/lora_pkt_fwd.
  • Page 14: Wifi Backhaul

    Chapter 2. Quick Installation Guide To run any test that relates to RX, users should use this daemon to display the packets that are received at the Box. util_ack: it will listen on a single UDP port and responding to PUSH_DATA datagrams with PUSH_ACK, and to PULL_DATA datagrams with PULL_ACK.
  • Page 15: Product Specification

    3. Product specification The Box is designed for better LPWAN performance and manageability. In this chapter we briefly introduce the specifications for both hardware and software. Hardware environment Box is mainly designed for network operators, it can both be deployed outdoor and indoor, the enclosure is made of weather-resistant material.
  • Page 16: Rf Performance

    Chapter 3. Product specification Official packet-forwarder and lora-gateway libraries OTA upgrade and end device firmware upgrade remote management of gateway and connectivity RF performance There are several RF systems in Box, which include Lora, WiFi and GPS . In this section we will briefly introduce the performance of these systems.
  • Page 17 3.4 RX Filter for narrow band regions(IN/HK/SIN/THA) 920-925MHz RX filter for Singapore, Hong Kong, Thailand, Vietnam 865-867MHz RX filter for India...
  • Page 18: Antenna Performance

    Chapter 3. Product specification Antenna Performance The performance of the GPS antenna 1 is listed in the following table: Item Description Frequency range 1574 - 1606MHz Impedance 50ohms VSWR <1.2:1 Max gain 2.5dbi Polarization Vertical Radiation Pattern Omni-directional Connector SMA(M) Length 108mm IP Rating...
  • Page 19: Operational Frequencies

    3.6 Operational frequencies Operational frequencies The operational frequencies in European countries is listed in the table. The rest of frequency plans in US, Australia, India, Korea and the rest of the world can be found on MatchX website.
  • Page 20: Package Content

    4. Package content Thanks for purchasing MatchX Box LPWAN gateway, it carries the most advanced IoT technology with a plug-and-play design. With the default package users can easily setup an IoT LPWAN. The package includes the following items: Box(1 pcs)
  • Page 21: Fcc Statement

    .FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 This device complies with RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
