PASCO Wireless Drop Counter PS-3214
Software: SPARKvue or PASCO Capstone
Power: Rechargeable Battery
For Temperature Sensor
Micro
USB
Cable
For pH Sensor
Drop Window
the ON button at the top of the sensor to turn it on. (NOTE: The following procedure also works if the sensor is connected to a USB charger.) In
SPARKvue: Touch or Click the Sensor Data icon in the Welcome Screen. In the "Connected Devices" list, select the correct address that matches
the XXX-XXX Device ID number found on the sensor. Select a measurement, and then select a "Template" to open a data display. In PASCO
Capstone, select "Hardware Setup" in the "Tools" palette. Select the desired sensor type that matches the Device ID XXX-XXX number on the
sensor. Close the "Hardware Setup" window.
2. Set Up the Sensor: Arrange the sensor with the included syringe holder, syringe, and drop dispenser so that drops will pass through the Drop
Window into a receptacle below.
3. Collect Data: In SPARKvue, Select the "Start" button. In PASCO Capstone: Select a display, set up the measurement in the display, and select
"Record". 4. Analyze the Data: Use the PASCO Data Collection software (SPARKvue or Capstone) to interpret the data.
012-16026A
PASCO Wireless Drop Counter PS-3214
Software: SPARKvue or PASCO Capstone
Power: Rechargeable Battery
For Temperature Sensor
Micro
USB
Cable
For pH Sensor
Drop Window
the ON button at the top of the sensor to turn it on. (NOTE: The following procedure also works if the sensor is connected to a USB charger.) In
SPARKvue: Touch or Click the Sensor Data icon in the Welcome Screen. In the "Connected Devices" list, select the correct address that matches
the XXX-XXX Device ID number found on the sensor. Select a measurement, and then select a "Template" to open a data display. In PASCO
Capstone, select "Hardware Setup" in the "Tools" palette. Select the desired sensor type that matches the Device ID XXX-XXX number on the
sensor. Close the "Hardware Setup" window.
2. Set Up the Sensor: Arrange the sensor with the included syringe holder, syringe, and drop dispenser so that drops will pass through the Drop
Window into a receptacle below.
3. Collect Data: In SPARKvue, Select the "Start" button. In PASCO Capstone: Select a display, set up the measurement in the display, and select
"Record". 4. Analyze the Data: Use the PASCO Data Collection software (SPARKvue or Capstone) to interpret the data.
012-16026A

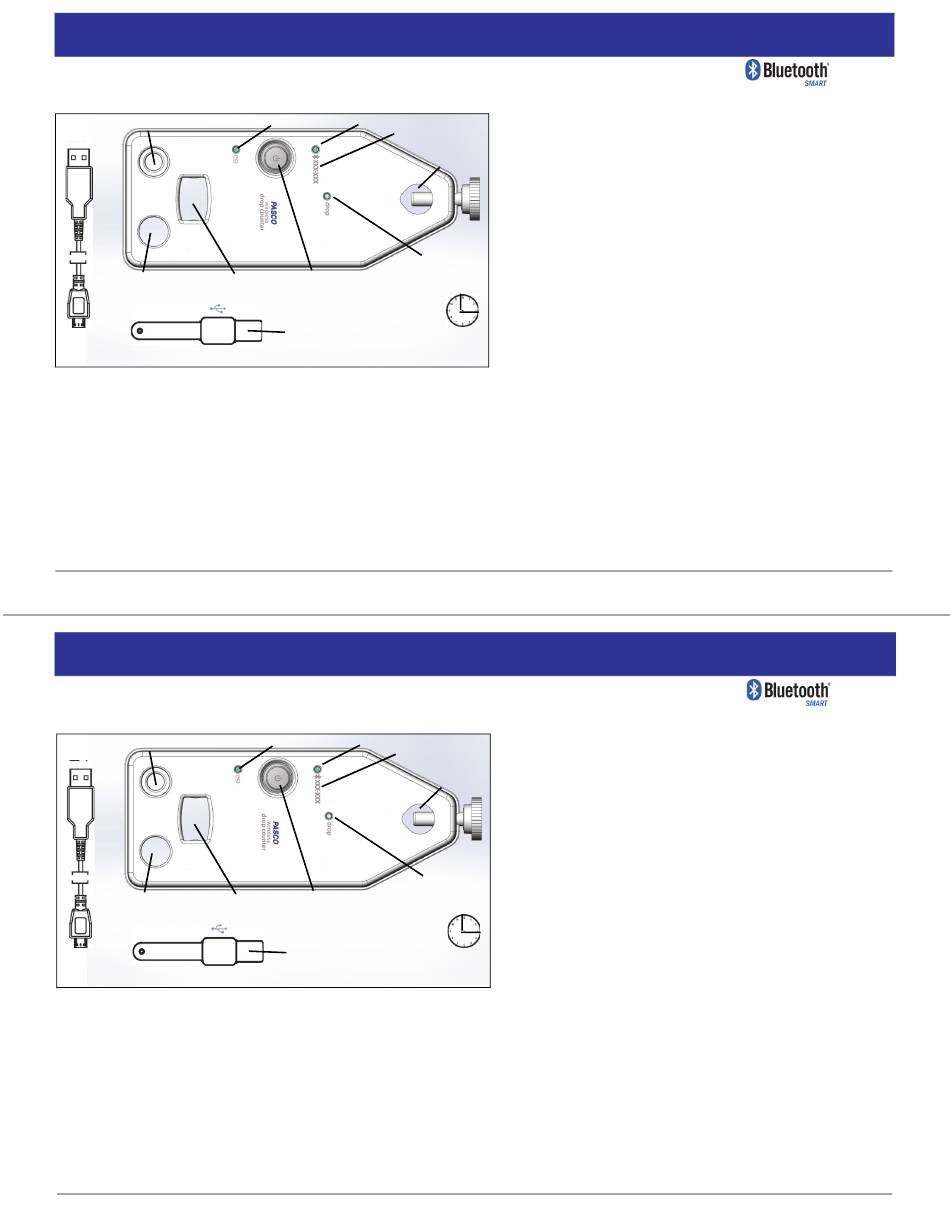

Top view
