- Page 1 Installation manual...

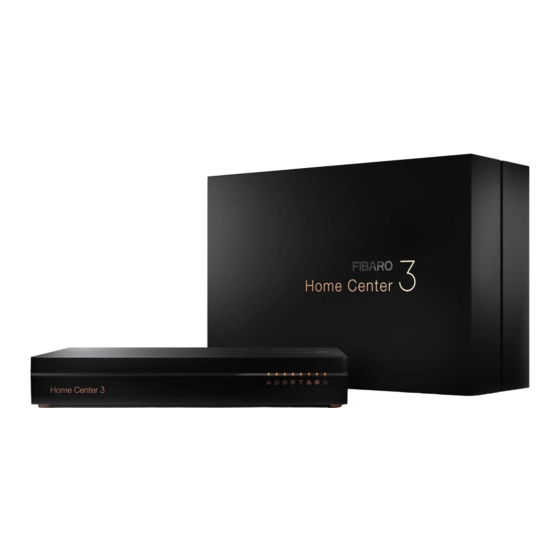

- Page 2 This manual describes the first installation of the Home Center 3 smart home gateway. To see a full description of all features and how to configure them visit our website: manuals.fibaro.com/home-center-3...
-
Page 3: Table Of Contents
Table of contents Important safety information......Installation............ First configuration......... Remote access..........Mobile apps..........Status indicators........... Buttons............Specifications..........Warranty terms and conditions..... Regulatory information........ -
Page 4: Important Safety Information
Caution! Do not attempt to disassemble, repair or modify this product yourself. • Any repair should be performed only by an authorized FIBARO service. This product is designed for indoor use only. Do not use outside! • Do not expose this product to moisture, water, or other liquids. - Page 5 Note Do not place the product in metal boxes or on metal surfaces • for best radio performance. Create system backups regularly to prevent losing your system • configuration. Connect (LAN) interface to your local network only. Make sure your •...
-
Page 6: Installation
Installation Using Ethernet cable (recommended) 1. Connect the gateway to your home’s Internet router using the provided Ethernet cable. 2. Plug the provided power adapter into an outlet and connect it to the gateway. 3. The gateway will turn on and indicator will turn copper. - Page 7 Using Wi-Fi only 1. Plug the provided power adapter into an outlet and connect it to the gateway. 2. The gateway will turn on and indicator will turn copper. 3. Connect your computer to Wi-Fi network created by the gateway. You will find Wi-Fi SSID (name) and password on the bottom of the device.
-
Page 8: First Configuration
First configuration 1. Go to find.fibaro.com. 2. List of all gateways in your home network will be displayed. (If you are connected to the Wi-Fi network created by the gateway, skip to step 4.) 3. Click Open next to gateway you want to configure. -
Page 9: Remote Access
Remote access To control the gateway outside your house: 1. In your Internet browser go to id.cloud.fibaro.com. 2. Create an account. 3. Go to Remote Access and add your gateway. Mobile apps To control the gateway with a mobile device, install the Home Center app. -
Page 10: Status Indicators
Status indicators Power Installer Copper – powered Copper – installer assigned Green – remote support enabled Red – installer not assigned Internet Copper – connected to Internet Recovery Red – disconnected from Internet Red – in Recovery Mode Fast pulsing green – creating backup Slow pulsing copper – update available Copper – connected to LAN Fast pulsing copper – connecting to LAN Smart Home Slow pulsing copper – adding mode Wi-Fi... -
Page 11: Buttons
Buttons Power Click Wake up Hold for 5s Sleep mode Hold for 15s Restart Recovery Hold during startup Put in Recovery mode Hold for 10s Switch between Dynamic and Static IP: blink yellow: IP set to Dynamic • blink green: IP set to Static •... -
Page 12: Specifications
Specifications General information Model FGHC3-001 Quad-core Arm Cortex A53 (1.2GHz) RAM 2GB LPDDR3 Flash memory 8GB eMMC Power supply 12V DC (adapter included) Operating temperature 0-40°C Operating humidity max. 75% relative humidity (non-condensing) Network interface 10/100 (Base-T) Ethernet via RJ45 connector 1 (2.0) Power connector barrel connector 5.5mm x 2.5mm (female) - Page 13 Radio Communication Max. transmitting Protocol Radio frequency band power 868.0-868.6 MHz +14dBm 869.7-870.0MHz AU, NZ 915.0-928.0MHz +5dBm Z-Wave (500 series) 902.0-928.0MHz +5dBm 915.0-928.0MHz -2dBm 920.9-923.1MHz +7dBm 2.4GHz 2400.0-2483.5MHz +20dBm Wi-Fi (802.11 b/g/n/a/ac) 5GHz 5150.0-5250.0MHz +14dBm EU, THA 433.05-434.04Mhz +10dBm 433Mhz AU, NZ, CL, BR 433.05-434.04Mhz +14dBm...
-
Page 14: Warranty Terms And Conditions
PLN 1,182,100 paid in full, other contact Customer should contact information is available at: www.fibaro.com Manufacturer via the email address given at (hereinafter “the Manufacturer”) guarantees that fibaro.com/en/support/. the device sold (hereinafter referred to as: “the 8. After the complaint has been properly submitted, Device”) is free from material and manufacturing... - Page 15 Z-Wave product and should work with devices Manufacturer. from other producers. Each certified, Z-Wave • damages caused by operating or storing the compatible device, may be added to FIBARO device in extremely adverse conditions, i.e. System. high humidity, dust, too low (freezing) or too high ambient temperature.
-
Page 16: Regulatory Information
Directives 2014/53/EU, 2011/65/EU and 2015/863. The full text of the EU declaration of conformity is available at the following internet address: manuals.fibaro.com The device is restricted to indoor use only when operating in the 5150 MHz to 5250 MHz frequency range. - Page 17 Notebook...
- Page 18 Notebook...
- Page 19 Notebook...
- Page 20 105466410101...
