Quick Reference Guide

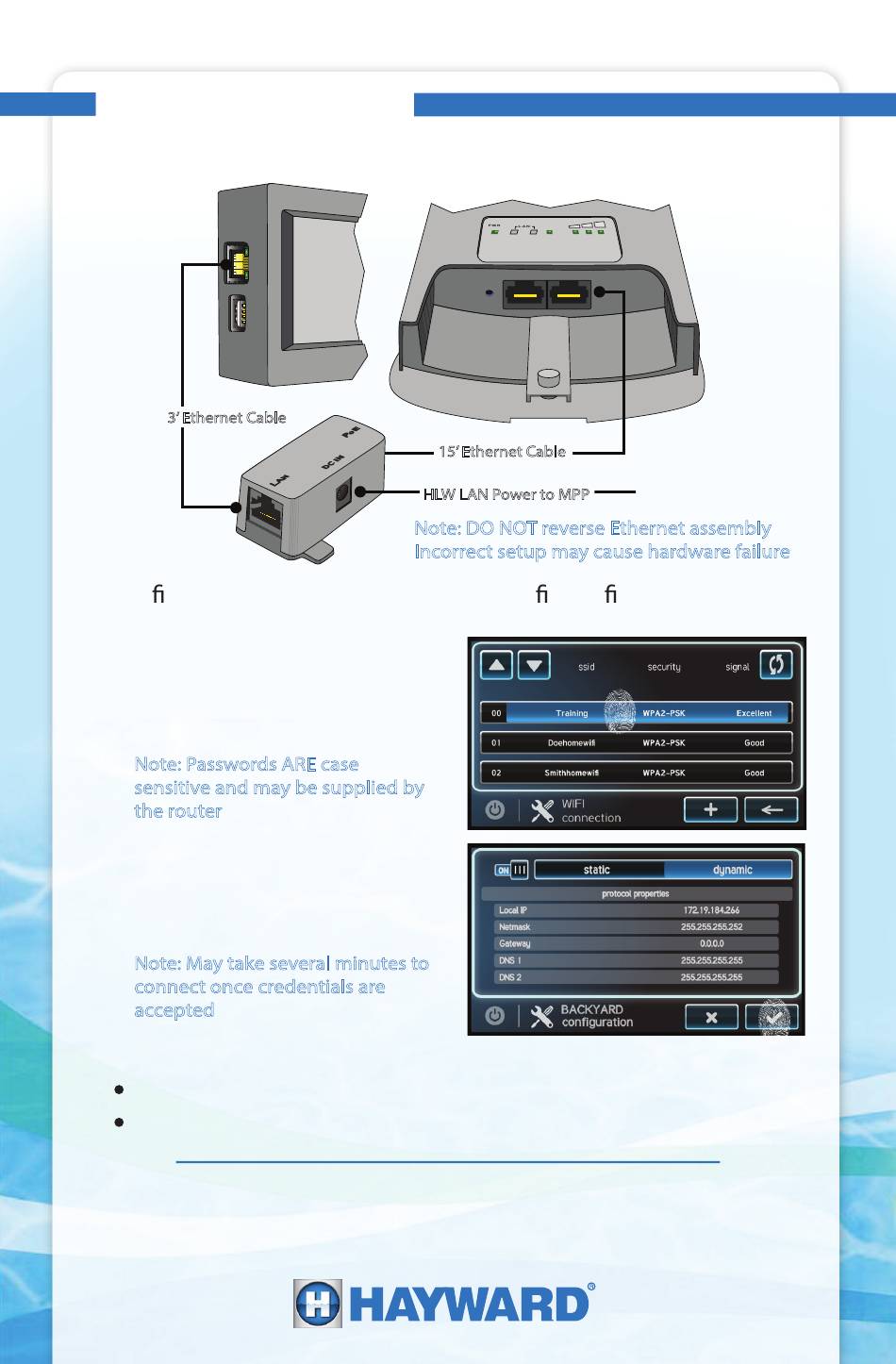

HLWLAN Network Setup

1. Connect HLWLAN hardware to OmniLogic

3' Ethernet Cable
2. Con gure Wi-Fi bridge by selecting Con g>wi bridge>
A. Select the desired network name
(SSID) from the list that appears,
then enter the network password
Note: Passwords ARE case
sensitive and may be supplied by
the router
B. Verify IP addresses are present after
connecting to Wi-Fi, If no IPs, check
information and repeat Step A
Note: May take several minutes to
connect once credentials are
accepted
If no IP address is issued:
Check connection and signal strength using another Wi-Fi ready device
Verify network encryption through router
To view OmniLogic tutorials please visit: www.hayward.com/omnivideos
QRG-OLNETSf
-
MSP
Note: DO NOT reverse Ethernet assembly
Incorrect setup may cause hardware failure
To take a closer look or see other Hayward products please go to:
www.hayward.com or call 1-844-365-6442

Wi-Fi Bridge Setup

HLWLAN
WLAN
LAN LAN (PoE)
15' Ethernet Cable
HLW LAN Power to MPP
