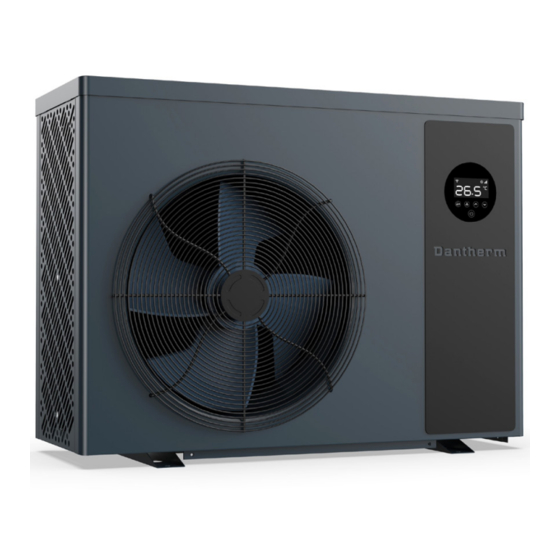

- Page 1 HPP-i inverter heat pumps HPP-i 8, 12, 16, 18, 24, 30 Owner Installation Manual 1007332 Issue 1...
-
Page 2: Health And Safety Warning
OWNER/INSTALLATION MANUAL HEALTH AND SAFETY WARNING This product contains electrical and rotational equipment. ONLY competent trained people should work on this device, and must be isolated electrically before removing access panels. This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction... -
Page 3: Table Of Contents
CONTENTS HEALTH AND SAFETY WARNING ���������������������������2 CONTROLLER ������������������������������������������������������20 1�0 INTRODUCTION ��������������������������������������������������4 4�0 USING YOUR HEAT PUMP �������������������������������22 1�1 FOREWORD �����������������������������������������������������4 4�1 THE KEY PAD ������������������������������������������������22 1�2 WARNINGS ������������������������������������������������������4 4�2 OPERATING INSTRUCTIONS �����������������������23 2�0 ABOUT YOUR HEAT PUMP �������������������������������8 4�3 USING THE APP ��������������������������������������������24 2�1 TRANSPORTATION ����������������������������������������8 4�4 USING THE OPTIONAL REMOTE CONTROLLER ������������������������������������������������������30... -
Page 4: 1�0 Introduction
This manual is intended for installers and users� Read the entire manual before using the heat info@dantherm�com pump� Awareness of the correct operating Take the following precautions in order to avoid procedure for the machine and any safety devices any danger: is important, to avoid damage or injury�... - Page 5 ACTIONS TO AVOID (OPERATION AND Do not use or store combustible gas or liquids near the HANDLING): heat pump. Check if there are any local regulations, which Be especially careful when handling the heat pump, you must comply to, when installing or storing not to cause any damage that may result in leakage of the heat pump�...
- Page 6 OWNER/INSTALLATION MANUAL HEAT PUMP MALFUNCTION: Installation must be carried out by competent people, in accordance with this manual. WARNING: Isolate heat pump electrically and wait INSTALLATION: 3 minutes before removing panels or entering heat pump. Read the instructions before installation, use and maintenance.
- Page 7 Do not use means to accelerate the defrosting The heat pump must be kept process or to clean, other than away from sources of fire or those recommended by the naked flames. manufacturer. The appliance shall be stored in a room without continuously The heat pump must be operating ignition sources installed in well ventilated...
-
Page 8: 2�0 About Your Heat Pump
OWNER/INSTALLATION MANUAL 2�0 ABOUT YOUR HEAT PUMP 2�1 TRANSPORTATION Always keep the heat pump upright. Do not lift the heat pump by the water inlet or outlet connections. (If this is done the titanium heat exchanger inside the heat pump could be damaged). 2�2 ACCESSORIES These accessories are provided with the heat pump. -
Page 9: 2�3 Optional Accessories
2�3 OPTIONAL ACCESSORIES The following items are additional accessories available for purchase. Rubber mounting kit. (Pack of 4 mounts). Remote controller kit for indoor installation. (10m extension cable). Winter cover. 1007332 ISSUE 1... -
Page 10: 2�4 Features
• High pressure and low pressure protection • Soft start and wide voltage application • Stable inverter control system 2�5 OPERATING CONDITIONS AND RANGE Air temperature operating range: HPP-i 8, 12, 16: -5-43°C HPP-i 18, 24, 30: -10-43°C Water temperature setting range: Heating: 18°C-40°C Cooling: 12°C-30°C 2�6 OPERATING MODES... -
Page 11: 3�0 Installation
3�0 INSTALLATION Installation must only be attempted by competent personnel. 3�1 POSITIONING AND AIRFLOW Airflow - general principles The heat pump absorbs energy from the air drawn Important installation instruction The heat pump must be positioned in a well through it. To function effectively the heat pump must ventilated area. - Page 12 Minimum free areas m installing the heat pump in position� Model Discharge area Required free areas to provide air flow to and from heat HPP-i 8 0.169 pumps when installed in an enclosed area or where HPP-i 12 0.169 required to pass air through a wall etc. Ensure the heat HPP-i 16 0.169...
- Page 13 To comply with safety regulations regarding electrical installations in wet areas the heat pump must be installed at least 350cm away from the edge of the pool or spa. Swimming pool or spa 1007332 ISSUE 1...
-
Page 14: 3�2 Refrigerant Type And Installed
This information is provided as a guide only and does the framework for such a risk assessment for the not supersede the regulations or health and safety installation. requirements. Model HPP-i 8 HPP-i 12 HPP-i 16 HPP-i 18 HPP-i 24 HPP-i 30... -
Page 15: 3�3 Pool Water Circuit
3�3 POOL WATER CIRCUIT Pool Aux heater Non return Sanitiser or (If fitted) valve chemical dosing device, (If fitted) Heat pump Anti return loop Condensate to be incorporated, water to To waste minimum height waste 100mm above heat pump outlet port (If sanitiser fitted) To waste Bypass... -
Page 16: 3�4 Plumbing
OWNER/INSTALLATION MANUAL 3�4 PLUMBING IMPORTANT Before installing the heat pump ensure the blanking disks are removed from the pool water in/out connections� These should drop out when the adaptors are unscrewed� 1. Ensure that bypass is installed and set to achieve the recommended flow rates stated in the data sheet. -
Page 17: 3�6 Electrolytic Corrosion In Swimming
3�6 ELECTROLYTIC CORROSION IN SWIMMING 3�7 ELECTRIC WIRING AND SUPPLY POOLS Electrolytic corrosion will occur when dissimilar metals All electrical work to be carried out in accordance with that are in contact with each other create a potential l.E.E.regulations, latest issue, or local codes of practice difference between themselves. -
Page 18: 3�8 Connecting The Heat Pump To The Power Supply
OWNER/INSTALLATION MANUAL 3�8 CONNECTING THE HEAT PUMP TO THE POWER SUPPLY Two cable entry points Remove Li lower Remove two screws panel away four screws and remove cover Single phase Three phase Terminals in Heat Pump Electrics enclosure Terminals in Heat Pump Electrics enclosure Power Pump Power... -
Page 19: 3�9 Pool Pump Synchronisation
3�9 POOL PUMP SYNCHRONISATION TERMINALS P1 AND P2 For installations where the pool filter pump runs measured temperature is more than 1°C from the set continuously, these terminals do not need to be used. temperature, the point heat pump will continue to run the filter pump and heat/cool the pool. -
Page 20: 3�10 Installing The Optional Remote
OWNER/INSTALLATION MANUAL 3�10 INSTALLING THE OPTIONAL REMOTE CONTROLLER This optional accessory replaces the integral controller and can be installed up to 10m away. Take the lid off the HPP-i to gain access to the existing Remove the bulkhead connector from the position controller. - Page 21 Connect the lead. Connect the lead. Remove the two screws from the back of the Remote Remove the appropriate knock out and fit the back of Controller. the box to the wall. Inlet for exposed cable. Inlet for concealed cable. If the cable is concealed, fit the grommet in the hole to protect the cable from rubbing.
-
Page 22: 4�0 Using Your Heat Pump
OWNER/INSTALLATION MANUAL 4�0 USING YOUR HEAT PUMP 4�1 THE KEY PAD Symbol Designation Function 1. Power On/Off On/Off 2. Wi-Fi Setting 1 Lock/Unlock Screen Lock/Unlock 2. Heating mode (18-40°C) 3. Cooling mode (12-30°C) Heat Mode 4. Auto mode (12-40°C) 1. Boost Speed Mode 2. -
Page 23: 4�2 Operating Instructions
4�2 OPERATING INSTRUCTIONS IMPORTANT Remember that at startup there is a 1 minute time delay before the heat pump starts a� Screen lock e� Speed Mode selection 1) Press for 3 seconds to lock or unlock the Press to switch between Boost mode screen. -
Page 24: 4�3 Using The App
OWNER/INSTALLATION MANUAL 4�3 USING THE APP a� APP Download b� Account registration APP Download Account Registra�on 1. Register by mobile or E-mail. Android please download from Register iOS please download from Login with Existing Acount 2. Mobile or E-mail registra�on. Obtain verification code 1007332 ISSUE 1... - Page 25 Create Family Please set family name and choose the room of device. c� Create family Create Family Add Family Enter Family name Please set family name and choose the room of device. Set location Add Family Enter Family name Set location You can change room seettings anytime.
- Page 26 OWNER/INSTALLATION MANUAL 2. Click "Add Device", and then follow instruc�ons to pair device. Pool Heat Pump Add Device Xiaomi_abc… Confirm Confirm Indicator Rapidly Blink 1007332 ISSUE 1...
- Page 27 Done 1007332 ISSUE 1...
- Page 28 OWNER/INSTALLATION MANUAL Opera�on e� Operation 1. For heat pump with Hea�ng func�on only : PoolTherm Indicates the mode Boost or Whisper mode Whisper The current swimming pool water temperature The se�ng temperature Setting Timer Select Boost/ Silence Mode On/Off 2. For heat pump with Hea�ng and Cooling func�on : PoolTherm Indicates the mode Boost or Whisper mode...
- Page 29 Share Devices to Your Family Members f� Share devices to your family members After pairing, if your family members also want to Please let your family members register the APP first, A�er pairing, if your family members also want to control the device. Please let your family members register the APP first, and then the control the device.
-
Page 30: 4�4 Using The Optional Remote
OWNER/INSTALLATION MANUAL 4�4 USING THE OPTIONAL REMOTE CONTROLLER 4�5 THE KEY PAD Symbol Function Power On/Off Heating/Cooling/Auto mode Press to start Boost mode Press to start Whisper mode Temperature setting and display. 1007332 ISSUE 1... -
Page 31: 4�6 Operating Instructions
4�6 OPERATING INSTRUCTIONS a� Power On & Power Off c� Defrosting 1. Automatic defrosting Press to power on or power off the heat pump. When machine is defrosting, the lamp flashes; b� Temperature Setting after defrosting the lamp is illuminated. 2. -
Page 32: 5�0 Testing
OWNER/INSTALLATION MANUAL 5�0 TESTING Inspect the heat pump before use • Check that the fan, air inlets and outlets are not • Check that the electric wiring conforms to the obstructed. electric wiring diagram and that the machine is earthed. •... -
Page 33: 5�2 Protection Codes
5�2 PROTECTION CODES These codes indicate machine stopping due to external circumstances� These are not faults with the heat pump� NO� Display Reason Solution No water flow through the heat pump. Check water circuit and pool pump. Check phases connected correctly Three phase rotation protection. -
Page 34: 5�3 Fault Codes
OWNER/INSTALLATION MANUAL 5�3 FAULT CODES When the heat pump displays these error codes please contact your installer for advice. Display Description of fault code High pressure alarm Low pressure alarm Water outlet temp out of range alarm High exhaust temp alarm Evaporator overheat alarm (only in cooling mode) Controller communication failure Water inlet temp sensor failure... -
Page 35: 6�0 Maintenance
6�0 MAINTENANCE 7�0 TROUBLE SHOOTING COMMON FAULTS Isolate the power supply of the heat pump and wait 3 Minutes before cleaning examination or repair Requirements for service personnel Cover the heat pump body when not in use. Please clean this machine with household detergents Any person who is involved with working on or or clean water, NEVER use petroleum spirit, thinners or breaking into a refrigerant circuit should hold a current... -
Page 36: 8�0 Datasheets
OWNER/INSTALLATION MANUAL 8�0 DATASHEETS MODEL UNITS HPP-i 8 HPP-i 12 HPP-i 16 PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80% Heating capacity 13.0 20.0 COP range 13.2-5.4 13.5-5.6 13.5-5.7 Average COP at 50% Speed PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70% Heating capacity 13.5... - Page 37 MODEL UNITS HPP-i 18 HPP-i 24 HPP-i 30 PERFORMANCE CONDITION: Air 27°C/Water 27°C/RH 80% Heating capacity 21.0 27.5 36.0 COP range 14.8-6.4 15.0-6.8 14.8-6.0 Average COP at 50% Speed 10.3 10.3 10.2 PERFORMANCE CONDITION: Air 15°C/Water 26°C/RH 70% Heating capacity 14.5 18.0 23.9...
-
Page 38: 9�0 Dimensions
OWNER/INSTALLATION MANUAL 9�0 DIMENSIONS Air inlet Water Air inlet Water HPP-i 8 HPP-i 12 HPP-i 16 HPP-i 18 (3 Ph) HPP-i 24 (3 Ph) 1084 HPP-i 30 (3 Ph) 1154 1007332 ISSUE 1... -
Page 39: 9�1 Dimensions
9�1 DIMENSIONS HPP-i 8 HPP-i 12 HPP-i 16 HPP-i 18 (3 Ph) HPP-i 24 (3 Ph) HPP-i 30 (3 Ph) 1007332 ISSUE 1... -
Page 40: 10�0 Winterisation Procedure
OWNER/INSTALLATION MANUAL 10�0 WINTERISATION PROCEDURE WARNING. Isolate machine before opening! As heat pump embodies electrical and rotational equipment, it is recommended for your own safety that a competent person carries out the following procedure. (Drain Down Procedure) 4. Drain water from heat pump by: a) Drain valve if fitted. -
Page 41: 11�0 Warranty Conditions
The following exclusions apply to the warranty given 8. The fan amps and duct pressure are outside the by Dantherm DK No claims will be accepted if: specified limits. 1. The heat pump is installed in any way that is not in 9. -
Page 42: 12�0 Declaration Of Conformity
OWNER/INSTALLATION MANUAL 12�0 DECLARATION OF CONFORMITY 1007332 ISSUE 1... - Page 43 1007332 ISSUE 1...
- Page 44 Dantherm A/S Marienlystvej 65 DK-7800 Skive Tel. +45 96 14 37 00 info@dantherm.com Dantherm is a brand of...
