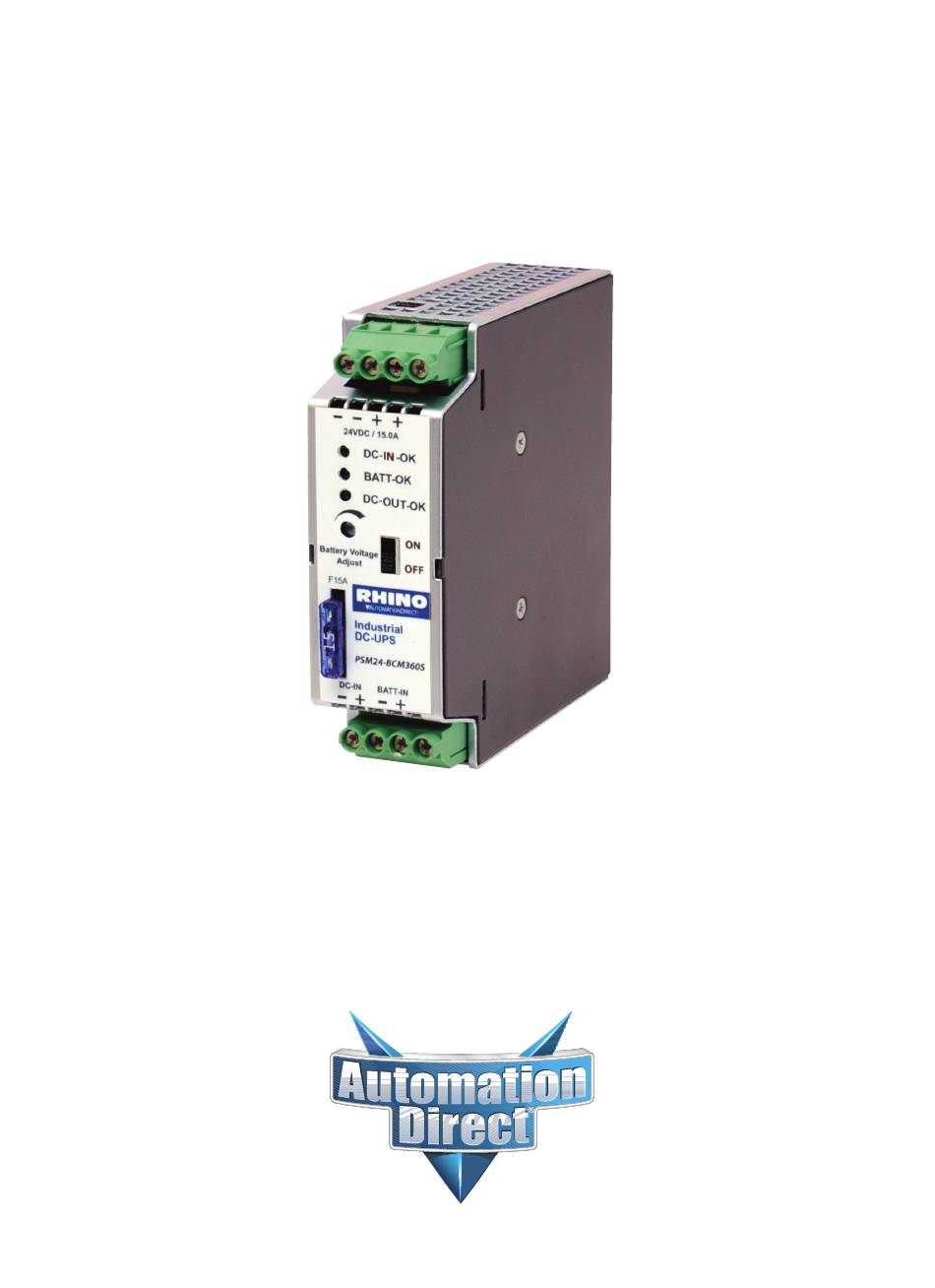

- Page 1 Rhino Battery Control Module PSM24-BCM360S Operating Instructions...
- Page 2 Caution: Risk of electrical shock and electrical discharge. Only qualified and trained personnel should open the PSM24-BCM360S or the power supply. Do not open the PSM24-BCM360S or the power supply until at least 5 minutes after complete disconnection of the main power and battery.
- Page 3 Mechanical Installation The PSM24-BCM360S is a built-in device and must be mounted in an electrical rack which must provide protection against access to dangerous voltages, hot devices and be resistant to flammability and causing fire hazards. Mount the unit horizontally on a flat vertical surface, as shown, to provide proper ventilation.
- Page 4 To achieve a reliable and shockproof connection, strip the connecting ends according to the table above. If flexible wires are used, terminate them using ferrules. The device is protected against overload and short circuit. RHINO Battery Control Module PSM24-BCM360S Operating Instructions 1 - 8 0 0 - 6 3 3 - 0 4 0 5 4th Edition 06/18...
- Page 5 J5 pin 7 and connector J5 pin 8 to switch off the power supply and PSM24-BCM360S. At open connection between J5 pin 7 and J5 pin 8 the device is providing the adjusted output voltage. A switch is also available on the face of the PSM24-BCM360S to switch off the system on site (in the control cabinet).
- Page 6 — Temperature Sensing Battery Control Module Connector Positions 1 2 3 4 1 2 3 4 RHINO Battery Control Module PSM24-BCM360S Operating Instructions 1 - 8 0 0 - 6 3 3 - 0 4 0 5 4th Edition 06/18...
- Page 7 Electromagnetic Compatibility (EMC), Immunity EMC, Immunity Corresponds to connected units ( no internal switching device) Pollution Degree RHINO Battery Control Module PSM24-BCM360S Operating Instructions 1 - 8 0 0 - 6 3 3 - 0 4 0 5 4th Edition 06/18...
- Page 8 RHINO Battery Control Module PSM24-BCM360S Operating Instructions 1 - 8 0 0 - 6 3 3 - 0 4 0 5 4th Edition 06/18...
