Automation Direct Productivity2000 P2-08ND3-1 Manual

Dc input module provides eight 12–24 vdc sink/source inputs for use with the productivity2000 system
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

Input Specifications

Inputs per Module
Voltage Rating
Input Voltage Range
Peak Voltage Range
Input Current (typical)
Maximum Input Current
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Document Name
P2-08ND3-1-DS
Copyright 2017, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
8 (Sink/Source)
12–24 VDC
10.2–26.4 VDC
30VDC
3.5 mA @ 12VDC
7.5 mA @ 24VDC
10mA @ 26.4 VDC
> 9.5 VDC
< 7VDC
2mA
1.6 mA
2ms Maximum, 1ms Typical
2ms Maximum, 1ms Typical
Logic Side (8 Points)
2 (4 points/common) Isolated
Edition/Revision
Date
1st Edition
9/21/2017

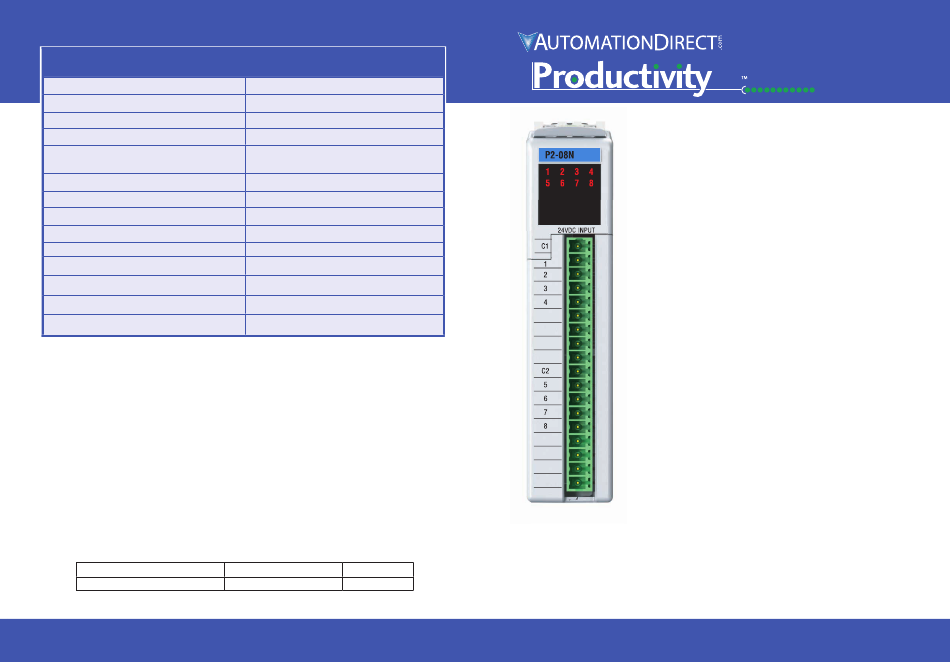

P2-08ND3-1 DC Input
D3-1
The P2-08ND3-1 DC Input Module provides
eight 12–24 VDC sink/source inputs for use
with the Productivity2000 system.
Input Specifications .................................................. 1
12–
Module Installation ................................................... 2
Wiring Options .......................................................... 2
Wiring Diagram And Schematic ................................ 3
Qr Code .................................................................. 3
Hot Swap Information ............................................... 3
Warning .................................................................... 4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 2).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
2000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Productivity2000 P2-08ND3-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Automation Direct Productivity2000 P2-08ND3-1

Summary of Contents for Automation Direct Productivity2000 P2-08ND3-1

  • Page 1 Input Specifications 2000 Inputs per Module 8 (Sink/Source) Voltage Rating 12–24 VDC Input Voltage Range 10.2–26.4 VDC P2-08ND3-1 DC Input Peak Voltage Range 30VDC 3.5 mA @ 12VDC D3-1 Input Current (typical) The P2-08ND3-1 DC Input Module provides 7.5 mA @ 24VDC eight 12–24 VDC sink/source inputs for use Maximum Input Current 10mA @ 26.4 VDC...
  • Page 2 Module Installation Wiring Options ZIPLink Connection System Cable + ZIPLink Module = Complete System WARNING: Do not apply field power until ZIPLink pre-wired the following steps are completed. See rotate terminal block cables hot-swapping procedure for to seated exceptions. position 0.5 m (1.6 ft) cable ZL-P2-CBL18 Step One:...
  • Page 3 Wiring Diagram and Schematic QR Code Equivalent Input Circuit Internal Module Circuitry 12–24 VDC Optical Isolator INPUT 12–24 VDC Use any QR Code reader application to display the module’s product insert. Caution: If possible, remove field power prior to proceeding. If not, then EXTREME care MUST be taken to prevent damage to the module, or even personal injury due to a short circuit from the live terminal block.
  • Page 4 General Specifications WARNING: To minimize the risk of potential safety problems, you should follow all applicable local and national codes that regulate Operating Temperature 0° to 60°C (32° to 140°F) the installation and operation of your equipment. These codes Storage Temperature -20°...
