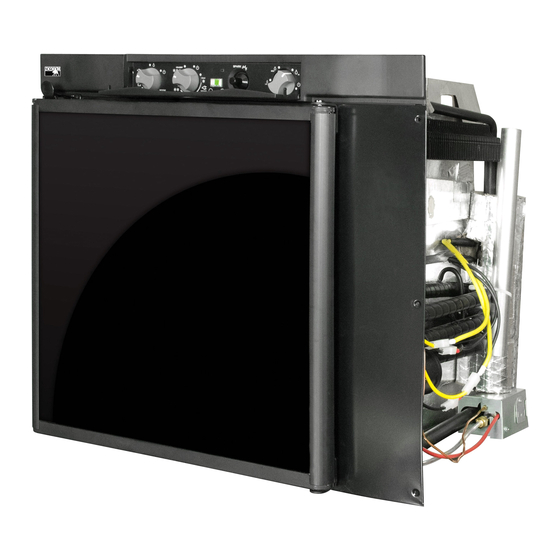

Norcold N180.3 Series Owner's Manual

1.8 cu.ft., 3-way
Hide thumbs Also See for N180.3 Series:
Table of Contents

Advertisement

Quick Links

The letter "X" in the model number above, stands for a letter or a numeral which means a
refrigerator option.
!
WARNING
If you smell gas:
1. Open Windows
2. Do not attempt to light appliance.
3. Do not touch electrical switches.
5. Shut off fuel supply.
6. Evacuate immediately and call emergency services.
property damage, personal injury, or death.
Improper installation, adjustment, alteration, service or maintenance can
!
WARNING
cause injury or property damage. Refer to this manual. For assistance
the gas supplier.
FOR YOUR SAFETY
NORCOLD, Inc.
P.O. Box 4248
Sidney, OH 45365-4248
Owner's Manual
For models N180.3X - a.1.8 cu.ft., 3-way, refrigerator.
FIRE OR EXPLOSION HAZARD
vicinity of this or any other appliance.
English
Norcold Customer Support Dept.
Telephone: 800-543-1219
Fax: 734-769-2332
Web Site: www.norcold.com
Part No. 638715A(8/2/16)

Advertisement

Table of Contents
loading

Related Manuals for Norcold N180.3 Series

Summary of Contents for Norcold N180.3 Series

  • Page 1 Refer to this manual. For assistance the gas supplier. FOR YOUR SAFETY vicinity of this or any other appliance. English Norcold Customer Support Dept. NORCOLD, Inc. Telephone: 800-543-1219 P.O. Box 4248 Fax: 734-769-2332 Sidney, OH 45365-4248 Web Site: www.norcold.com...

  • Page 2: Table Of Contents

    Table of Contents .....................................2 ....................................3 ....................................3 ....................................3 ......................................3 ..................................4 Food compartment ....................................4 ...............................4 .................................4 Control Panel.....................................4 ................................5 ...............................5 Start up - AC operation ..................................6 Start up - DC operation (3-way models only) ............................6 Shut down ......................................6 DC operation precautions..................................6 ..................................6 ..........................6 ........................7 ..................................7...
  • Page 3 - Incorrect installation, adjustment, change to, or maintenance of this refrigerator can cause personal injury, property damage, or both. Have service and maintenance work done by your dealer or by an Norcold authorized service center.

  • Page 4: Food Compartment

    Operation during travel: Food compartment: Door latch for travel and storage: [162]. Operating the Refrigerator Controls Selector switch ..............207 AC thermostat ..............293 Flame meter ..............217 ..............216 ................ 294 AC power indicator............310 DC power indicator (3-way model only) ......311 ART 02473 ), AC electric ( ), DC electric (...
  • Page 5 NOTICE Ignition - LP gas operation: WARNING minutes before you try ignition again. If you continue to hold in the gas control, LP gas will collect in the Do a test of the LP gas safety valve: NOTICE Owner’s Manual 5...

  • Page 6: Start Up - Ac Operation

    Start up - AC operation: - Turn the selector switch to the AC position ( - Turn the AC thermostat [293] to the desired temperature setting. NOTICE - Turn the selector switch to the DC position ( Shut down: - Turn the selector switch to the OFF position ( DC operation precautions: must DC operation guidelines:...
  • Page 7 Effects of Freezing Temperatures on Refrigerator Operation Refrigerator Care Checklist Defrosting Owner’s Manual 7...
  • Page 8 High temperatures can cause the inside surfaces of the refrigerator to warp or melt. Do not use pans of HOT water, a hair dryer, or any other high temperature devices to defrost the refrigerator. Do not use any hard or sharp objects to remove frost. Damage to the interior of the refrigerator can occur. Cleaning Door Sealing Owner’s Manual 8...
  • Page 9 Refrigerator Maintenance Checklist Refrigerator Storage Owner’s Manual 9...
  • Page 10 Refrigerator Maintenance The burner box cover can be hot. Wear gloves to avoid burns. Art02585). - yellow - Close the burner box door. ART 02585 - Turn the selector switch to the OFF position ( The burner box cover can be hot. Wear gloves to avoid burns. To avoid possible propane gas leaks, always use two wrenches to loosen and tighten the gas supply line at the refrigerator’s manual shut off valve.
  • Page 11 other objects. Remove the Refrigerator The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on the refrigerator, be careful and wear cut resistant gloves. To avoid possible propane gas leaks, always use two wrenches to loosen and tighten the gas supply line at the refrigerator’s manual shut off valve.

  • Page 12: Replacement Parts

    Reinstall the Refrigerator exhaust fumes can be present in the living area of the vehicle. The breathing of exhaust fumes can cause dizziness, nausea, and in extreme cases, death. 2. Put the AC power cord into the receptacle. The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on the refrigerator, be careful and wear cut resistant gloves.
  • Page 15 WARNING indoor cabin or other dwelling applications. This refrigerator must use only NORCOLD designed and approved outside air intake and exhaust ventilation for correct and safe operation. Any other ventilation could cause lethal combustion exhaust fumes and/or explosive propane gas fumes to be in the living area and/or to be below deck.
  • Page 16 Table of Contents Safety Awareness .....................................2 Safety Instructions ....................................2 ...............................3 ..................................4 Assemble the Enclosure ..................................4 Install the Lower and Upper Vents................................5 Connect the Electrical Components .................................6 Connect the 120 volts AC supply ..............................6 Connect the 12 volts DC supply (3-way models only) ........................6 Connect the Propane Gas Components..............................7 Connect the gas supply system ................................7 Examine the gas supply system for leaks ............................8...
  • Page 17 ANSI Z21.19 / CSA 1.4 standards for installation in mobile homes or recreational vehicles. The refrigerator must be installed in accordance with this “Installation Manual” in order for the Norcold limited warranty to be in effect. In addition, the installation must conform to the following, as applicable:...

  • Page 18: Assemble The Enclosure

    WARNING The completed installation must: - Make sure the living space is completely isolated from the combustion system of the refrigerator. and panel construction. factory warranty of the refrigerator. The bottom of the opening for the lower intake vent, which is also the service access door, must be even with or immediately below the performance: Bottom 0 inch min.

  • Page 19: Install The Lower And Upper Vents

    Install the Lower and Upper Vents 1. Using the following chart, decide which vents and rough opening (RO) sizes to use. Universal Upper 638406 5 5/16 in. 12 7/8 in. and Lower Vent 2. Install the lower intake vent (See ART02580): The lower intake vent is also the service access opening for the components on the rear of the refrigerator.

  • Page 20: Connect The Electrical Components

    CAUTION enclosure. Debris can cause a combustion hazard and prevent the refrigerator from operating correctly. Connect the Electrical Components AC Operation 120 volts AC voltage (108 volts min. - 132 volts max.) Current Draw 1.4 Amps at 110 Volts AC 1.5 Amps at 120 Volts AC DC Operation (3-way and/or fan models only) 12 volts DC voltage...

  • Page 21: Connect The Propane Gas Components

    - If the distance is 0 - 20 feet, use a minimum of 12 AWG wire and a maximum 20 amp fuse. - If the distance is more than 20 feet, use a minimum 10 AWG wire and a maximum 30 amp fuse. - If the wire size is larger than the min.

  • Page 22: Examine The Gas Supply System For Leaks

    and abrasion. - To prevent vibration and abrasion, make sure that the gas supply line is not against anything in the enclosure. Examine the gas supply system for leaks: WARNING Use a leak detecting solution to examine the gas supply line and all propane gas connections for leaks. If you use compressed air for the test: the refrigerator before the test.

  • Page 23: Installation Options

    Installation Options Install the decorative door panel: The decorative panels must be 3/16 inch or less in thickness. NOTICE - Make a decorative door panel [38] that is 18.45 inches high x 19.56 inches wide (See Art00977). - Push the decorative door panel into the slots [157] of the door end caps [158]. - Push each panel retainer [37] into the slot on the edge of the door.
  • Page 24 PARTS LIST N180 SERIES N180.3 PART NO. 638718 NORCOLD 11/6/2018...
  • Page 25 CABINET AREA (FRONT VIEW) - N180 SERIES ART 02577 Part # N180.3 636252 CONTROL PANEL ASSY 627677 LATCH- DOOR /BLACK (USE 638583) 638583 KIT SERVICE DOOR LATCH REPLACMENT 636017 SHELF-WIRE 619242 BIN-DOOR 636150 KNOB CONTROL 623899 HINGE PIN TOP (USE 638780) 638780 KIT SERVICE UPPER HINGE PIN REPLACEMENT 638286...
  • Page 26 CABINET ASSEMBLY - SIDE VIEW N180 SERIES ART 02576 Part # N180.3 638387 FIN ASSY (USE 638622) 638622 KIT SERVICE FIN ASSY REPLACEMENT 61728722 CLIP-FIN 636212 BURNER TUBE (USE 638599) 638599 KIT-SERVICE GAS VALVE BURNER TUBE REPLACEMENT 638624 KIT-SERVICE FLU BAFFLE WIRE 638569 KIT-SERVICE FLU BAFFLE 630806...
  • Page 27 CONTROL PANEL ASSEMBLY AREA - N180 SERIES ART 02586 PARTS LIST N180 SERIES PAGE 4...
  • Page 28 CONTROL PANEL ASSEMBLY AREA - N180 SERIES Part # N180.3 636252 CONTROL PANEL ASSY (USE 638601) 638601 KIT SERVICE CONTROL PANEL REPLACEMENT 636135 CONTROL PANEL (USE 638593) 638593 KIT SERVICE CONTROL PANEL REPLACEMENT 638575 KIT-SERVICE SELECTOR SWITCH 638585 KIT-SERVICE SPARK IGNITOR 636259 BRACKET-GROUNDING (USE 638603) 638603...
  • Page 29 DOOR ASSEMBLY - N180 SERIES ART 02575 Part # N180.3 638298 DOOR ASSY-CABINET BLACK (USE 638616) 638616 KIT SERVICE DOOR ASSY REPALCEMENT 638274 PANEL RETAINER-BLACK- (USE 638611) 638611 KIT SERV PANEL RETAINER REPLACEMENT 627571 LATCH PLATE-DOOR/BLACK (USE 638579) 638579 KIT SERVICE DOOR LATCH PLATE REPLACEMENT 638581 KIT-SERVICE DOOR FILLER PLATE-BLK 638726...
  • Page 30 BURNER ASSEMBLY AREA - N180 SERIES ART 02578 Part # N180.3 638350 BASE-BURNER BOX (USE 638620) 638620 KIT SERVICE BURNER BOX BASE 638458 BURNER BOX COVER ASSY(USE 638626) 638626 KIT SERVICE BURNER COVER REPLACEMENT 61606522 BUSHING- OPEN/ CLOSED 1/2” 638573 KIT-SERVICE SPARK ELECTRODE 638605 KIT-SERVICE THERMOCOUPLE(USE 638607)
