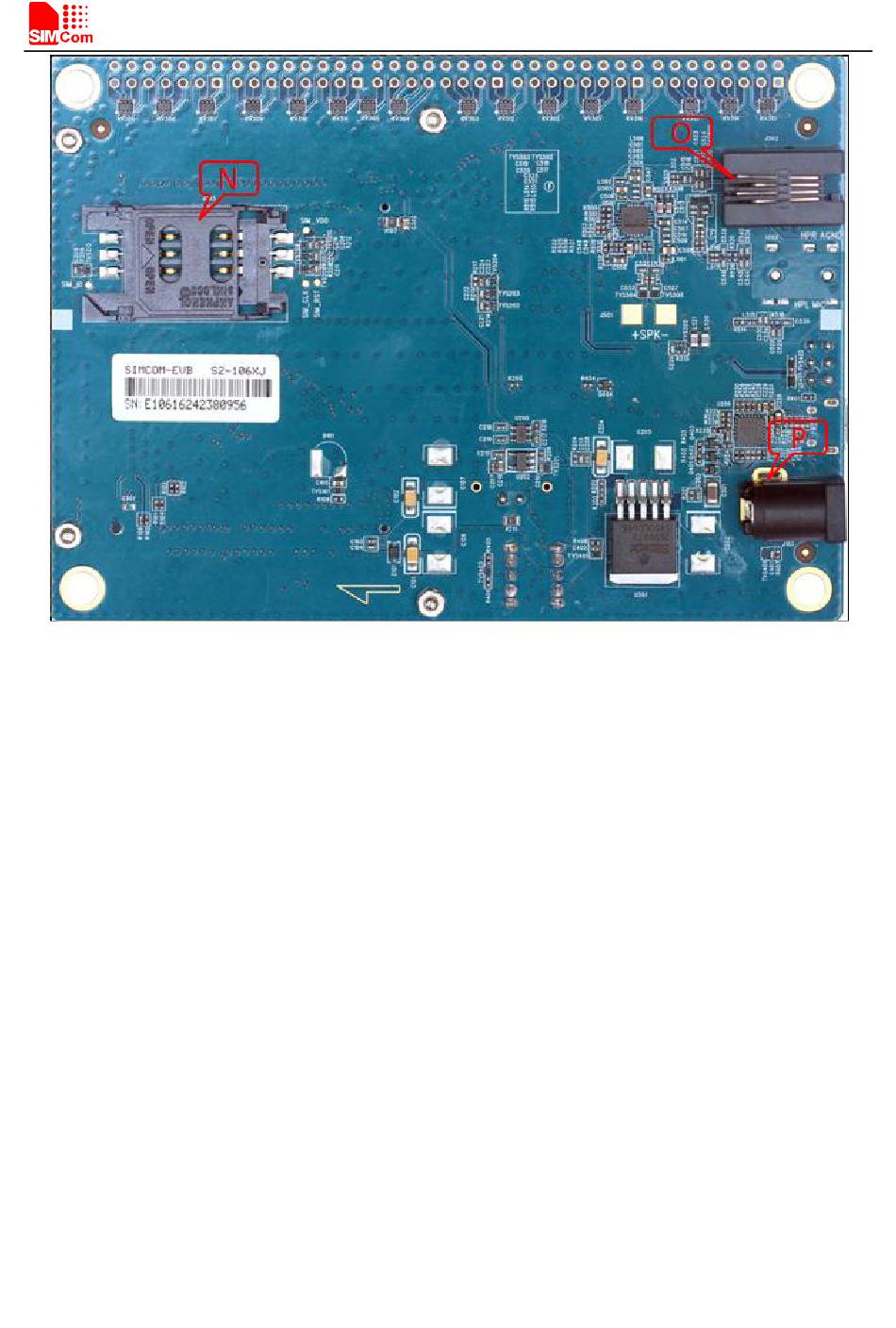

Figure2: SIMCOM-EVB BOTTOM view
A: USB jack
B: Powerkey
C: Reset
D: Power switch
E: RF switch
F: TE connector
G: TE connector
H: Main SIMcard holder
I:
LED indicator for Netlight
J:
LED indicator for Power
K: Test Point
L: Studs and nuts
M: mark of TE Module direction
N: Second SIM card holder
O: Handset jack
P: Power jack
SIM7500_EVB Kit_User Guide_V1.01
7
2017-12-12
