3.4 USB Interface
EVB USB interface (A) actually is USB-to-UART port which could be imaged to two virtual ports.

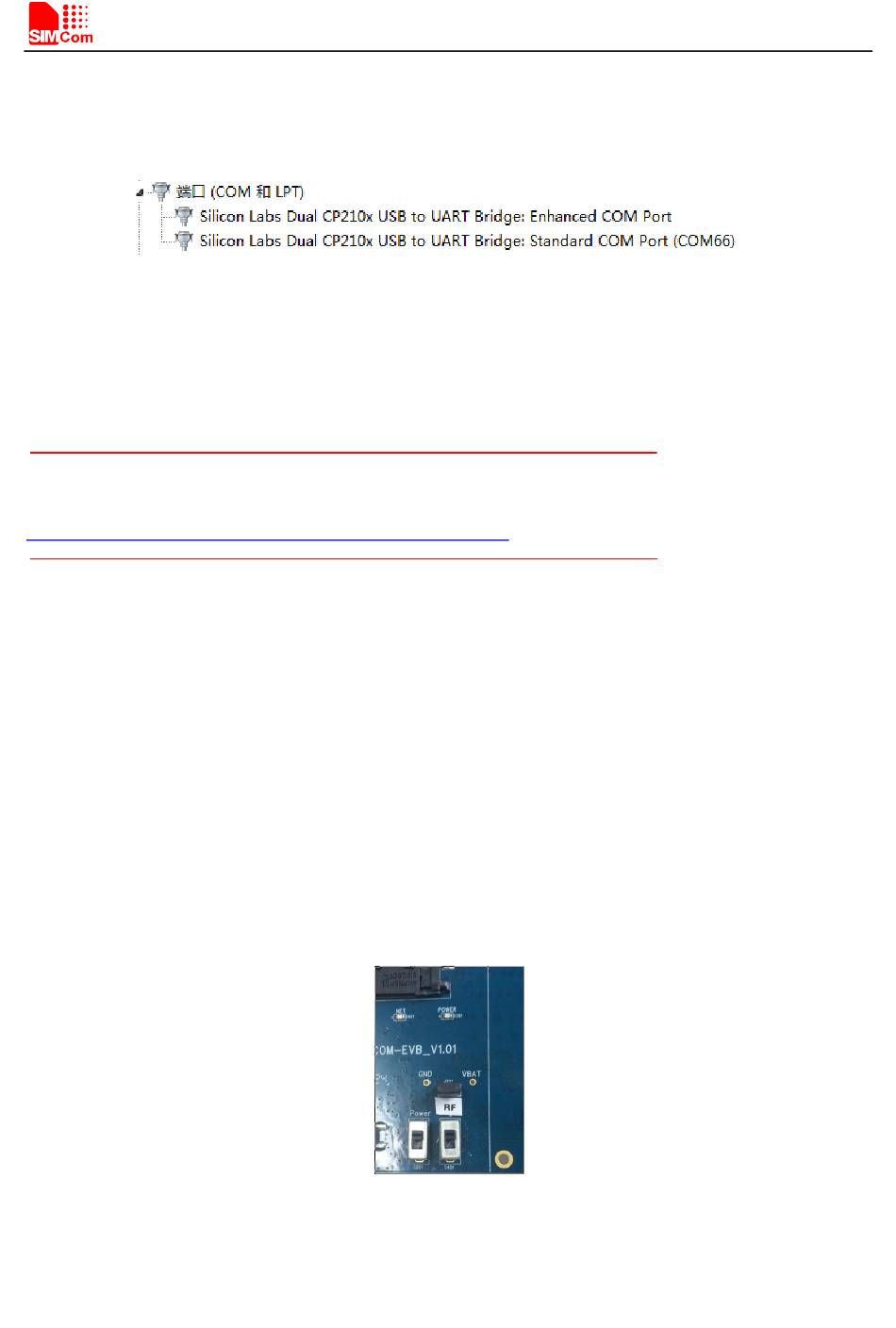

Figure 5: Virtual serial port
Enhanced COM port: AT communication
Standard COM port: Debug (used for 2G module only)
Notice
CP2105 driver is available here:
http://www.silabs.com/products/mcu/Pages/SoftwareDownloads.aspx
3.5 Power switch
After 5V Adapter is inserted ,switch S201 on, then power LED (D201) will be solid on.
3.6 POWER_ON Button
After giving power to EVB,press the POWER_ON button for more than 1.5 seconds, the module will be
turned on, the network LED light (D401) will blink.
3.7 RF switch
Figure 6: RF switch
