Wireless Remote Access Microphone
To connect the SSM-72H (RAM4X), the SCU-30 Wireless Access Point
firmware must be Ver. 2.00.00 or later.
The RAM4X (SSM-72H) allows remote control for all functions (Except "SPEAKER
SELECT" in the CONFIGURATION SETUP MENU), of the enabled Standard
Horizon fixed mount VHF radio. The full dot matrix display and programmable keys
make operations quick and easy. Additional features include a Water activated
Emergency Strobe Light, a MOB (Man Over-Board) function, and all DSC functions
including Distress Signaling. Utilizing the optional SCU-30 Wireless Access Point,
up to four RAM4X (SSM-72H) Wireless Remote Access Microphones may be
connected to a fixed mount VHF radio.

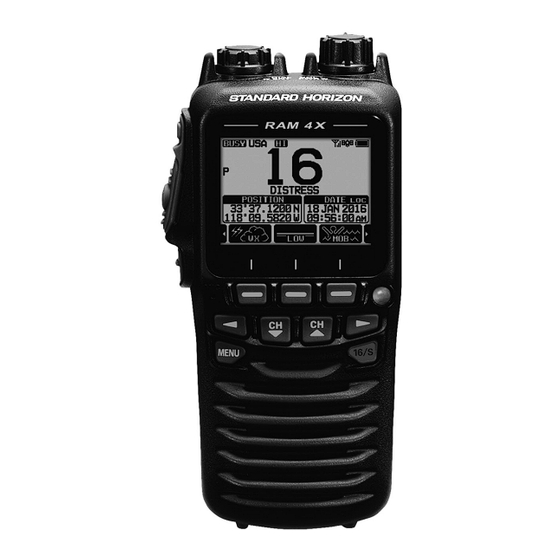

RAM4X ( SSM-72H )
NOTE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAM4X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Standard Horizon RAM4X

Summary of Contents for Standard Horizon RAM4X

  • Page 1 To connect the SSM-72H (RAM4X), the SCU-30 Wireless Access Point firmware must be Ver. 2.00.00 or later. The RAM4X (SSM-72H) allows remote control for all functions (Except “SPEAKER SELECT” in the CONFIGURATION SETUP MENU), of the enabled Standard Horizon fixed mount VHF radio. The full dot matrix display and programmable keys make operations quick and easy.

  • Page 2: Safety Precautions (Be Sure To Read)

    Owner’s Manual The details for the installation and operation of the RAM4X ( SSM-72H ) are includ- ed in the Owner’s Manual of the compatible fixed mount VHF radio, or the Owner’s Manual can be downloaded at www.standardhorizon.com. Safety Precautions (Be Sure to Read) Be sure to read the safety precautions printed in the Operating Manual of the com- patible fixed mount VHF radio to use this product safely.

  • Page 3: Front And Rear Panel

    ⑨ ⑭ ① Power/VOL knob Press and hold this knob to turn the RAM4X remote microphone ON or OFF. Turn the knob to adjust the speaker volume. ② DIAL/ENT knob While the normal operating screen is displayed, rotate the DIAL/ENT knob to select the desired channel.
  • Page 4 When the [STROBE] soft key is pressed, the Strobe LED will light or flash repeatedly. When the RAM4X comes in contact with water, the Strobe LED will light or flash to assist in locating the RAM4X in low light conditions.

  • Page 5: Optional Accessories

    NOTES • The RAM4X is only floating / submersible * when the USB jack is properly sealed with jack cover. *(IPX8 Specification for submersibility: 4.92 ft. (1.5 m) for 30 minutes.) • Make sure that there is no dust, dirt or crack on the jack or the rubber gasket.

  • Page 6: Battery Safety

    CAUTION Waterproof and floating features of the RAM4X are assured only when the USB jack cover is locked completely. The SAD-17 or SDD-14 is NOT designed to be waterproof. Charge the radio in a dry location. Built-in Lithium-ion Battery Capacity...

  • Page 7: Battery Life Information

    WARNING If the RAM4X will be unused for a long period of time, be sure to fully charge the built-in battery before storing it. When the RAM4X is stored for an extended period, recharge the built-in battery every six months to prevent it from over-discharging.
  • Page 8 WI-FI SETUP screen (see Page 6 or Page 7) for the transceiver setup. WI-FI SETUP MENU of the RAM4X If the MENU key on the RAM4X is pressed while searching for SCU-30 after NOTE: turning on RAM4X, the WI-FI SETUP screen will be called directly.
  • Page 9 CONNECTION This menu item displays the information of the SCU-30 and the RAM4X that are previ- ously connected, and can be connected to the SCU-30. ]  “SETUP”  “WI-FI SETUP”  “CONNECTION” (RAM4X) The information of the SCU-30 is displayed. The “...
  • Page 10 TERMINAL CONNECTION This menu item displays the information of the RAM4X that the SCU-30 previously connected. [ MENU ] (Press)  “SETUP”  “WI-FI SETUP”  “TERMINAL CONNECTION”...

  • Page 11: Configuration Setup

    Up to four RAM4X can be connected simultaneously to the transceiver. Configuration Setup RAM4X operation is same as the enabled radio. This makes operation of the radio and RAM4X microphone similar and much easier. The only difference is that the following three items are added to CONFIGURATION SETUP: LAMP This menu selection is used to setup the illumination time of the display and keypad.

  • Page 12: Specifications

    When the [STROBE] soft key is pressed, the Strobe LED will light or flash repeatedly. When the RAM4X comes in contact with water, the Strobe LED will light or flash to as- sist in locating the RAM4X in low light conditions.

  • Page 13: Fcc Notice

    Unauthorized changes or modifications to this equipment may void compliance with FCC Rules. Any change or modification must be approved in writing by STANDARD HORIZON. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 14 Declaration of Conformity Type of Equipment: RAM4X Wireless Remote Access Microphone Brand Name: YAESU Model Number: SSM-72H Manufacturer: YAESU MUSEN CO., LTD. Address of Manufacturer: Tennozu Parkside Building, 2-5-8 Higashi-Shinagawa, Shinagawa-ku,Tokyo 140-0002 Japan This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions;...
  • Page 16 Copyright 2020 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan 2005N-AS YAESU USA Printed in Japan 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
