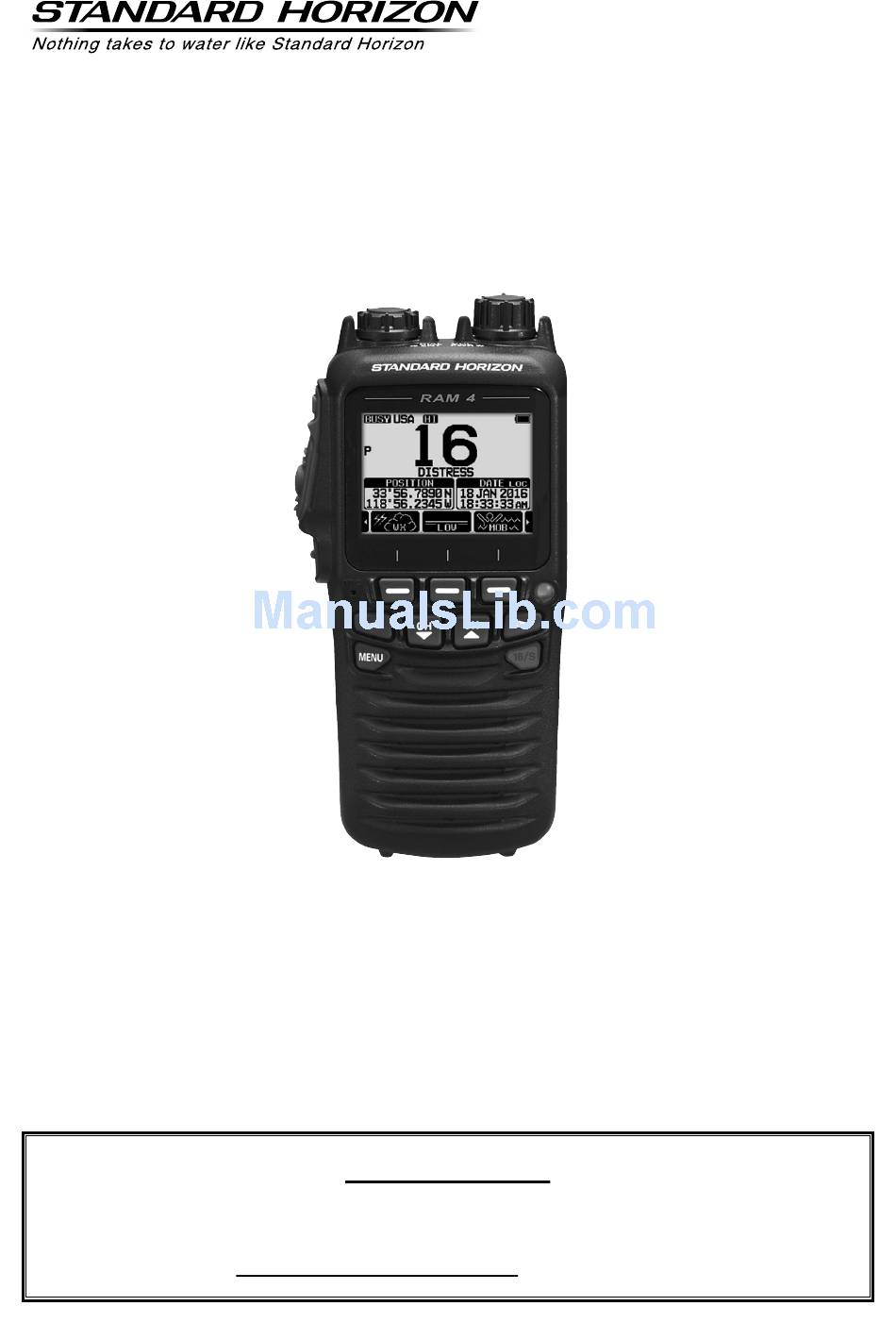

Wireless Remote Station Microphone RAM4W
The RAM4W (SSM-71H) allows you to remotely control all functions of the
enabled Standard Horizon fixed mount VHF radio. The full dot matrix display
and programmable keys make operation simple and fast. Additional features
include turning the radio on/off and all DSC functions including Distress. The
four RAM4W (SSM-71H) can be connected to fixed mount VHF radio with the
optional SCU-30 RAM4W Wireless Access Point. The RAM4W (SSM-71H) is
backed by an industry leading 3-years waterproof warranty.
The details of the installation and operation of the RAM4W ( SSM-71H ) is
included in the owner's manual of the compatible fixed mount radio, or it can
be downloaded at www.standardhorizon.com.
SSM-71H
Owner's Manual
Application for FCC / IC
FCC ID: K660A290X10 / IC: 511B-0A290X10
Advertisement
Table of Contents
Related Manuals for Standard Horizon SSM-71H
Summary of Contents for Standard Horizon SSM-71H
- Page 1 3-years waterproof warranty. Owner’s Manual The details of the installation and operation of the RAM4W ( SSM-71H ) is included in the owner’s manual of the compatible fixed mount radio, or it can be downloaded at www.standardhorizon.com.
-
Page 2: Front And Rear Panel
Press this key to cancel a menu selection. Press and hold this key to activate the key lock function. Press and hold this key again to deactivate the key lock function. ⑥ Microphone When spoken into transmits your voice with reduction of background noise, using Clear Voice Noise Reduction Technology. SSM-71H Instruction Manual... - Page 3 This key is used to send a DSC distress call. ⑯ USB jack Use the micro USB type B jack for SSM-71H (RAM4W) battery charge. Note: When the DATA jack is securely covered with rubber cap, the SSM-71H meets the waterproofing performance. SSM-71H Instruction Manual...
-
Page 4: Optional Accessories
4. If the connection is correct, the RAM4W’s LCD display will show the battery charging icon. 5. A fully-discharged RAM4W will be charged completely in approximately 4 hours. When charging is completed, the battery charging icon will disappear. SSM-71H Instruction Manual... -
Page 5: Battery Safety
Battery packs should be charged only in non-hazardous environments. Use only STANDARD HORIZON-approved batteries. Use only a STANDARD HORIZON-approved charger. The use of any other charger may cause permanent damage to the battery. Follow charging instructions provided with the chargers. - Page 6 2. Press and hold [16/S] key and turn on the RAM4W. 3. Press and hold [16/S] key and turn on the transceiver. “Searching ...” appears on the LCD. 4. When pairing is completed, the display will appears “Complited”. SSM-71H Instruction Manual...
-
Page 7: Fcc Notice
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. SSM-71H Instruction Manual... -
Page 8: Specifications
1.8” x 0.9” (45 x 23 mm) Display Resolution: 222 x 162 dots Dimensions (WxHxD): 2.5” x 5.3” x 1.3” (63 x 135 x 32.5 mm) Weight (Approx): 7.23 oz (205 g) Symbol placed on the equipment Direct Current SSM-71H Instruction Manual... - Page 9 Electronic and Electrical Equipment should be recycled at a facility capable of handling these items and their waste byproducts. Please contact a local equipment supplier representative or service center for information about the waste collection system in your country. SSM-71H Instruction Manual...
- Page 10 Application for FCC / IC FCC ID: K660A290X10 / IC: 511B-0A290X10 Copyright 2017 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan Printed in Japan...
