Carrier WeatherExpert 48LC Series Service And Maintenance Instructions

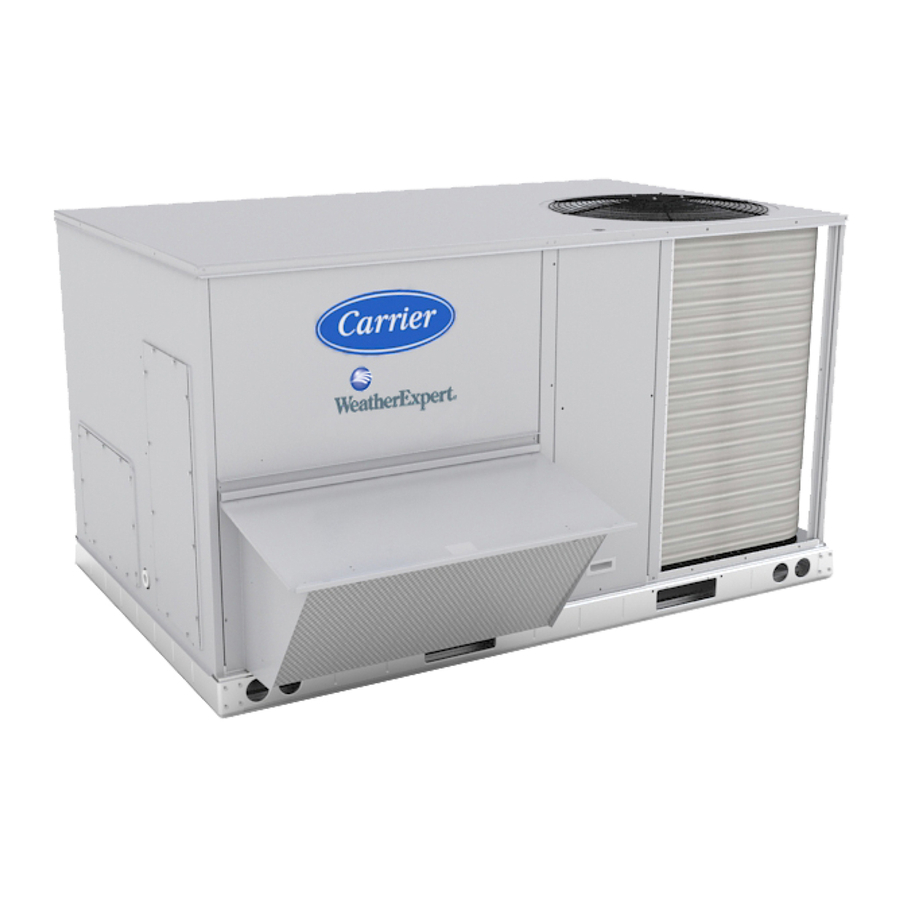

Single package rooftop gas heating/electric cooling unit
Hide thumbs Also See for WeatherExpert 48LC Series:
Table of Contents

Advertisement

Quick Links

Service and Maintenance Instructions

TABLE OF CONTENTS

SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 1
UNIT ARRANGEMENT AND ACCESS . . . . . . . . . . . . 3
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 3
Seasonal Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 3
SUPPLY FAN (BLOWER) SECTION . . . . . . . . . . . . . . 4
Supply Fan (Belt-Drive) . . . . . . . . . . . . . . . . . . . . . . . 4
COOLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Evaporator Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Filter Drier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Condenser-Fan Adjustment . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting Cooling System . . . . . . . . . . . . . . . 8
PURON® (R-410A) REFRIGERANT . . . . . . . . . . . . . 10
Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 10
COOLING CHARGING CHARTS . . . . . . . . . . . . . . . . 11
TXV Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CONVENIENCE OUTLETS . . . . . . . . . . . . . . . . . . . . 14
Non-Powered Type . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Unit-Powered Type . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SMOKE DETECTORS . . . . . . . . . . . . . . . . . . . . . . . . 15
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Smoke Detector Locations . . . . . . . . . . . . . . . . . . . . 16
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Sensor and Controller Tests . . . . . . . . . . . . . . . . . . 18
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
PROTECTIVE DEVICES . . . . . . . . . . . . . . . . . . . . . . 21
Compressor Protection . . . . . . . . . . . . . . . . . . . . . . 21
Relief Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Circuit, 24-V . . . . . . . . . . . . . . . . . . . . . . . . . 21
GAS HEATING SYSTEM . . . . . . . . . . . . . . . . . . . . . . 21
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fuel Types and Pressures . . . . . . . . . . . . . . . . . . . . 22
Flue Gas Passageways . . . . . . . . . . . . . . . . . . . . . . . 23
Combustion-Air Blower . . . . . . . . . . . . . . . . . . . . . . 23
Burners and Igniters . . . . . . . . . . . . . . . . . . . . . . . . . 24
Burner Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53480279-01
Printed in U.S.A.
Form 48LC-4-6-02SM
WeatherExpert
Single Package Rooftop
Gas Heating/Electric Cooling Unit
with Puron
Orifice Replacement . . . . . . . . . . . . . . . . . . . . . . . . .26
Troubleshooting Heating System . . . . . . . . . . . . . . .26
PRE-START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
START-UP, GENERAL . . . . . . . . . . . . . . . . . . . . . . . .32
Unit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Return-Air Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Outdoor-Air Inlet Screens . . . . . . . . . . . . . . . . . . . . .33
Compressor Mounting . . . . . . . . . . . . . . . . . . . . . . . .33
Internal Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Refrigerant Service Ports . . . . . . . . . . . . . . . . . . . . . 33
Compressor Rotation . . . . . . . . . . . . . . . . . . . . . . . .33
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Main Burners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Ventilation (Continuous Fan) . . . . . . . . . . . . . . . . . .33
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . .33
RTU Open Control System . . . . . . . . . . . . . . . . . . . .35
SystemVu™ (Factory Option) . . . . . . . . . . . . . . . . . . 35
Economi$er® X (Factory Option) . . . . . . . . . . . . . . .35
Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Start Up with Assistant . . . . . . . . . . . . . . . . . . . . . . .46
VFD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Fan Speed Relay Board . . . . . . . . . . . . . . . . . . . . . . .58
Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . .58
Variable Frequency Drive . . . . . . . . . . . . . . . . . . . . . 58
FASTENER TORQUE VALUES . . . . . . . . . . . . . . . . .60
APPENDIX A - MODEL NUMBER
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . .61
APPENDIX B - PHYSICAL DATA . . . . . . . . . . . . . . .62
APPENDIX C - FAN DATA . . . . . . . . . . . . . . . . . . . .63
APPENDIX D - WIRING DIAGRAMS . . . . . . . . . . . .71
START-UP CHECKLIST . . . . . . . . . . . . . . . . . . . . .CL-1

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can be
hazardous due to system pressure and electrical components. Only
trained and qualified service personnel should install, repair, or
service air-conditioning equipment.
Untrained personnel can perform basic maintenance functions of
cleaning coils and filters and replacing filters. All other operations
should be performed by trained service personnel. When working
on air-conditioning equipment, observe precautions in the
literature, tags and labels attached to the unit, and other safety
precautions that may apply.
Follow all safety codes, including ANSI (American National
Standards Institute) Z223.1. Wear safety glasses and work gloves.
Pg 1
48LC 04-06
®
(R-410A) Refrigerant
®
2-2020
Replaces: 48LC-4-6-01SM
