VENT-FREE NATURAL GAS GARAGE HEATER
OWNER'S OPERATION AND INSTALLATION MANUAL
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
Model: VGN30
Save this manual for future reference.
WARNING
: Improper installation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manual for correct installation and
operational procedures. For assis-
tance or additional information
consult a qualified installer, ser-
vice agency, or the gas supplier.
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGN30 and is the answer not in the manual?

Questions and answers

Randy Thomas
January 25, 2025

I have a Vanguard VGN30 Model Gas garage heater and want to use LP Gas do I need anything besides just hooking it up and running it on Propane Gas

Summary of Contents for Vanguard VGN30

  • Page 1 — Installation and service must be per- formed by a qualified installer, service agency, or the gas supplier. Save this manual for future reference. Model: VGN30 WARNING adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures.
  • Page 2: Table Of Contents

    CONTENTS SAFETY INFORMATION SECTION Safety Information ... 2 Product Identification ... 4 Local Codes ... 4 Unpacking ... 4 Product Features ... 4 Installing To Wall ... 5 Connecting To Gas Supply ... 10 Checking Gas Connections ... 11 Operating Heater ... 13 Inspecting Burner ...
  • Page 3 SAFETY INFORMATION 1. Use only natural gas. Do not convert heater to use different fuel type. Continued 2. If you smell gas 3. Never install the heater 4. Open window or garage door to admit fresh, outside air when using heater. 5.
  • Page 4: Product Identification

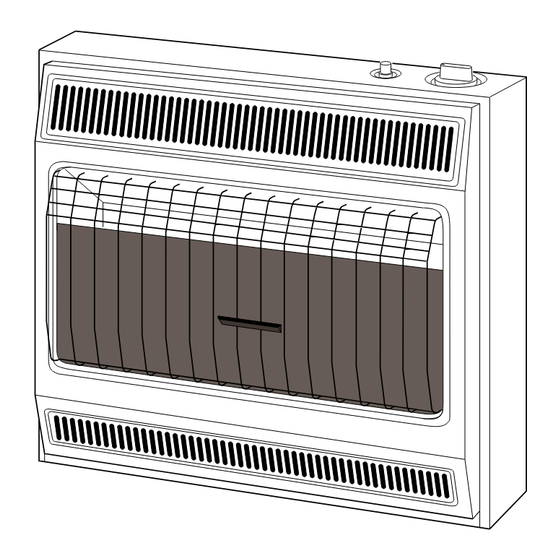

    PRODUCT IDENTIFICATION LOCAL CODES UNPACKING PRODUCT FEATURES Front Panel Figure 1 - Vent-Free Natural Gas Garage Heater Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of National Gas Code ANSI Z223.1, also known as NFPA 54*.
