DCS2501 Gateway (Internet)
Application

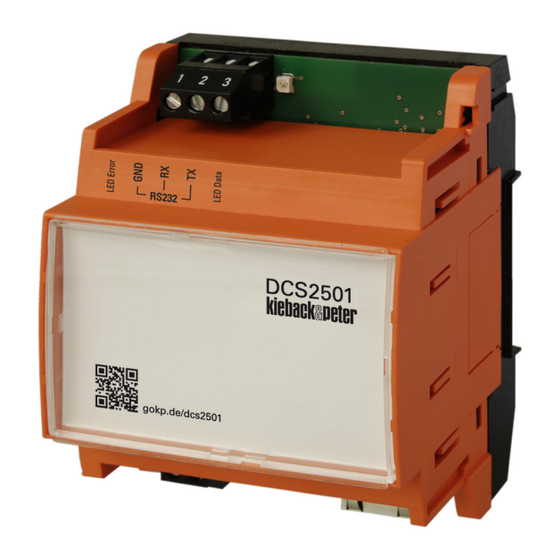

The DCS2501 is an Ethernet gateway in System 3000. It allows you to
connect to a remote BMS via the Internet.
The DCS2501 features a P90 interface for direct communication with a
DDC3000, an HRP or an LRP.
The DCS2501 enables you to replace an existing modem connection
with an Internet connection.
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Compatibility ........................................................................................................................................................3
Dimensions ..........................................................................................................................................................3
Connection...........................................................................................................................................................4
Mounting ................................................................................................................................................................5
Removal.................................................................................................................................................................5
Indicators and Controls..........................................................................................................................................6
LEDs ....................................................................................................................................................................6
Reset button ........................................................................................................................................................7
Commissioning ......................................................................................................................................................8
Configuring the DCS2501....................................................................................................................................9
Configuring the controller...................................................................................................................................11
Configuring the BMS..........................................................................................................................................12
Preparation ..........................................................................................................................................................13
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 2.50-12.501-01-EN
DCS2501
Page
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kieback&Peter DCS2501
Summary of Contents for Kieback&Peter DCS2501
-
Page 1: Table Of Contents
DCS2501 DCS2501 Gateway (Internet) Application The DCS2501 is an Ethernet gateway in System 3000. It allows you to connect to a remote BMS via the Internet. The DCS2501 features a P90 interface for direct communication with a DDC3000, an HRP or an LRP. -
Page 2: Important Information Regarding Product Safety
Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "DCS2501". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer. -
Page 3: Item
89/336/EWG electromagnetic compatibility 73/23/EWG Low Voltage Directive Weight 130 g Dimensions WxHxD mm 71.8 x 90 x 60, 4 horizontal pitches Compatibility The DCS2501 is compatible with BMS version 9.13 or higher. Lower BMS versions are not supported. Page 3 / 14... -
Page 4: Connection
Datasheet 2.50-12.501-01-EN Issue 2014-05-20 DCS2501 Product Description Dimensions 71,8 60,0 Connection DDC3002 DDC3010 DDC3003 DDC3100 DDC3200 DDC3300 HRP/LRP DDC3035 RS232 RS232 RS232 24V~ RJ45 24V= Ethernet 12V= 13 14 12V= 24V= 24V~ P90 uses RS232 as its bus. RS232 is specified in ANSI EIA/TIA-232-F. -
Page 5: Mounting
Issue 2014-05-20 Datasheet 2.50-12.501-01-EN Product Description DCS2501 Mounting NOTICE Mount or remove only when power is switched off. EN 50022 Removal NOTICE Mount or remove only when power is switched off. Page 5 / 14... -
Page 6: Indicators And Controls
Datasheet 2.50-12.501-01-EN Issue 2014-05-20 DCS2501 Product Description Indicators and Controls LEDs LED RS232: Error LED RS232: Data LED Power LED Ethernet Data LED Ethernet Link Color Signal Meaning "LED RS232: Error" (1) Remain lit No P90 connection "LED RS232: Data" (2) -
Page 7: Reset Button
DCS2501 Reset button Pressing the reset button can either restore the device to its initial state or restart the DCS2501. Briefly pressing the reset button restarts the DCS2501. The settings of the DCS2501 are maintained. Pressing the reset button for at least 3 seconds performs a reset. All settings are deleted and the initial state is restored. -
Page 8: Commissioning
Commissioning Information for the network administrator If the DCS2501 and the BMS communicate via the Internet, the DCS2501 requires a public IP address at which it can be reached by the BMS. The DCS2501and the BMS can also communicate via NAT if port forwarding is activated for all ports. -
Page 9: Configuring The Dcs2501
► Ensure that the DCS2501 and your computer are connected to the power supply and turned on. ► Open a web browser on the computer and call up the IP address of the DCS2501. In the default settings: http://192.168.1.1 ►... - Page 10 For configuration via NAT, the WAN IP address of the BMS’s router must be used in the device settings of the DCS2501. For configuration via NAT, the WAN IP address of the DCS2501’s router must be used in the device settings of the BMS.
-
Page 11: Configuring The Controller
DCS2501 Operating mode The following settings can be chosen as the operating mode: ■ BMS active – BMS active means that the BMS establishes the connection to the DCS2501. – The DCS2501requires a fixed IP address. ■ DCS aktive –... -
Page 12: Configuring The Bms
DCS2501 Product Description Configuring the BMS ► Open the “Device configuration” menu on the BMS. ► Add a new device or change the existing device DCS2501. ► Enter the settings. ► See table "Planning template DCS2501", on page 13 Type: Subtype: □... -
Page 13: Preparation
□ Deactivated IP configuration □ Manual □ DHCP - Manual IP address: Network mask: Gateway: Host name: DDC3000 / HRP / Baud rate: IP address of the BMS: Tab. 1: Planning template DCS2501 Page 13 / 14... - Page 14 Datasheet 2.50-12.501-01-EN Issue 2014-05-20 DCS2501 Product Description Page 14 / 14...
