Cocraft HL-XW20 Instruction Manual

Hose Reel
Art.no 31-8266, 31-8267
Model HL-XW20, HL-XW40
Please read the entire instruction manual before using
the product and then save it for future reference.
We reserve the right for any errors in text or images
and any necessary changes made to technical data.
In the event of technical problems or other queries,
please contact our Customer Services.

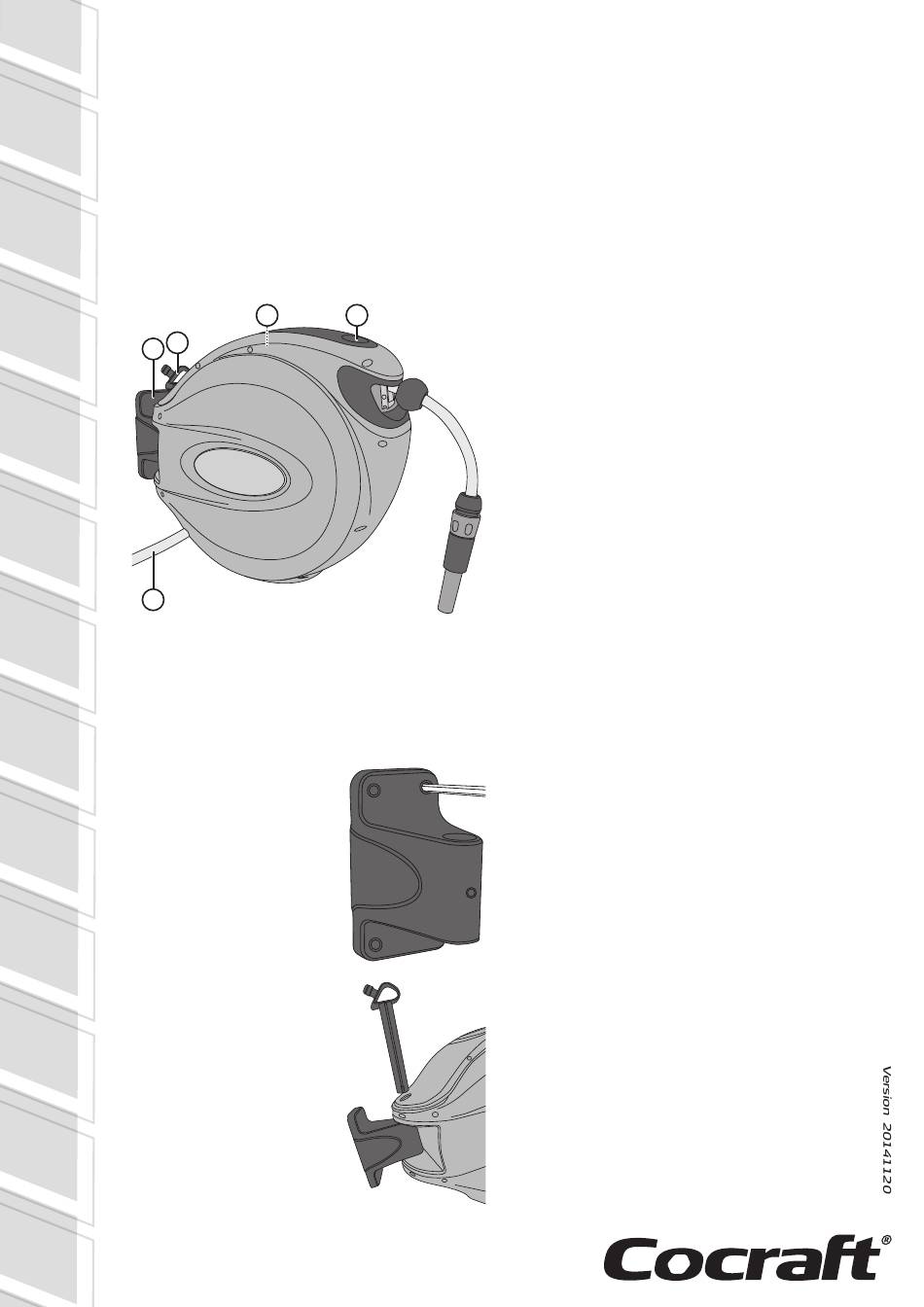

Product description
4
3
2
1
1. Water supply feeder hose
2. Wall bracket
3. Pivot/locking pin
4. Carrying handle
5. Inspection hatch
Installation
1. Using the wall bracket
as a guide, mark
out the position of
the mounting holes.
Note: Make sure that there
are no water pipes or electrical
cables hidden in the wall
where you intend to drill.
2. Screw the bracket to the wall
using suitable screws and
wall plugs for the wall
material.
3. Place the hose reel onto
the bracket and insert
the locking pin. The locking
pin has a holder for
the feeder hose when
the hose is not connected
to a tap.
4. Connect the feeder hose to
your tap.
GREAT BRITAIN • CUSTOMER SERVICE
tel. 020 8247 9300 web: www.clasohlson.co.uk
e-mail: customerservice@clasohlson.co.uk
Operating instructions
1. The reel is equipped with a brake to help lock
the hose at the desired length. Pull the hose out of
the reel and carefully release some tension to activate
the hose brake.
2. To rewind the hose, pull it out about 20 cm to
disengage the brake and then let the hose rewind.
To avoid damage to the reel, keep hold of the hose
while it rewinds.
Note:
The hose must not be under pressure when it is being
rewound; open the nozzle, turn off the water and let all
5
the water run out before rewinding the hose.
Care, maintenance and storage
• The exterior of the hose reel can be cleaned by wiping
with a damp cloth. Use only mild cleaning agents,
never solvents or corrosive chemicals.
• Open the inspection hatch from time to time and
remove any leaves or debris that the hose may have
picked up on its way into the reel.
Note:
Protect the hose reel from frost. Always store your hose
reel away before the first frost sets in, make sure that
the hose has been drained of water before putting it away.
Disposal
This product should be disposed of in accordance with
local regulations. If you are unsure how to proceed,
contact your local council.
Specifications
31-8266
Hose
Hose length 20 m
31-8267
Hose
Hose length 40 m
Ø ½"/1.3 cm
Ø ½"/1.3 cm
